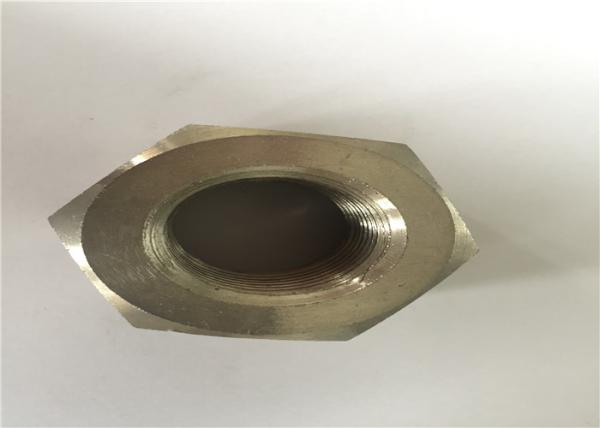

M2 - M64 Incoloy 825 Fasteners , Hot Press Heavy Hex Nut ASME B18.2.2
M2 - M64 Incoloy 825 Fasteners , Hot Press Heavy Hex Nut ASME B18.2.2
M2 - M64 Incoloy 825 Fasteners , Hot Press Heavy Hex Nut ASME B18.2.2
M2 - M64 Incoloy 825 Fasteners , Hot Press Heavy Hex Nut ASME B18.2.2
M2 - M64 Incoloy 825 Fasteners , Hot Press Heavy Hex Nut ASME B18.2.2
M2 - M64 Incoloy 825 Fasteners , Hot Press Heavy Hex Nut ASME B18.2.2
Specifications
Brand Name :
HT
Model Number :
W.Nr2.4858 N08825 Alloy 825 Incoloy 825
Certification :
ISO, SGS, BV, TUV
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 sets per month
Delivery Time :
20-25 days
Packaging Details :
carton case+wooden case or wooden pallet or as per the clients' request
Product Name :
hot press W.Nr2.4858 N08825 Alloy 825 Incoloy 825 heavy hex nut/jam nut ASME B18.2.2
Size :
M2-M64
Surface :
cold galvanized, PTFE, Zinc Nickel, Plain
Producing standard :
DIN, ASME
Type :
bolt nut washer thread rod
Package :
carton+wooden case
Material :
nickel alloy steel
Producing time :
15~20 days
Description

hot press W.Nr2.4858 N08825 Alloy 825 Incoloy 825 heavy hex nut/jam nut ASME B18.2.2

1. Incoloy Alloy 825 Nuts Specification

Material Specification Standards Size Length

Incoloy Alloy 825

IS

BS

ASTM

 ASTM B425 3 mm
to
200 mm		 M02 to M33

Incoloy Alloy 825 Nuts chemcial composition

Ni Cr Fe Mo Ti Al Si Cu Mn C B
MIN 38.0 1.5 - 2.5 0.6 - - 19.5 - - -
MAX 46.0 3.0 - 3.5 1.2 0.2 0.5 23.5 1.0 0.05 -

Incoloy Alloy 825 Nuts mechanical properties

Tensile (ksi) 85
.2% Yield (ksi) 30-35

Incoloy Alloy 825 Nuts Grade Designation

Alloy Common Name Related Specification
British European ASTM UNS
Alloy 825 Incoloy 825 ® BS 3076 NA16 2.4858 B425 N08825

2. Other types of Incoloy 825 nuts

Incoloy 825 Nuts Incoloy Alloy 825 Nuts
Incoloy 825 hex nuts Incoloy 825 heavy hex nuts Supplier
Incoloy 825 lock nut Exporter Incoloy 825 self locking nuts
Incoloy Alloy 825 nylon insert nut Incoloy 825 coupler nuts Manufacturer
Incoloy Alloy Square Nut Incoloy 825 Castle Nut
Incoloy 825 Flex Lock Nut Exporter Incoloy 825 Steel High Nut Stockist
Incoloy Acorn Nut Incoloy Locking Nuts Manufacturer
Incoloy 825 nylon insert nut ISO Certified Incoloy 825 coupler nuts
DIN 2.4858 K Lock Nut Manufacturer Incoloy UNS N08825 Serrated Flange Nut
Incoloy 825 Flange Lock Nut Incoloy 825 Nylon Lock Nut Exporter
Incoloy 825 Slotted Nut Supplier Incoloy 2 Way Lock Nut Distributor
Incoloy 825 Custom Nut Supplier Incoloy 825 Coupler Nuts
Incoloy Alloy Wing Nut Incoloy 825 T Nuts
Incoloy 825 hex nuts Incoloy 825 heavy hex nuts
Incoloy 825 lock nut Incoloy 825 self locking nuts

3. Incoloy 825 bolt nut washer stud screw specification

Thread METRIC, BSW, BSF, UNC, UNF or as required
Size M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36
Standard

DIN, ISO, JIS, GB, IS, BS, ASTM
ANSI – American National Standards Institute

  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Most use types of Hastelloy B3 washer Hastelloy Machine Washers,Lock Washer, Sealing Washer, Star Washers, Split Washer etc.
Packing In bulk: carton, pallet, small boxes, or customers’ request
Test Certificates

EN10204/3.1B

Raw material certificates

100% radiography test report

Third party inspection report, etc

4. Inconel 825 bolt nut washer stud delivery time:

  • If the items are available in stock, we take 2 days from the date of receipt of advance payment to clear the shipment and send it to port.
  • And in case the items are not available in stock, the time taken for manufacturing depends on the size, quantity and grade.
  • However we can claim the fact that we can compete with anyone in China on delivery time and most of the time our production is the least.
  • We have tied up with strong logistics partners in China which can undertake any type of shipping activities and make sure that there is no delay in shipment.

5. Incoloy 825 nut washer screw marking:

  • All our products will have complete marking details which are co-related to the test certificates we supply.
  • In case of orders for cut pieces of pipes, sheets or round bars, the marking is transferred from the product from which it is cut. In such cases we provide letter confirming the marking transfer and picture of the product from which it is cut.
