Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Specifications
Brand Name :
HT
Model Number :
Monel K-500 bolt nut stud washer
Certification :
ISO,BV,SGS, API
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
1000 pieces per month
Delivery Time :
30-35 days
Packaging Details :
carton+wooden case
Type :
Hex bolt(full thread, partial thread), threaded rod, U-bolt, Spring washer, hex nut, flat washer, spring washer
Size :
DIN STANDARD:M6-M100
Surface :
Cold/hot galvanized, PTFE, Zinc Nickel, Black coating, Plain
Description
Hot sale Alloy K-500 Monel K-500 N05500 2.4375 bolt nut stud washer as per DIN ASME ISO UNI standard
1.Monel K-500 bolt nut stud washer fasteners
Monel K-500 bolt Monel K-500 hex bolt Monel K-500 hex bolt partial thread
Monel K-500 hex bolt full threaded Monel K-500 nut Monel K-500 hex nut Monel K-500 nylon lock nut Monel K-500 square nut Monel K-500 stud bolt Monel K-500 full threaded stud bolt Monel K-500 flat washer Monel K-500 plain washer Monel K-500 spring washer Monel K-500 spring lock washer
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
2.Monel K-500 bolt nut stud washer specification
Type Hex bolt(full thread, partial thread), threaded rod, U-bolt, Spring washer, hex nut, flat washer, spring washer
Size

DIN STANDARD:M6-M100

ASME STANDARD:1/4”-2 1/2”
Surface Cold/hot galvanized, PTFE, Zinc Nickel, Black coating, Plain
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
3.Types of Monel K-500 bolt nut washer stud
Monel K-500 bolt

Monel K-500 bolt

Monel K-500 hex bolt

UNS N05500 bolt

WERKSTOFF NR.2.4375 hex bolt partial thread

Alloy K-500 full thread hex bolt
Monel K-500 nut

Monel K-500 nut

UNS N05500 hex nut

2.4375 nylon nut lock

Alloy K-500 hex nut coarse thread
Monel K-500 stud

Monel K-500 stud bolt

DIN 2.4375 full thread stud bolt

Alloy K-500
Monel K-500 washer

Monel K-500 washer

Alloy K-500 plain washer

WERKSTOFF NR.2.4375 flat washer

UNS N05500 spring washer

Monel K-500 spring lock washer
4.Monel K-500 bolt nut stud washer Chemical Composition
Ni Cu Al Ti C Mn Fe S Si
63.0-70.0 Remainder 2.30-3.15 .35-.85 .25 max 1.5 max 2.0 max .01 max .50 max

Monel K-500 bolt nut washer stud Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness
Rod & Bar Hot-Finished/Aged 140-190 100-150 30-20 27-38 HRC
Rod & Bar Hot Finished/Annealed 90-110 40-60 45-25 75-90 HRB
Rod & Bar Hot Finished/Annealed/Aged 130-165 85-120 35-20 24-35 HRC
Rod & Bar Cold-Drawn/Aged 135-185 95-160 30-15 25-41 HRC
Rod & Bar Cold-Drawn/Annealed/Aged 130-190 85-120 30-20 24-35 HRC
Plate Hot-Finished/Aged 140-180 100-135 30-20 27-37 HRC
Sheet Cold-Rolled/Annealed 90-105 40-65 45-25 85 HRB Max
Equivalent Grades for Monel K-500 bolt nut washer stud
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel K-500 2.4375 N05500 - - - - -
5.Monel K-500 bolt nut washer stud Application Industries
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
6.Monel K-500 bolt nut washer stud Test Certificates
We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
ASME, ASTM and API Monel K-500 bolt nut washer stud Value Added Services

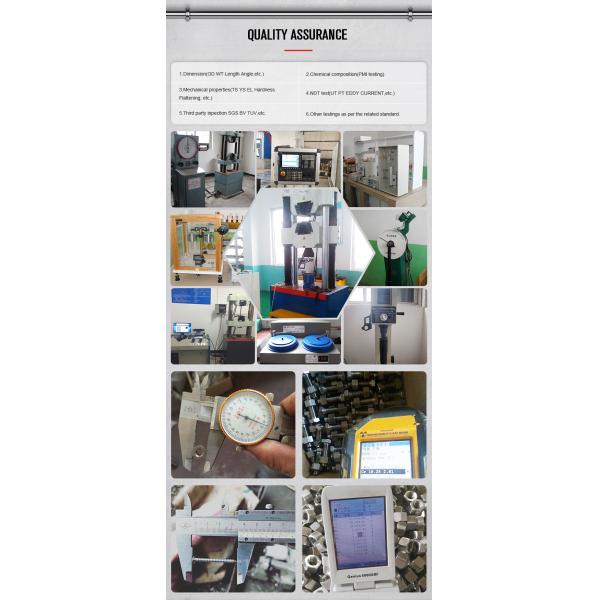

Material Testing:
We ensure that all our materials go through strict quality tests before dispatching them to our clients.
• Mechanical Testing Such as Tensile of Area
• Hardness Test

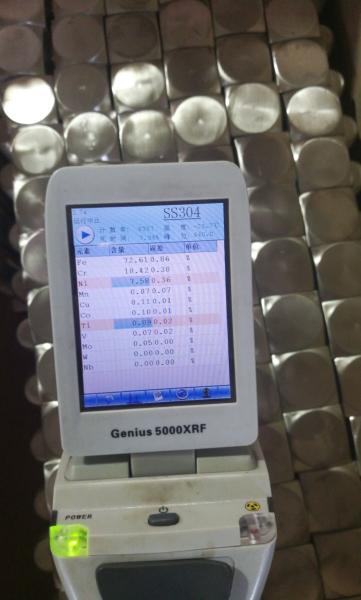

• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
Documentation
• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)
7.Monel K-500 bolt nut washer stud Package
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
8.Monel K-500 bolt nut washer stud Popular Searches
Monel K-500 bolt UNS N05500 hex bolt Alloy K-500 nut WERKSTOFF NR.2.4375 hex nut Monel K-500 nylon lock nut UNS N05500 stud bolt Alloy K-500 full thread stud bolt WERKSTOFF NR.2.4375 washer Monel K-500 flat washer UNS N05500 plain washer Alloy K-500 spring washer
9.Monel K-500 bolt nut washer stud delivery to cities:
London, Caracas, Gurgaon, Bhopal, Geoje-si, Ahvaz, Thane, Brisbane, Singapore, Sydney, Montreal, New Delhi, Melbourne, Bogota, Algiers, Santiago, Jaipur, Kuala Lumpur, Chiyoda, Dubai, Chennai, Busan, Bangkok, Vung Tau, Houston, Kuwait City, Ranchi, La Victoria, Aberdeen, Manama, Colombo, Los Angeles, Milan, Ernakulam, Gimhae-si, Navi Mumbai, Nashik, Tehran, Jakarta, Port-of-Spain, Rio de Janeiro, Bengaluru, Sharjah, Muscat, Indore, Pimpri-Chinchwad, Thiruvananthapuram, Chandigarh, Istanbul, Riyadh, Visakhapatnam, Noida, Cairo, Jamshedpur, Ho Chi Minh City, Granada, Dallas, Rajkot, Howrah, Surat, Vadodara, Hyderabad, Moscow, Kolkata, Faridabad, Hong Kong, Perth, Doha, Atyrau, Seoul, Kanpur, Haryana, Al Jubail, Secunderabad, Ulsan, New York, Dammam, Jeddah, Coimbatore, Courbevoie, Ahmedabad, Karachi, Baroda, Al Khobar, Hanoi, Nagpur, Lahore, Toronto, Madrid, Petaling Jaya, Mumbai, Abu Dhabi, Lagos, Ludhiana, Ankara, Edmonton, Mexico City, Pune, Calgary.
10.Monel K-500 bolt nut washer stud delivery to countries:
Venezuela, Colombia, Lithuania, New Zealand, Poland, Finland, Tibet, Estonia, Gabon, Sri Lanka, India, Pakistan, Ecuador, Nepal, Gambia, Thailand, Belgium, Norway, Mexico, Indonesia, Afghanistan, Turkey, Bhutan, Kazakhstan, Namibia, Austria, Poland, Lebanon, Czech Republic, United States, Singapore, Belarus, Israel, Australia, Ireland, Yemen, Mongolia, Germany, Trinidad & Tobago,Tunisia, France, Hong Kong China, Macau, Iran, Iran, Serbia, Azerbaijan, Japan, Philippines, Croatia, Netherlands, Malaysia, Brazil, Ghana, Costa Rica, Chile, South Africa, Romania, Denmark, Kenya, United Arab Emirates, Russia, Peru, Portugal, Ukraine, Bolivia, Puerto Rico, Kuwait, Algeria, Oman, United Kingdom, Mexico, Nigeria, Jordan, Qatar, Argentina, Morocco, Greece, Canada, Saudi Arabia, Switzerland, China, Slovakia, Zimbabwe, South Korea, Sweden, Egypt, Taiwan, Iraq, Bahrain, Chile, Bulgaria, Spain, Angola, Bangladesh, Nigeria, Italy, Hungary, Vietnam, Libya.
11.Monel K-500 bolt nut washer stud contact information
Alloy K 500 Monel K 500 N05500 2.4375 Bolt Nut Stud Washer
