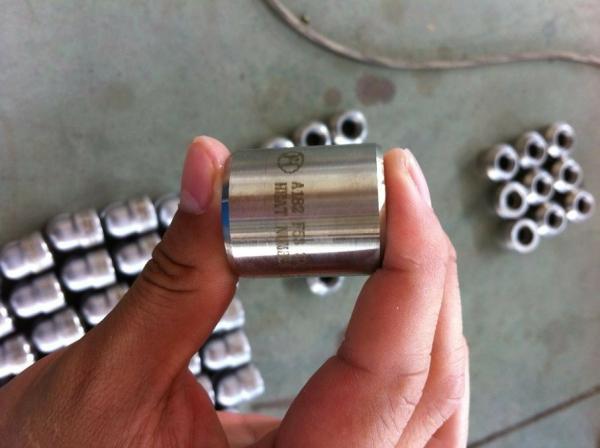

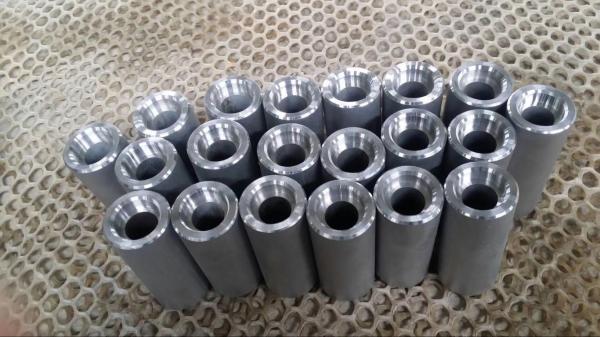

ASME B16.11 Duplex Stainless Steel Pipe Fittings Threaded SWHalf/ Full Duplex 2507 ASTM A182 F53 S32750 Coupling
ASME B16.11 Duplex Stainless Steel Pipe Fittings Threaded SWHalf/ Full Duplex 2507 ASTM A182 F53 S32750 Coupling
ASME B16.11 Duplex Stainless Steel Pipe Fittings Threaded SWHalf/ Full Duplex 2507 ASTM A182 F53 S32750 Coupling
ASME B16.11 Duplex Stainless Steel Pipe Fittings Threaded SWHalf/ Full Duplex 2507 ASTM A182 F53 S32750 Coupling
Specifications
Brand Name :
HT
Model Number :
Duplex 2507 ASTM A182 F53 S32750
Certification :
ISO,TUV,SGS,API,etc.
Place of Origin :
China
MOQ :
1PC
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal,etc.
Supply Ability :
100000pcs per day
Delivery Time :
2~30days
Packaging Details :
Plywood Case,Carton,Woven bag,etc.
Material :
Duplex 2507 ASTM A182 F53 S32750
Standard :
ASME B16.11
Size :
1/8''~4''
Class Rating :
2000 3000 6000 9000LB
Ends :
Socket-welding/Threaded
Type :
half full coupling
Processing :
Forged
Packing :
Plywood case
Description

1. ASME B16.11 threaded SWHalf/ Full Duplex 2507 ASTM A182 F53 S32750 coupling Specification

Type Coupling, half coupling
Standard ASME B16.11 , DIN, JIS, GB MSS SP-83,GB/T14383, GB/T14626
Size 1/8"-6"(DN6-DN150), Metric (3mm~50mm).
Nominal pressure 150#, 3000#, 6000#, 9000#
Temperature range -20°-+200°
Connection Threaded/NPT, BSP, NPT, DIN2999, ISO 7-1), or Butt-Welding,Socket Welding Female&male
Surface polished & albifaction
Application Petroleum/Power/Water/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc

2. Chemical Composition % of (UNS32750/F53) 2507

Grade Chemistry (Typical Values) Mechanicals
Specification Cr Ni Mo Cu N W Si Mn P
max		 S
max		 C
max		 Fe UTS
N/mm²
(min)		 0.20%
Proof
(min)		 Elong
% (min)		 Hardness
HB (max)		 PREN
2507(F53) 25.0 7.0 3.8 0.75 0.25 0.28 0.80 1.20 0.035 0.020 0.030 Bal 750 500-550 25 270 41

ASME B16.11 Duplex Stainless Steel Pipe Fittings Threaded SWHalf/ Full Duplex 2507 ASTM A182 F53 S32750 Coupling

3. Dimensions Threaded Full & Half Couplings – ASME B16.11

Dimensions NPS 1/2 to 4 – Class 3000

NPS End to End Outside
Diameter		 Minimum
Length
of Thread
A D B J
1/2 48 28 10.9 13.6
3/4 51 35 12.7 13.9
1 60 44 14.7 17.3
1¼ 67 57 17 18
1½ 79 64 17.8 18.4
2 86 76 19 19.2
2½ 92 92 23.6 28.9
3 108 108 25.9 30.5
4 121 140 27.7 33
NPS A D B J
End to End Outside
Diameter		 Minimum
Length
of Thread

4. Material & Grades of Forged Threaded / Screwed Half Coupling :

  • Stainless Steel Forged Threaded / Screwed Half Coupling :
    ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
  • Duplex & Super Duplex Steel Forged Threaded / Screwed Half Coupling :
    ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
  • Carbon Steel Forged Threaded / Screwed Half Coupling :
    ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
  • Alloy Steel Forged Threaded / Screwed Half Coupling :
    ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
  • Copper Alloy Steel Forged Threaded / Screwed Half Coupling : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
  • Nickel Alloy Forged Threaded / Screwed Half Coupling :
    ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

5.Forged Threaded / Screwed Half Coupling Application

ASME B16.11 Threaded Half Coupling are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Forged Screwed Coupling through a worldwide network of stock-keeping branches. These Forged Threaded Coupling is use in various industries like :

Stainless Steel Forged Threaded Half Coupling uses in Oil and Gas Pipeline

Forged Threaded Half Coupling uses in Chemical Industry

Alloy Steel Threaded Half Coupling uses in Plumbing

Forged Screwed Half Coupling uses in Heating

Threaded Forged Half Coupling uses in Water Supply Systems

ANSI B16.11 Forged Threaded Half Coupling uses in Power Plant

Threaded Half Coupling uses in Paper & Pulp Industry

Forged Screwed Half Coupling uses in General Purpose Applications

Forged Threaded Half Coupling uses in Fabrication Industry

Forged Screwed Half Coupling uses in Food Processing Industry

Forged Threaded Half Coupling uses in Structural Pipe
