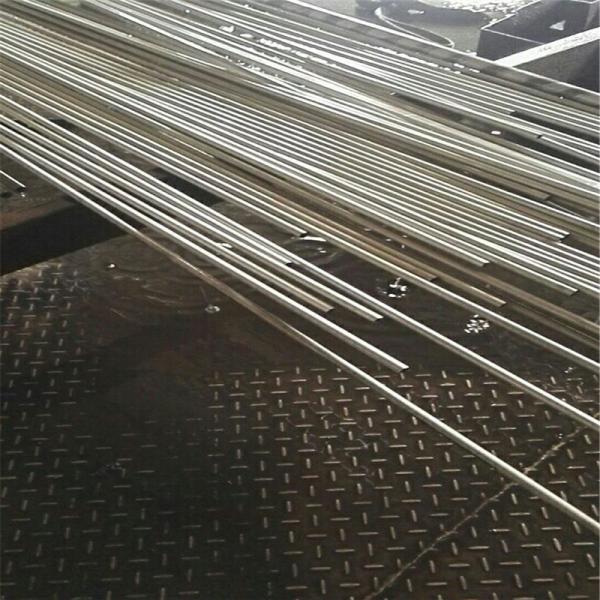

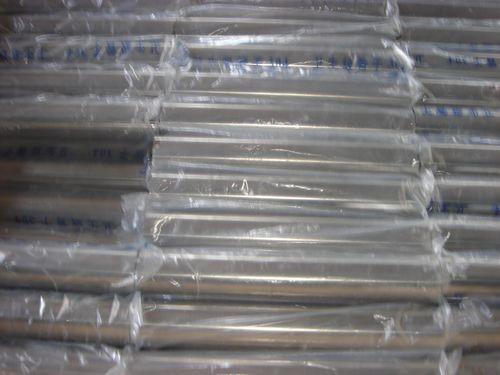

UNS N08800 Incoloy 800 Pipe , Welded B407 B514 B515 ASTM Seamless Pipe
UNS N08800 Incoloy 800 Pipe , Welded B407 B514 B515 ASTM Seamless Pipe
UNS N08800 Incoloy 800 Pipe , Welded B407 B514 B515 ASTM Seamless Pipe
UNS N08800 Incoloy 800 Pipe , Welded B407 B514 B515 ASTM Seamless Pipe
UNS N08800 Incoloy 800 Pipe , Welded B407 B514 B515 ASTM Seamless Pipe
UNS N08800 Incoloy 800 Pipe , Welded B407 B514 B515 ASTM Seamless Pipe
Specifications
Brand Name :
HT
Model Number :
ASTM B407 UNS N08800
Certification :
ISO SGS BV TUV
Place of Origin :
China
MOQ :
10KG
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000000Tons per Year
Delivery Time :
3-15 work days
Packaging Details :
Plywood case,pallet,woven bag,or other Seaworthy packed as customed
Product Name :
ASTM B407 B514 B515 UNS N08800 Incoloy 800 Seamless Welded Pipes Tubes
Standard :
ASTM B407 B514 B515
Material :
Incoloy steel
Prodcut :
steel pipe tube
Type :
Seamless or welded
OD :
1/2"-48”
Thickness :
SCH 5-SCH XXS
End :
BE or PE
Description

ASTM B407 B514 B515 UNS N08800 Incoloy 800 Seamless Welded Pipes Tubes

1. Incoloy 800 Seamless Welded Pipes Tubes Specifications

Specifications : ASTM B407 ASME SB407 / ASTM B514 ASME SB514
Dimensions : ASTM, ASME and API
Size : 15″NB TO 150″NB IN
Specialized in : Large Diameter Size
Schedule : SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form : Round, Hydraulic Etc
Length : Single Random, Double Random & Cut Length.
End : Plain End, Beveled End, Treaded

2. About Incoloy 800

800 Incoloy Alloy Pipes Chemical Composition

Grade C Mn Si Fe S Cr Al-Ti Ni
800 min. – – – 39.5 – 19.0 0.15 30.0
max. 0.1 1.5 1.0 – 0.015 23.0 0.60 35.0

Incoloy Alloy 800 Pipe Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
800 Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa –205 30 – –

Equivalent Grades for 800 Incoloy Pipe

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T

3. Incoloy 800 Seamless / Welded Pipes Application Industries

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

4. ASME SB407 Incoloy 800 Pipes Popular Searches

ERW Incoloy 800 pipe, Fabricated Incoloy 800 Pipe , CDW Incoloy 800H Pipe, Incoloy 800 Cold Drawn Seamless Pipe, marine Incoloy 800HT Piping, 10mm Incoloy 800 Pipe, 40mm Incoloy 800H Pipes, 12mm Incoloy 800HT Pipe, Incoloy 800 pipe price, 4 inch 800 Incoloy pipe price, Incoloy 800 pipe price per foot, Alloy 800 pipe price, Alloy 800 pipe, Alloy 800HT pipes, Alloy 800HT pipes manufacturers, 3 inch Incoloy 800HT pipe, 8 inch Incoloy 800H pipe, 1 inch 800 Incoloy pipe, 800 Incoloy pipe 2 inch, 800 Incoloy 2 inch pipe, 2.5 inch Incoloy 800 pipe, 12 inch Incoloy 800 pipe, Incoloy 800 pipe manufacturers, 800 Incoloy Pipe manufacturers, 800 Incoloy pipe manufacturers, 800 Incoloy pipe, Alloy 800 pipe, 800 Alloy pipe, 800 Incoloy welded pipe, 800 Incoloy welded pipes, large diameter 800H Incoloy pipe, large 800 Incoloy pipe, thick wall 800 Incoloy pipe, thin wall 800HT Incoloy pipe, 800 Incoloy piping wall thickness
