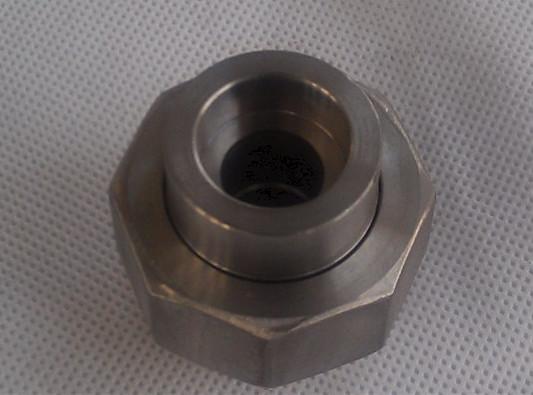

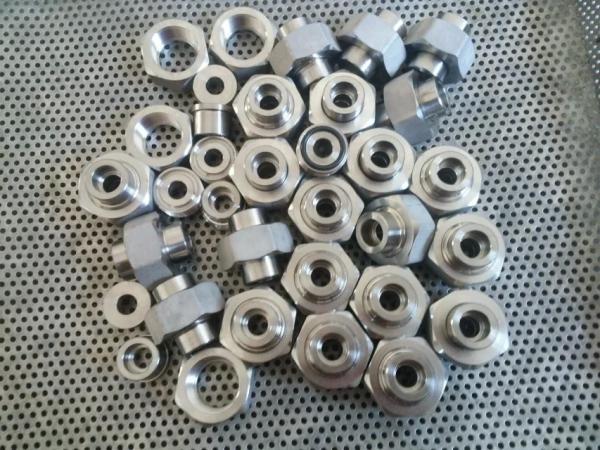

NPT SW BW MSS SP83 Duplex Pipe Fittings Stainless Steel 904L Pipe Union
NPT SW BW MSS SP83 Duplex Pipe Fittings Stainless Steel 904L Pipe Union
NPT SW BW MSS SP83 Duplex Pipe Fittings Stainless Steel 904L Pipe Union
NPT SW BW MSS SP83 Duplex Pipe Fittings Stainless Steel 904L Pipe Union
Specifications
Brand Name :
HT
Model Number :
A182 F904L N08904 Duplex Stainless Steel 904L
Certification :
ISO,TUV,SGS,API,etc.
Place of Origin :
China
MOQ :
1PC
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal,etc.
Supply Ability :
100000pcs per day
Delivery Time :
2~30days
Packaging Details :
Plywood Case,Carton,Woven bag,etc.
Material :
A182 F904L N08904 Duplex Stainless Steel 904L
Standard :
MSS SP83
Size :
1/8''~4''
Class Rating :
3000LB
Ends :
Socket-welding/Threaded/BW
Type :
Union
Processing :
Forged
Packing :
Plywood case
Description

NPT SW BW MSS SP83 A182 F904L N08904 Duplex Stainless Steel 904L pipe unions

1. Material Introduction:

904L Stainless Steel Union Chemical Composition

Grade C Mn Si P S Cr Mo Ni Cu
904L

min.

max.

-

0.02

-

2

-

1

-

0.045

-

0.035

19

23

4

5

23

28

1

2

904L Stainless Steel Union Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) Brinell (HB)
904L 490 220 36 70-90 typical 150

Grade UNS No Old British Euronorm Swedish SS
BS WERKSTOFF NR. Name
904L N08904 904S13 1.4539 X1NiCrMoCuN25-20-5 2562
Normen KS AFNOR NAS Japanese JIS G4304/4305
VdTÜV 421, SEW 400 STS 317J5L Z2 NCDU 25-20 NAS 255 SUS 904L

2. 904L Stainless Steel Union Dimensions

NPT SW BW MSS SP83 Duplex Pipe Fittings Stainless Steel 904L Pipe Union

Nom. Pipe Size Pipe End Min Socket Bore Dia. Socket Wall Min. Water Way Bore Laying Length Male Flange Min. Nut Min. Threads Per 25.4 Max Bearing Min. Depth of Socket Min. Length Assem. Nominal Clear Assem. Nut
A B C D E F G H J K L N
1/8 21.8 10.92
10.67		 3.17 6.83
6.43		 22.4
19.0		 3.17 3.17 16 1.24 9.6 41.1 49.0
¼ 21.8 14.22
13.97		 3.30 9.85
9.45		 22.4
19.0		 3.17 3.17 19 1.24 9.6 41.4 49.0
3/8 25.9 17.78
17.53		 3.48 13.92
13.51		 26.9
20.6		 3.43 3.43 14 1.37 9.6 46.0 55.0
½ 31.2 21.84
21.59		 4.06 17.47
17.07		 26.9
20.6		 3.68 3.68 14 1.50 9.6 49.0 57.0
¾ 37.1 27.18
26.92		 4.27 21.79
21.39		 31.8
25.4		 4.06 4.06 11 1.68 12.7 56.9 67.0
1 45.5 34.04
33.78		 4.95 28.14
27.74		 34.3
26.2		 4.57 4.44 11 1.85 12.7 62.0 79.0
11/4 54.9 42.67
42.42		 5.28 35.76
35.36		 40.6
32.5		 5.33 5.21 11 2.13 12.7 71.1 94.0
11/2 61.5 48.77
48.51		 5.54 41.61
41.20		 42.2
34.0		 5.84 5.59 10 2.31 12.7 75.5 111.0
2 75.2 61.47
61.21		 6.05 52.53
52.12		 45.3
37.3		 6.60 6.35 10 2.69 15.8 86.1 132.0
21/2 91.7 74.17
73.66		 7.65 64.72
64.31		 61.7
52.1		 7.49 7.11 8 3.07 15.8 102.4 148.0
3 109.2 90.17
89.66		 8.31 77.67
77.27		 63.8
53.6		 8.25 8.00 8 3.53 15.8 109.0 175.0

3. SS 904L Tube To Union Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

4. Stainless Steel 904L Tube To Union Test Certificates

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc

5. Stainless Steel 904L Tube Fittings Tube To Union Packaging

We focus on every procedure to assure quality, the package we usually take is pack SS 904L Tube Fittings Tube to Union with environmental poly bags, and then in free fumigation wooden cases or wooden palte. Also can accept customized package such as OEM by negotiation. We offers just about everything to meet your UNS N08904 Tube Fittings pack requirements. Lot of emphasis is placed on the packing and packaging. The Stainless Steel 904L Union Elbow are packed in wooden corrugated boxes foiled in plastic wraps and bubble wraps.

NPT SW BW MSS SP83 Duplex Pipe Fittings Stainless Steel 904L Pipe Union
