316 / 316L Hex Bolt Duplex Stainless Steel Fasteners Partial Full Thread DIN933 DIN931
316 / 316L Hex Bolt Duplex Stainless Steel Fasteners Partial Full Thread DIN933 DIN931
316 / 316L Hex Bolt Duplex Stainless Steel Fasteners Partial Full Thread DIN933 DIN931
316 / 316L Hex Bolt Duplex Stainless Steel Fasteners Partial Full Thread DIN933 DIN931
Specifications
Brand Name :
HT
Model Number :
Stainless steel 316/316L hex bolt partial full thread DIN933 DIN931
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000/set
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 set per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Bolt, Nut, Washer, Stud bolt, U bolt
Name :
Stainless steel 316/316L hex bolt partial full thread DIN933 DIN931
Size :
M6-M100
Finish :
Cold galvanizing, Zinc-Nickel, Black, Cadium plated
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

Stainless steel 316/316L hex bolt partial full thread DIN933 DIN931

1. 316/316L bolt Property Class :

For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H

For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040

For SHCS: F837B, F837C, F837E, F837

For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2

Grade Designation :

Grade UNS
No		 Old British Euronorm Swedish
SS		 Japanese
JIS
BS En No Name
316 S31600 316S31 58H, 58J 1.4401 X5CrNiMo17-12-2 2347 SUS 316
316L S31603 316S11 - 1.4404 X2CrNiMo17-12-2 2348 SUS 316L
316H S31609 316S51 - - - - -

316L Stainless Steel Stud Bolt Composition :

Chemical Composition
Typical Chemical compositional ranges for grade 316L Stainless Steel Stud Bolt

Grade C Mn Si P S Cr Mo Ni N
316 Min - - - 0 - 16.0 2.00 10.0 -
Max 0.08 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10
316L Min - - - - - 16.0 2.00 10.0 -
Max 0.03 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10
316H Min 0.04 0.04 0 - - 16.0 2.00 10.0 -
max 0.10 0.10 0.75 0.045 0.03 18.0 3.00 14.0 -

Mechanical Properties
Typical mechanical properties for grade 316L Stainless Steel Stud Bolt

Grade Tensile Str
(MPa) min		 Yield Str
0.2% Proof
(MPa) min		 Elong
(% in 50mm) min		 Hardness
Rockwell B (HR B) max Brinell (HB) max
316 515 205 40 95 217
316L 485 170 40 95 217
316H 515 205 40 95 217

Physical Properties
Typical physical properties for grade 316L Stainless Steel Stud Bolt

Grade Density
(kg/m3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100°C
(J/kg.K)		 Elec Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C At 100°C At 500°C
316/L/H 8000 193 15.9 16.2 17.5 16.3 21.5 500 740

2. 316L bolt nut washer specification

Type of Fasteners:

Bolts (Eyebolt)

Stud

Nuts (Nylock, Lock)

Washer (Star, Plain)

Allen Caps

Screws (CSK, Pen Head, Philip, Mushroom, Cheese)

Clamp (U, J, L)

Grab

Rivet (Pop & Hollo) Etc.
In Form of:

Hex

Square

Round

Threading as per Gauge Etc.

Packing: IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request
Origin and service-region:

European

Origin of 316L Stainless Steel Fasteners are Western European. However projects with eastern origin are possible on request.
TEST CERTIFICATE Manufacturer Test Certificate as per EN 10204 / 3.1
Product Grades: 304, 304L, 316, 316L, 316Ti, 200 series

3. 316L Stainless Steel Stud Bolt Surface Coating :

  • Hot Dipped Galvanizing
  • Epoxy Coating
  • Electro Polished
  • Passivation
  • Zinc Plating
  • Chrome Plating
  • Mirror Buffed
  • Teflon Coating
  • Oxidized

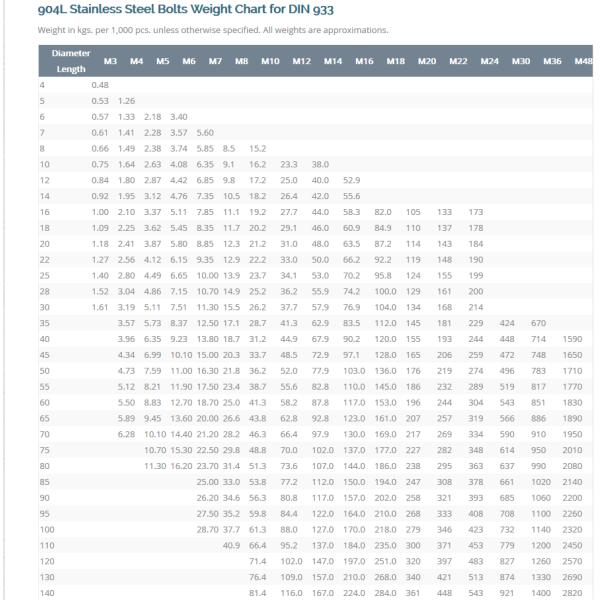

4. 316L hex bolt producing standard DIN933

316 / 316L Hex Bolt Duplex Stainless Steel Fasteners Partial Full Thread DIN933 DIN931
