304 / 304L Duplex Stainless Steel Fasteners DN3570 U Bolt M6 - M100 Size
304 / 304L Duplex Stainless Steel Fasteners DN3570 U Bolt M6 - M100 Size
304 / 304L Duplex Stainless Steel Fasteners DN3570 U Bolt M6 - M100 Size
304 / 304L Duplex Stainless Steel Fasteners DN3570 U Bolt M6 - M100 Size
Specifications
Brand Name :
HT
Model Number :
DN3570 U-Bolt Stainless Steel 304/304L Duplex Stainless Steel Fasteners
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union,
Supply Ability :
1000 pcs per month
Delivery Time :
30-35 working days
Packaging Details :
wooden case, wooden pallet
Product Type :
bolt nut washer
Name :
DN3570 U-Bolt Stainless Steel 304/304L Duplex Stainless Steel Fasteners
Size :
M6-M100
Finish :
Cold galvanizing, Hot-dip Galvanizing, PTFE, Zinc Nickel, Black coating, Plain
Standard :
DIN931 DIN933 DIN912 DIN934 DIN125 DIN127
Material :
Nickel alloy/stainless steel/duplex stainless
Description

DN3570 U-Bolt Stainless Steel 304/304L Duplex Stainless Steel Fasteners

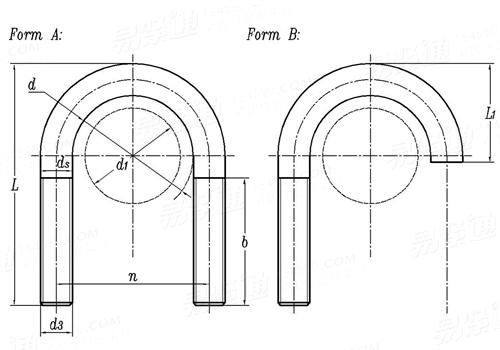

1.DIN 3570 - 1968 Steel Strap For Nomial Diameter 20 To 500 Tubes

304 / 304L Duplex Stainless Steel Fasteners DN3570 U Bolt M6 - M100 Size

Nominal Diameter
d
176 202 228 282 332 378 428 530

d1 d1
Nominal Metric
Inch
b ①
ds
d3
L ①
L1
per 1000 units≈kg Type A
Type B
159~168.3 (191)~193.7 216~219.1 267~273 318~323.9 355.6~368 406.4~419 508~521
150 (175) 200 250 300 350 400 500
- - - - - - - -
60 60 70 70 70 70 70 70
16 16 20 20 20 24 24 24
M16 M16 M20 M20 M20 M24 M24 M24
- - - - - - - -
217 249 283 334 385 435 487 589
83.4 95.8 169.8 202.8 235 382 429 522
- - - - - - - -

①,L and h1 are minimum dimensions and apply to a plate thickness of 10 mm.

Nominal Diameter
d
30 38 46 52 64 82 94 120 148
d1 d1
Nominal Metric
Inch
b ①
ds
d3
L ①
L1
per 1000 units≈kg Type A
Type B
25~26.9 30~33.7 38~42.4 44.5~48.3 57~60.3 76.1 88.9 108~114.3 133~139.7
20 25 32 40 50 65 80 100 125
3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 -
40 40 50 50 50 50 50 60 60
10 10 10 10 12 12 12 16 16
M10 M10 M10 M10 M12 M12 M12 M16 M16
70 76 86 92 109 125 138 - -
28 31 37 40 49 57 66 171 191
9.4 10.5 12 12.9 22.2 25.9 28.8 64 72.7
6.8 7.7 9 9.7 16.8 19.8 22.4 -

-

2.U-BOLT USE

A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such,

U-bolts were measured using pipe-work engineering speak.

U bolts available in a range of sizes and finishes to support different loads, torque requirements and environments. U Bolts usually available from stock.

A U-bolt is an industrial fastener in the shape of the letter U with two threaded arms (or legs) extending from a curved base. U bolts are typically used to support pipework or to attach a part to a pole, beam or wall, where the “u” shape keeps it firmly in place, adding stability to the support.

The threaded ends are designed for use with washers and screws, and can also be used with a crosspiece spanning both threaded arms of the bolt, to make it more secure in certain settings and uses. U-bolts are designed to be inserted through holes that have already been drilled or punched.

U-bolt specifications include:
1.Material Type (For example: zinc plated mild steel)
2.Thread dimensions (For example: M12 * 50 mm)
3.Inside diameter (For example: 50 mm – the distance between the legs)
4.Inside height (For example: 120 mm) Suitable for automotive, plumbing, construction and other home and industrial applications.
