S32760 Duplex Stainless Steel Hex Bolt Full Partial Thread DIN933 DIN931
S32760 Duplex Stainless Steel Hex Bolt Full Partial Thread DIN933 DIN931
S32760 Duplex Stainless Steel Hex Bolt Full Partial Thread DIN933 DIN931
S32760 Duplex Stainless Steel Hex Bolt Full Partial Thread DIN933 DIN931
Specifications
Brand Name :
HT
Model Number :
S32760 Duplex stainless steel hex bolt full partial thread DIN933 DIN931
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000/set
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 set per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Bolt, Nut, Washer, Stud bolt, U bolt
Name :
S32760 Duplex stainless steel hex bolt full partial thread DIN933 DIN931
Size :
M6-M100
Finish :
Cold galvanizing, Zinc-Nickel, Black, Cadium plated
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

S32760 Duplex stainless steel hex bolt full partial thread DIN933 DIN931

1. S32760 hex bolt DIN933 DIN931 Product Description

Duplex and Super duplex F51/F53/F55 S32750/S31803/S32760, Incoloy, Inconel, hastelloy, monel screw, bolt, nut, washer, thread rod and other custom fasteners as print.

Product Name HEX BOLT din933 DIN931 WITH DIN934 HEX NUT
Material Duplex S31803 S32205 S32750 S32760
Size M3-M100(3/8'-4") OR AS DRAWINGS
Standard ANSI / ASME, DIN, JIS, BS, UNI etc
Quantity Small order accepted
Finished Plain
Thread Coarse,Fine
Packing Plywood case or wooden box or as required

2 Chemical Composition of Super Duplex S32750/S32760 full/partial thread hex Bolts

S32750 / S32760 C N P Si Mn Mo Ni Cr S Other
0.030 0.24/0.32 0.035 0.80 1.20 3.0/5.0 6.00/8.00 24.0/26.0 0.020 Cu:0.50

Super Duplex S32750/S32760 hex bolt full thread Mechanical Properties

S32750 / S32760 Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
7.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %

Super Duplex Steel S32750/S32760 partial thread hex bolt DIN931 Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Super Duplex 2507 1.4410 S32750 / S32760

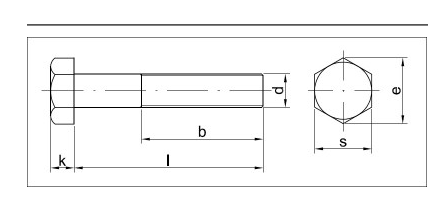

3. The difference between DIN931 and DIN933 hex bolt

S32760 Duplex Stainless Steel Hex Bolt Full Partial Thread DIN933 DIN931

Hex screws with full thread - DIN 933 - S32760 hex bolt M8

Dimension
(d x l)
(mm)		 k
(mm)		 s
(mm)		 e
(mm)		 Weight
(kg/100 pc)		 Packing
(pcs.)
M8 x 10 5,3 13 14,38 0,91 500
M8 x 12 5,3 13 14,38 0,98 200
M8 x 16 5,3 13 14,38 1,11 200
M8 x 20 5,3 13 14,38 1,23 200
M8 x 25 5,3 13 14,38 1,39 200
M8 x 30 5,3 13 14,38 1,55 200
M8 x 35 5,3 13 14,38 1,71 200
M8 x 40 5,3 13 14,38 1,87 200
M8 x 45 5,3 13 14,38 2,03 200
M8 x 50 5,3 13 14,38 2,18 200
M8 x 55 5,3 13 14,38 2,34 200
M8 x 60 5,3 13 14,38 2,50 200
M8 x 65 5,3 13 14,38 2,66 200
M8 x 70 5,3 13 14,38 2,82 100
M8 x 75 5,3 13 14,38 2,898 100
M8 x 80 5,3 13 14,38 3,14 100
M8 x 90 5,3 13 14,38 3,46 100
M8 x 100 5,3 13 14,38 3,77 100
M8 x 110 5,3 13 14,38 4,09 100
M8 x 120 5,3 13 14,38 4,41 100

Hex screws with partial thread - DIN 931 - S32760 M8

Dimension
(d x l)
(mm)		 b
(mm)		 k
(mm)		 s
(mm)		 e
(mm)		 Weight
(kg/100 pc)		 Packing
(pcs.)
M8 x 30 22 5,3 13 14,38 1,61 200
M8 x 35 22 5,3 13 14,38 1,82 200
M8 x 40 22 5,3 13 14,38 2,03 200
M8 x 45 22 5,3 13 14,38 2,22 200
M8 x 50 22 5,3 13 14,38 2,42 200
M8 x 55 22 5,3 13 14,38 2,58 200
M8 x 60 22 5,3 13 14,38 2,78 200
M8 x 65 22 5,3 13 14,38 2,98 100
M8 x 70 22 5,3 13 14,38 3,18 100
M8 x 75 22 5,3 13 14,38 3,37 100
M8 x 80 22 5,3 13 14,38 3,57 100
M8 x 90 22 5,3 13 14,38 3,97 100
M8 x 100 22 5,3 13 14,38 4,37 100
M8 x 110 22 5,3 13 14,38 4,77 100
M8 x 120 22 5,3 13 14,38 5,17 100
M8 x 140 28 5,3 13 14,38 5,97 50
M8 x 160 28 5,3 13 14,38 6,77 50
M8 x 180 28 5,3 13 14,38 7,57 50
M8 x 200 28 5,3 13 14,38 8,37 50
