1/2 - 2 1/2 Duplex 2507 Duplex Stainless Steel Fasteners Heavy Hex Bolt ASME B 18.2.1
1/2 - 2 1/2 Duplex 2507 Duplex Stainless Steel Fasteners Heavy Hex Bolt ASME B 18.2.1
1/2 - 2 1/2 Duplex 2507 Duplex Stainless Steel Fasteners Heavy Hex Bolt ASME B 18.2.1
1/2 - 2 1/2 Duplex 2507 Duplex Stainless Steel Fasteners Heavy Hex Bolt ASME B 18.2.1
Specifications
Brand Name :
HT
Model Number :
F53 2507 S32750 1.4410
Certification :
ISO, SGS, BV, TUV
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 sets per month
Delivery Time :
20-25 days
Packaging Details :
carton case+wooden case or wooden pallet or as per the clients' request
Product Name :
F53 2507 S32750 1.4410
Size :
M6-M64
Surface :
cold galvanized, PTFE, Zinc Nickel, Plain
Producing standard :
DIN, ASME
Type :
bolt nut washer
Package :
carton+wooden case
Description

1/2"-2 1/2" Duplex 2507 Duplex Stainless Steel Fasteners Heavy Hex Bolt ASME B 18.2.1

WHAT ARE HEAVY HEX BOLTS?

Heavy hex bolts have larger and thicker heads than regular or standard hex bolts, and are commonly used in a wide variety of applications. These building fasteners are available in different sizes, both lengths and diameters, although all come with a hex head.

Some types are threaded all the way up the shaft, while others have a smooth shoulder area. All are designed to be used with hex nuts for a secure fit in construction projects, for repairs, and in automotive applications.

COMMON INDUSTRIAL USES FOR HEAVY HEX BOLTS

heavy hex bolts are often seen in the following industrial sectors:

* Steel Fabrication
* Construction of Railroad Systems
* Pumps and Water treatment
* Construction of Modular Buildings
* Renewable and Alternative Energy

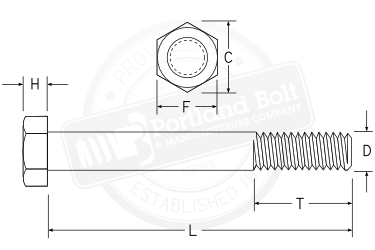

Heavy Hex BOLT Dimensions

1/2

Diameter D F C H
Body Diameter Width Across Flats Width Across Corners Height
Max Basic Max Min Max Min Basic Max Min
1⁄2 0.515 7⁄8 0.875 0.850 1.010 0.969 11⁄32 0.364 0.302
5⁄8 0.642 11⁄16 1.062 1.031 1.227 1.175 27⁄64 0.444 0.378
3⁄4 0.768 11⁄4 1.250 1.212 1.443 1.383 1⁄2 0.524 0.455
7⁄8 0.895 17⁄16 1.438 1.394 1.660 1.589 37⁄64 0.604 0.531
1 1.022 15⁄8 1.625 1.575 1.876 1.796 43⁄64 0.700 0.591
11⁄8 1.149 113⁄16 1.812 1.756 2.093 2.002 3⁄4 0.780 0.658
11⁄4 1.277 2 2.00 1.938 2.309 2.209 27⁄32 0.876 0.749
13⁄8 1.404 23⁄16 2.188 2.119 2.526 2.416 29⁄32 0.940 0.810
11⁄2 1.531 23⁄8 2.375 2.300 2.742 2.622 1 1.036 0.902
15⁄8 1.658 29⁄16 2.562 2.481 2.959 2.829 13⁄32 1.116 0.978
13⁄4 1.785 23⁄4 2.750 2.662 3.175 3.035 15⁄32 1.196 1.054
17⁄8 1.912 215⁄16 2.938 2.844 3.392 3.242 11⁄4 1.276 1.130
2 2.039 31⁄8 3.125 3.025 3.608 3.449 111⁄32 1.388 1.175
21⁄4 2.305 31⁄2 3.500 3.388 4.041 3.862 11⁄2 1.548 1.327
21⁄2 2.559 37⁄8 3.875 3.750 4.474 4.275 121⁄32 1.708 1.479

1/2
