ASTM B622 UNS N08031 Alloy 31 Inconel Pipe Seamless Tube Alloy Steel Material
ASTM B622 UNS N08031 Alloy 31 Inconel Pipe Seamless Tube Alloy Steel Material
ASTM B622 UNS N08031 Alloy 31 Inconel Pipe Seamless Tube Alloy Steel Material
ASTM B622 UNS N08031 Alloy 31 Inconel Pipe Seamless Tube Alloy Steel Material
Specifications
Brand Name :
HT
Model Number :
Alloy 31
Certification :
ISO SGS BV TUV
Place of Origin :
China
MOQ :
10KG
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000000Tons per Year
Delivery Time :
3-15 work days
Packaging Details :
Plywood case,pallet,woven bag,or other Seaworthy packed as customed
Product Name :
Alloy 31 ASTM B619 B622 B626 UNS N08031 Seamless Welded Pipes Tubes
Standard :
ASTM B619
Material :
Alloy Steel
Prodcut :
steel pipe tube
Type :
Seamless or welded
OD :
1/2"-48”
Thickness :
SCH 5-SCH XXS
End :
BE or PE
Description

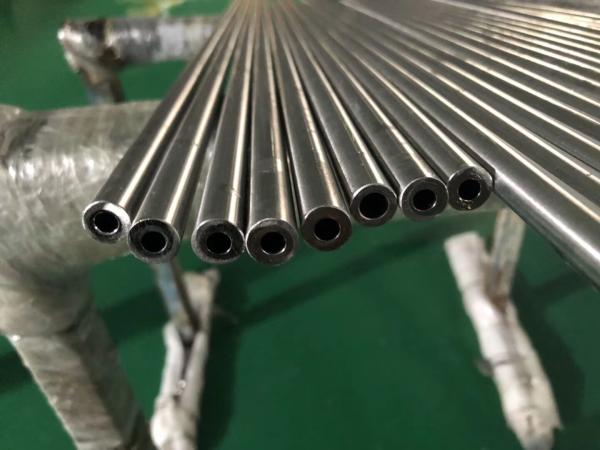

ASTM B622 UNS N08031 Alloy 31 Inconel Pipe Seamless Pipe and Tube

1. ALLOY 31 ASTM B622 UNS N08031 pipe tube

Pipe tube Seamless welded nickel monel inconel incoloy hastelloy nimonic steel pipe tube
size 1/8''~24''
thickness SCH5S~XXS
Pipe end PE BE
standard ASTM/ASME SB161 SB163 SB167 SB407 SB444 SB423 SB622 SB668 SB677 SB829

Nickel alloy tube

Seamless or welded

Nickel Alloy 20 31 200 201 6xn; Monel 400 k500 404 400a 30c; Inconel 600 601 625 718 783 x750; Incoloy 800 800h 800ht 825 925 6mo 25-6mo 901 926 907; Hastelloy b b2 b3 c4 c22 c276 c2000 g-30 x C; Nimonic 80a 90 263

N06600, N06690, N06625, N08825, N08904 N08028, N08800, N06985, N04404, N04405 N10276, N02200, N02201
Packing Bundle, steel strip, wooden case, woven bags, etc

2. TECHNICAL DATA

Mechanical Properties

Temper Annealed
Tensile Rm 94 ksi (min)
Tensile Rm 650 MPa (min)
R.p. 0.2% Yield 41 ksi (min)
R.p. 0.2% Yield 280 MPa (min)
Elongation (2.02 or 4D gl) 40 % (min)


Physical Properties (Room Temperature)

Specific Heat (0-100°C) 452 J.kg-1.°K-1
Thermal Conductivity 11.7 W.m -1.°K-1
Thermal Expansion 18.1 mm/m/°C
Modulus Elasticity 198 GPa
Electrical Resistivity 1.03 μohm/cm
Density 8.61 g/cm3


Chemical Composition (% by weight)

Element Min Max
C - 0.0015
Si - 0.3
Mn - 2
P - 0.02
S - 0.01
Cr 26 28
Cu 1 1.4
Fe Balance
Mo 6 7
N 0.15 0.25
Ni 30 32

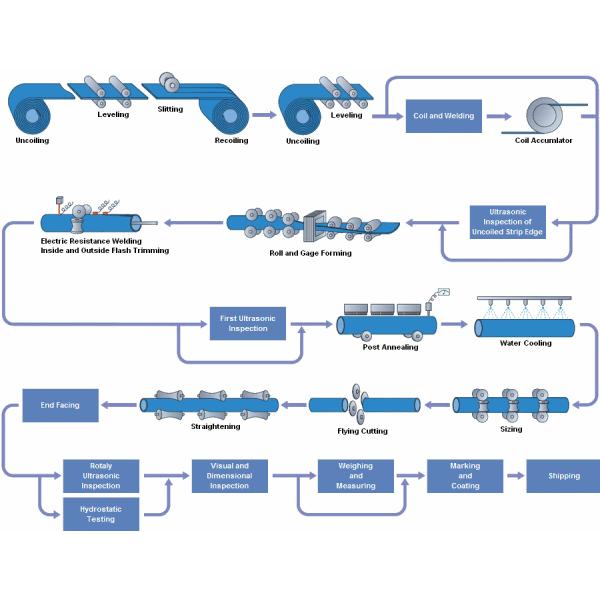

3. Alloy 31 pipe and tube process technics:

ASTM B622 UNS N08031 Alloy 31 Inconel Pipe Seamless Tube Alloy Steel Material
