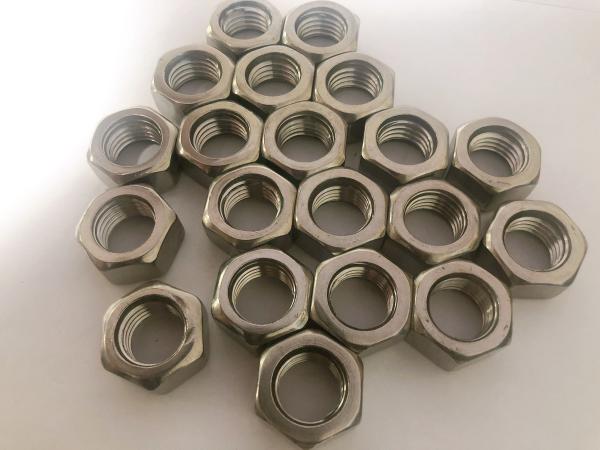

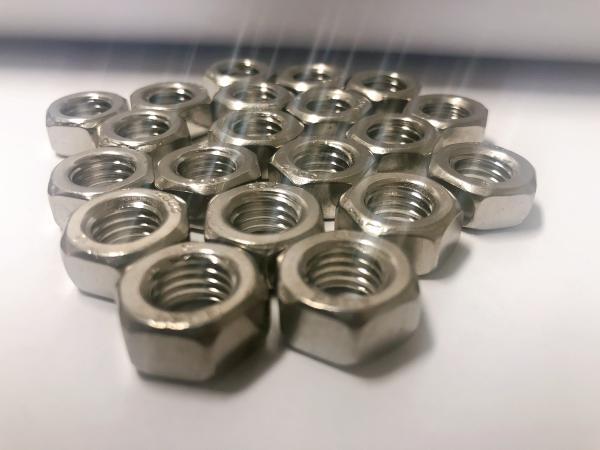

Heavy Hex Nut Stainless Steel 310S Hardware Fasteners DIN934 1/4'' - 5'' ASME Size
Heavy Hex Nut Stainless Steel 310S Hardware Fasteners DIN934 1/4'' - 5'' ASME Size
Heavy Hex Nut Stainless Steel 310S Hardware Fasteners DIN934 1/4'' - 5'' ASME Size
Heavy Hex Nut Stainless Steel 310S Hardware Fasteners DIN934 1/4'' - 5'' ASME Size
Specifications
Brand Name :
HT
Model Number :
M6-M100
Certification :
PED SGS ISO TUV
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000000sets per month
Delivery Time :
1~30days
Packaging Details :
Plywood case,pallet,etc.
Bolt Type :
Stud Bolt Hex Boltt Threaded Rod U-Bolt Hex Socket Screw
Nut Type :
Hex Nut Hex Heavy Nut
Waher Type :
Plain Flat Spring Washer
Bolt Standard :
DIN931 933 912 976 3570/ASME B18.2.1
Nut Standard :
DIN934 ASME B18.2.2
Washer Standard :
DIN125 127/ASME B18.22.1
DIN Size :
M6-M100
ASME Size :
1/4''~5''
Description

Stainless Steel Hardware Fasteners Heavy Hex Nut DIN934 1/4'' - 5'' ASME Size

1. Specification

Type Stud Bolt Threaded Rod Hex Socket Cap Screw
Hex Nut U-Bolt Spring Washer
Pain Washer Hex Bolt (full thread, partial thread)
Size Stud Bolt DIN: M6~M100 ASME: 1/4"~5"
Hex Bolt DIN: M6~M64 ASME: 1/2"~2 1/2"
Finish Cold galvanizing, Hot-dip Galvanizing, PTFE, Zinc Nickel, Black coating, Plain
Producing Standard ASME ASME B18.2.1 Hex Bolts
ASME B18.2.2 Hex Nuts
ASME B18.22.1 Plain Washers
DIN DIN931 Hex Bolt with partial thread
DIN 933 Hex Bolt with full thread
DIN 912 Hex Socket Cap Screw
DIN 934 Hex Nut
DIN 125 Plain Washer
DIN127 Spring Washer
DIN 975 Threaded Rods
DIN 976 Stud Bolts
DN 3570 U-Bolt
Material Grade Stainless Steel 304/304L, 316/316L, 316Ti, 317/317L, 321, 347/347H, 310, 309, A453 660C,660D, S31254 /254SMO, 904L /1.4539 /N08904, N08367, N08926 / 1.4529
Duplex Steel 2205 /S31803, S32750/2507, S32760
Nickel Alloy Steel UNS N02200/Ni 200, UNS N02201 /Ni201,
UNS N04400/ Monel 400, UNS N05500/ Monel K500 ,
UNS N06600/ Inconel 600, UNS N06601/ Inconel 601,
UNS N06625/ Inconel 625, UNS N08825/ Incoloy 825,
UNS N08800 /Incoloy 800, UNS N08810 /Incoloy 800H ,
UNS N08811 /Incoloy 800HT, UNS N08020 /Alloy 20,
UNS N06002 /Hastelloy X, UNS N06022/ Hastelloy C22, UNS N06200/C2000, UNS N10276/ Hastelloy C276,
UNS N10665 /Hastelloy B2, UNS N10675/Hastelloy B3,
UNS N08020/ Alloy 20, UNS N08031/ Alloy 31
Carbon Steel Grade 4.8, 5.8, 6.8, 8.8, 10.8, 12.9
Alloy Steel A193 B7, A194 2H, A320 L7, L7M

2. Dimension

Thread diameter D flutes pitch P m s
max min max min
M3 0.5 2.55 2.4 5.5 5.32
M4 0.7 3.7 3.2 7 6.78
M5 0.8 4 3.7 8 7.78
M6 1 5 4.7 10 9.78
M8 1.25 6.5 6.14 12 12.73
M10 1.5 8 7.64 17 16.73
M12 1.75 10 9.64 19 18.67
M14 2 11 10.3 22 21.67
M16 2 13 12.3 24 23.67
M18 2.5 15 14.3 27 26.16
M20 2.5 16 14.9 30 29.16
M22 2.5 18 16.9 32 31
M24 3 19 17.7 36 35
M27 3 22 20.7 41 40
M30 3.5 24 22.7 46 45
M33 3.5 26 24.7 50 49

The above data is single batch manual measurement, there is some error, please take the real object as the standard!

Those who mind are careful to shoot (unit: mm)

3. Our advantages:

  • 1. Leading manufacturer of stainless steel fasteners
  • 2. Quick delivery
  • 3. Over 10 years experience
  • 4. Small quantity available
  • 5. High-precision tolerance
  • 6. Complete QC system & Advanced physical and chemical testing center
  • 7. Effective and strong technical support and custom-made solutions
  • 8. Mill test certificate

Heavy Hex Nut Stainless Steel 310S Hardware Fasteners DIN934 1/4'' - 5'' ASME Size

4. FAQ

  • 1 Are you manufacture or trading company ?
  • We are a professional manufacture of fasteners.
  • 2 Can i order a small qty ?
  • Yes, you can.We supply a customized service for the small qty.
  • 3 Can i get sample before order ?
  • Yes,free of charge.
  • 4 What is the delivery time ?
  • 10-45 days by qty
  • 5 Can you print or stamp our logo and mark on products ?
  • Yes,also supply a customized service.
  • 6 How can i get products ? How the shipment ?
  • We will quote CIF or door to door express to you by your requirement.
  • express including FedEx,DHL,TNT,UPS,EMS etc
  • 7 What is the payment terms ?
  • 30%,45%,60% T/T in advance
