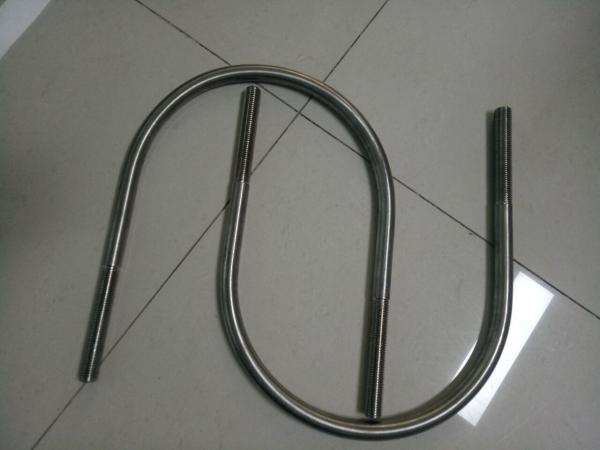

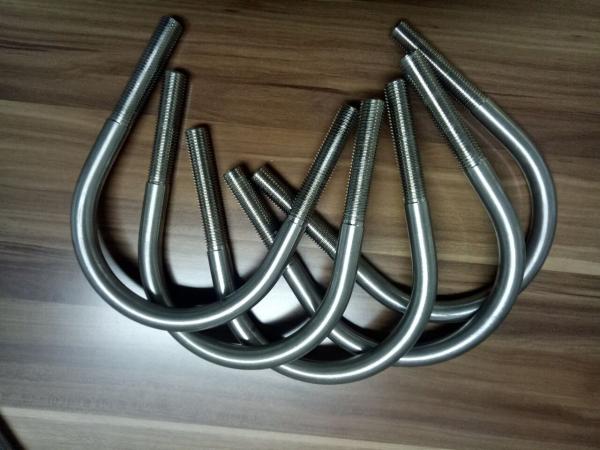

309S / 310S Duplex Stainless Steel Fasteners DIN 3570 Big Size U Bolt With Nut For Vehicles
309S / 310S Duplex Stainless Steel Fasteners DIN 3570 Big Size U Bolt With Nut For Vehicles
309S / 310S Duplex Stainless Steel Fasteners DIN 3570 Big Size U Bolt With Nut For Vehicles
309S / 310S Duplex Stainless Steel Fasteners DIN 3570 Big Size U Bolt With Nut For Vehicles
Specifications
Brand Name :
HT
Model Number :
M6-M100
Certification :
PED SGS ISO TUV
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000000sets per month
Delivery Time :
1~30days
Packaging Details :
Plywood case,pallet,etc.
Bolt Type :
Stud Bolt Hex Boltt Threaded Rod U-Bolt Hex Socket Screw
Nut Type :
Hex Nut Hex Heavy Nut
Waher Type :
Plain Flat Spring Washer
Bolt Standard :
DIN931 933 912 976 3570/ASME B18.2.1
Nut Standard :
DIN934 ASME B18.2.2
Washer Standard :
DIN125 127/ASME B18.22.1
DIN Size :
M6-M100
ASME Size :
1/4''~5''
Description

309S / 310S Duplex Stainless Steel Fasteners DIN 3570 Big Size U Bolt With Nut For Vehicles

1. Specification

Product Name Stainless Steel 310S U Bolt
Material Stainless Steel 310S
Size M8 - M33
Surface Bright
Packaging Details

Cartons + Plywood cases

Also can be packed as clients' requirements.
Delivery Within 15 days
OEM/ODM Available
Sample Available, 3-5 days after receiving payment

2. U Bolt Dimension

DIMENSION OF U Bolt
Model D P(mm) b(mm) n(mm) L(mm)
max min max min max min
MR8 M8 1.25 21.5 18.5 19 17 41.5 38.5
MR10 M10 1.5 29.5 26.5 23 21 51.5 48.5
MS 7 M10 1.5 29.5 26.5 23 21 51.5 48.5
MS 9 M10 1.5 29.5 26.5 23 21 51.5 48.5
MS 11 M10 1.5 29.5 26.5 23 21 51.5 48.5
MR12 M12 1.75 36.5 33.5 27 25 61.5 58.5
MR14 M12 1.75 41.5 38.5 29 27 66.5 63.5
MS 13 M12 1.75 41.5 38.5 29 27 66.5 63.5
MS 15 M12 1.75 41.5 38.5 30 28 71.5 68.5
MR16 M14 2 46.5 43.5 33 31 76.5 73.5
MR18 M14 2 51.5 48.5 35 33 81.5 78.5
MR20-22 M18 2.5 62 58 45.5 42.5 102 98
MR24-25 M20 2.5 67 63 49.5 46.5 112 108
MR26-28 M22 2.5 72.5 67.5 55.5 52.5 122.5 117.5
MR30-32 M22 2.5 77.5 72.5 59.5 56.5 132.5 127.5
MR33-38 M27 3 88 82 72 68 153 147
MR40-45 M30 3.5 98.5 91.5 82 78 178.5 171.5
MR47-50 M33 3.5 103.5 96.5 91 87 198.5 191.5

3. Material Available

Products Materials Standard & Coating

Special Alloy

BOLTS, HEX CAP

SCREWS, STUDS, NUTS

Nickel and Nickel - Base Alloys - ASTM SF467M, SF468M:

- Monel 400, K500 (UNS N04400, N04405, N05500)

- Inconel 600, 601, 625, 686 (UNS N06625, N06686)

- Hastelloy C4, C22, C276 (UNS N10276)

- Alloy 20, Alloy31 (UNS N08020, N08031) etc.

Copper and Copper - Base Alloys:

- Cupro - Nickel: CuNi 70/30 (C71500), CuNi 90/10 (C70600), C71000

- Aluminum Bronze: C61300, C61400, C63000, C64200,

Titanium and Titanium - Base Alloys:

Titanium Alloy Gr.1, Gr.2, Gr.4, Gr.5, Gr.7, Gr.19 (Ti - 38 - 6 - 44), Gr.23 (Ti - 6Al - 4V),

Gr.32 (Ti - 5 - 1 - 1 - 1) etc.

( R50250, R50400, R50700, R56400, R52400, R58640, R56401, R55111)

Aluminum - Base Alloys:

Aluminum 2024, Aluminum 6061, Aluminum 7075 (A92024, A96061, A97075)

DIN/EN Grade:

(w2.4819, 2.4360, 2.4361, 2.4816, 2.4851, 2.4856, 1.4876, 1.4958 )

ANSI/ASME

B 18.2.1,

ANSI/ASME

B 18.2.2,

ANSI/ASME

B 18.3,

ANSI/ASME

B 18.5,

ANSI/ASME

B 18.6.3,

ANSI/ASME

B 18.22.1

IFI - 111,

IFI - 115,

IFI - 128,

IFI - 136,

IFI - 145,

IFI - 149,

Threaded: UNC/UNRC,

UNF/UNRF,

8UN, 6UN, 12UN

or others

Coating (Carbon

& Alloy):

Xylan,

Blackoxide,

Zincplated,

Nylonpatch,

Chromeplate,

Cadmiumplate

Etc.

Stainless Steel

& High Yield

Strength Bolts& Nuts

ASTM A193, ASTM A320 -

Gr.B5, B6, B6X, B7, B7M, B16, L7, L7A, L7B, L7C, L70, L71, L72, L73

B8, B8C, B8P, B8T, B8N, B8M, B8MN, B8MLCuN, B8, B8M2, B8S, B8SA, B8RA, B8P, B8LN, B8MLN, B8P, B8LN, B8MLN, B8T, B8A, B8CA, B8MA, B8PA, B8TA, B8LNA, B8MLNA, B8NA, B8MNA, B8MLCuNA,

ASTM A453 -

660, 651, 662, 665, 668 Class A/B/C/D etc.

ASTM A354

BC, BD

ASTM A540 -

B21, B22, B23, B24

ASTM A194 -

2, 2H, 2HM, 7M, 3, 4, 7, 16, , 8C, 8M, 8T, 8F, 8P, 8N, A, 8CA, 8MA, 8TA etc.
