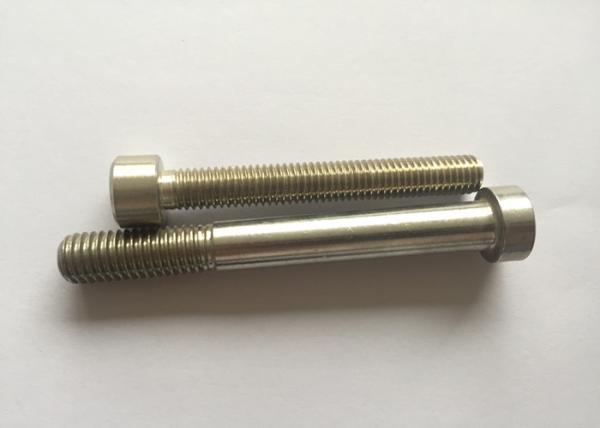

M6 - M100 Nickel Alloy Fasteners UNS N05500 Alloy K500 Monel K500 Bolt Nut Washer
M6 - M100 Nickel Alloy Fasteners UNS N05500 Alloy K500 Monel K500 Bolt Nut Washer
M6 - M100 Nickel Alloy Fasteners UNS N05500 Alloy K500 Monel K500 Bolt Nut Washer
M6 - M100 Nickel Alloy Fasteners UNS N05500 Alloy K500 Monel K500 Bolt Nut Washer
Specifications
Brand Name :
HT
Model Number :
Nickel Alloy fasteners Alloy K500 Monel K500 bolt nut washer
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000/set
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 set per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Bolt, Nut, Washer, Stud bolt, U bolt
Name :
Nickel Alloy fasteners Alloy K500 Monel K500 bolt nut washer
Size :
M6-M100
Finish :
Cold galvanizing, Zinc-Nickel, Black, Cadium plated
Producing standard :
DIN, ASME
Material :
Nickel alloy/stainless steel/duplex stainless
Description

Nickel Alloy fasteners Alloy K500 Monel K500 bolt nut washer

1. Monel K500 bolt material introduction:

Chemistry

Chemical Requirements
Ni Mn Si Fe Al S C
Max 1.50 0.50 2.00 3.15 0.010 0.18
Min 63.00 2.30

Tensile Data

Mechanical Property Requirements
Ultimate Tensile Yield Strength (0.2% OS) Elong.

Hardness

Rockwell C, min.

 Hardness Brinell 3000 kg, min.
Cold Worked/SR Over 1(25.4) to 3
Min 140 KSi 100 KSi 17.0 29 28
Max
Min 965 MPa 690 MPa
Max
Hot Worked/ Aged Hardened
Min 140 KSI 100 KSi 20.0 27 265

​

​

​

2. Types of Monel K500 Anchor bolts

  • Carriage bolt
  • Elevator bolt
  • Flange bolt
  • Hanger bolt
  • Hexagon bolt/tap bolt
  • Lag bolt
  • Machine bolt

3. Monel K500 bolt nut washer specification:

Type Stud Bolt
Hex Bolt (full thread,partial thread)
Thread Rod
U-Bolt U
Hex Socket Cap Screw
Hex Nut
Flat Washer
Spring Washer
Size DIN:Stud Bolt :M6~M100, Hex Bolt :M6~M64
ASME:Stud Bolt:1/4"~5", Hex Bolt :1/2"~2 1/2"
Finish Cold galvanizing ,Hot-dip Galvanizing ,PTFE ,Zinc Nickel ,Black coating ,Plain
Producing Standard ASME:
ASME B18.2.1
ASME B18.2.2
ASME B18.22.1 Plain Washer
DIN:
DIN931 Hex Bolt with partial thread
DIN 933 Hex Bolt with full thread
DIN 912 Hex Socket Cap Screw
DIN 934 Hex Nut
DIN 125 Plain Washer
DIN127 Spring Washer
DIN 975 Threaded Rods
DIN 976 Stud Bolts
DN 3570 U-Bolt
Material Grade Stainless Steel :
304/304L,316/316L,316Ti, 317/317L, 321, 347/347H, 310, 309, A453 660C ,660D
S31254 /254SMO, 904L /1.4539 /N08904, N08367, N08926 / 1.4529
Duplex Steel:
2205 /S31803 ,S32750/2507 ,S32760
Nickel Alloy Steel :
UNS N02200/Ni 200, UNS N02201 /Ni201,
UNS N04400/ Monel 400,Monel K500 ,
UNS N06600/Inconel 600 ,UNS N06601/ Inconel 601 ,Inconel 625 ,
UNS N08800 /Incoloy 800 ,UNS N08810 /Incoloy 800HT ,UNS N08811 /Incoloy 800HT, UNS N08825/ Incoloy 825
UNS N06002 /Hastelloy X, UNS N06022/ Hastelloy C22, UNS N06200/C2000, ,UNS N10276/ Hastelloy C276, UNS N10665 /Hastelloy B2, UNS N10675/Hastelloy B3 ,
UNS N08020 /Alloy 20, UNS N08031/Alloy 31
Carbon Steel : Grade 4.8 ,6.8 ,8.8 ,10.8 ,12.9
Alloy Steel: A193 B7 ,A194 2H , A320 L7,L7M


4. The usage of Monel K500 bolt matched with the flange

M6 - M100 Nickel Alloy Fasteners UNS N05500 Alloy K500 Monel K500 Bolt Nut Washer
