DIN975 Threaded Rods Stainless Steel 304 / 304L Bolt Nut Washer Cold Galvanizing
DIN975 Threaded Rods Stainless Steel 304 / 304L Bolt Nut Washer Cold Galvanizing
DIN975 Threaded Rods Stainless Steel 304 / 304L Bolt Nut Washer Cold Galvanizing
DIN975 Threaded Rods Stainless Steel 304 / 304L Bolt Nut Washer Cold Galvanizing
Specifications
Brand Name :
HT
Model Number :
DIN975 Threaded Rods Stainless Steel 304/304L Duplex Stainless Steel Fasteners
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30-35 working days
Packaging Details :
wooden case, wooden pallet
Product Type :
bolt nut washer
Name :
DIN975 Threaded Rods Stainless Steel 304/304L Duplex Stainless Steel Fasteners
Size :
M6-M100
Finish :
Cold galvanizing, Hot-dip Galvanizing, PTFE, Zinc Nickel, Black coating, Plain
Standard :
DIN931 DIN933 DIN912 DIN934 DIN125 DIN127
Material :
Nickel alloy/stainless steel/duplex stainless
Description

DIN975 Threaded Rods Stainless Steel 304/304L Duplex Stainless Steel Fasteners

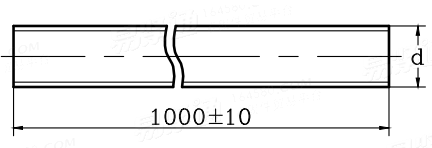

1.DIN 975 - 1986 Threaded Rods

DIN975 Threaded Rods Stainless Steel 304 / 304L Bolt Nut Washer Cold Galvanizing

Screw Thread
d
M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52)
P Coarse Thread Pitch
Fine Thread Pitch
Fine Thread Pitch
per 1000 units ≈ kg
2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5 5
1.5 1.5 2 2 2 2 3 3 3 3 3 3
/ / / / / / / / / / / /
2080 2540 3000 3850 4750 5900 6900 8200 9400 11000 12400 14700

Screw Thread
d

M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12 (M14) M16 (M18)
P Coarse Thread Pitch
Fine Thread Pitch
Fine Thread Pitch
per 1000 units ≈ kg
0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5
/ / / / / / / 1 1.25 1.5 1.5 1.5 1.5
/ / / / / / / / 1 1.25 / / /
18.7 30 44 60 78 124 177 319 500 725 970 1330 1650

2.Threaded Rod

Grade 4.6 / 8.8 / 10.9 / B7

1 Meter Lengths

Coarse/Fine Thread

R001 – 975-4.6 Bare Steel
R002 – 975-4.6 Zinc Plated
R007 – 975-4.6 Bare Steel Left Hand Thread
R003 – 975-8.8 Bare Steel
R103 – 975-8.8 Hot Dipped Galvanized (ISO FIT)
R005 – 975-B7 Bare Steel
R006 – 975-10.9 Bare Steel

DIN 975
M2 1 R001-002-0000
M2.5 1 R001-2.5-0000
M3 1 R001-003-0000
M4 1 R001-004-0000 1 R002-004-0000
M5 1 R001-005-0000 1 R002-005-0000 1 R003-005-0000
M6 1 R001-006-0000 1 R002-006-0000 1 R007-006-0000 1 R003-006-0000 1 R006-006-0000
M7 1 R002-007-0000
M8 1 R001-008-0000 1 R002-008-0000 1 R007-008-0000 1 R003-008-0000 1 R103-008-0000 1 R005-008-0000 1 R006-008-0000
M10 1 R001-010-0000 1 R002-010-0000 1 R007-010-0000 1 R003-010-0000 1 R103-010-0000 1 R005-010-0000 1 R006-010-0000
M12 1 R001-012-0000 1 R002-012-0000 1 R007-012-0000 1 R003-012-0000 1 R103-012-0000 1 R005-012-0000 1 R006-012-0000
M14 1 R001-014-0000 1 R002-014-0000 1 R007-014-0000 1 R003-014-0000 1 R103-014-0000 1 R005-014-0000 1 R006-014-0000
M16 1 R001-016-0000 1 R002-016-0000 1 R007-016-0000 1 R003-016-0000 1 R103-016-0000 1 R005-016-0000 1 R006-016-0000
M18 1 R001-018-0000 1 R002-018-0000 1 R007-018-0000 1 R003-018-0000 1 R103-018-0000 1 R005-018-0000 1 R006-018-0000
M20 1 R001-020-0000 1 R002-020-0000 1 R007-020-0000 1 R003-020-0000 1 R103-020-0000 1 R005-020-0000 1 R006-020-0000
M22 1 R001-022-0000 1 R002-022-0000 1 R003-022-0000 1 R103-022-0000 1 R005-022-0000 1 R006-022-0000
M24 1 R001-024-0000 1 R002-024-0000 1 R003-024-0000 1 R103-024-0000 1 R005-024-0000 1 R006-024-0000
M27 1 R001-027-0000 1 R003-027-0000 1 R005-027-0000 R006-027-0000
M30 1 R001-030-0000 1 R003-030-0000 1 R103-030-0000 1 R005-030-0000 1 R006-030-0000
M33 1 R001-033-0000 1 R006-033-0000
M36 1 R001-036-0000 1 R003-036-0000 1 R006-036-0000
M39 1 R001-039-0000
M42 1 R001-042-0000
M45 1 R001-045-0000
M48 1 R001-048-0000
Coarse Thread
4.6 8.8 B7 10.9
Bare Steel Zinc Bare – Left Hand Bare Steel H.D.G Bare Steel
Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order #
Fine Thread
d1 4.6 10.9
Pkg. Order # Pkg. Order #
M8 x 1 1 R001-008-0001
M10 x 1 1 R001-010-0001
M10 x 1.25 1 R001-010-1.25 1 R006-010-1.25
M12 x 1.25 1 R001-012-1.25 1 R006-012-1.25
M14 x 1.5 1 R001-014-01.5 1 R006-014-01.5
M16 x 1.5 1 R001-016-01.5 1 R006-016-01.5
M18 x 1.5 1 R001-018-01.5 1 R006-018-01.5
M20 x 1.5 1 R001-020-01.5 1 R006-020-01.5
M22 x 1.5 1 R001-022-01.5 1 R006-022-01.5
M24 x 2 1 R001-024-0002 1 R006-024-0002

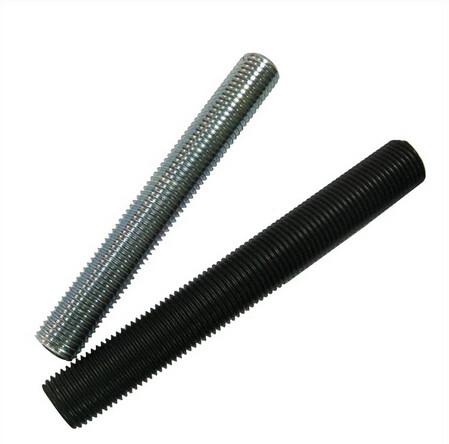

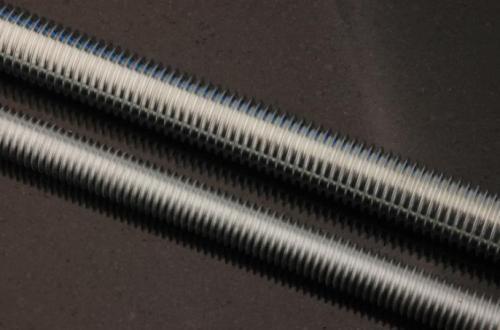

3.Product Picture

DIN975 Threaded Rods Stainless Steel 304 / 304L Bolt Nut Washer Cold Galvanizing
