Specifications
Brand Name :
HT
Model Number :
SS 304
Certification :
PED/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1-30 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 month
Delivery Time :
5-8 days
Packaging Details :
Seaworthy Plywood\wooden Pallets
Product name :
Duplex Stainless Steel Pipe Fittings
Application :
pipeline project
Packing :
Seaworthy Plywood\wooden Pallets
Standard :
ANSI JIS DIN ASME
Place of Orig :
Henan China
Certificate :
ISO9001:2008
Dimensions :
Customers'demand
Description

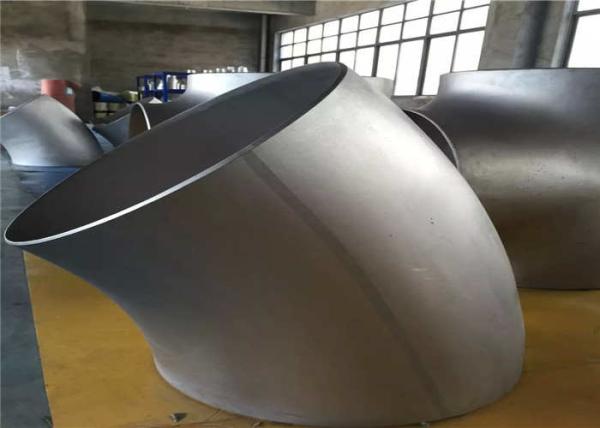

16" Stainless Steel Pipe Compression Fittings Elbow Ss 304l Custom Dimensions

1. Compared with 304 stainless steel, the advantages of duplex stainless steel are as follows:

(1) the yield strength of austenitic stainless steel is twice higher than that of ordinary austenitic stainless steel, and it has enough plastic toughness for forming. The wall thickness of the tank or pressure vessel made of duplex stainless steel is 30-50% less than that of austenite, which is helpful to reduce the cost.

(2) it has excellent resistance to stress corrosion cracking. Even the duplex stainless steel with the lowest alloy content has higher resistance to stress corrosion cracking than the austenitic stainless steel, especially in the environment containing chloride ions. Stress corrosion is an outstanding problem that is difficult to solve for ordinary austenitic stainless steel.

(3) the corrosion resistance of 2205 duplex stainless steel, which is widely used in many media, is better than 316L austenitic stainless steel, while the super duplex stainless steel has very high corrosion resistance. In some media, such as acetic acid, formic acid, etc., it can even replace high alloy austenitic stainless steel and even corrosion-resistant alloy.

(4) it has good local corrosion resistance. Compared with austenitic stainless steel with the same alloy content, its wear resistance and fatigue corrosion resistance are better than austenitic stainless steel.

(5) compared with austenitic stainless steel, the coefficient of linear expansion is lower, close to carbon steel, suitable for connection with carbon steel, which has important engineering significance, such as production of composite plate or lining, etc.

(6) no matter under the condition of dynamic or static load, it has higher energy absorption capacity than austenitic stainless steel, which has obvious advantages in dealing with sudden accidents such as collision, explosion, etc., and has practical application value.

2.About SS 304.

Grade 304 is a standard "18/8" stainless. It is the most versatile and most widely used stainless steel available, even though a wide range of alternatives are available; and has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing. This means that this grade steel is dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications, it is common to use special "304DDQ" (Deep Drawing Quality) variants. Grade 304 can be readily braked or roll-formed into a variety of components for applications in the industrial, architectural, and transportation fields. It also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

Composition:

Grade

 C Mn Si P S Cr Mo Ni N
304 min. - - - - - 18 - 8 -
max. 0.08 2 0.75 0.045 0.03 20 10.5 0.1
304L min. - - - - - 18 - 8 -
max. 0.03 2 0.75 0.045 0.03 20 12 0.1
304H min. 0.04 - - -0.045 - 18 - 8 -
max. 0.1 2 0.75 0.03 20 10.5

Mechanical Properties:

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50 mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201
304H 515 205 40 92 201

Physical Properties:

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100 °C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100 °C 0-315 °C 0-538 °C at 100 °C at 500 °C
304/L/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

3.Quality assurance system:

16

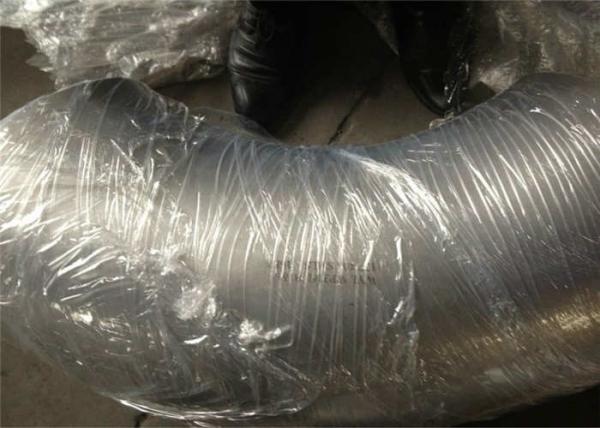

4.Packaging and transportation:

16
