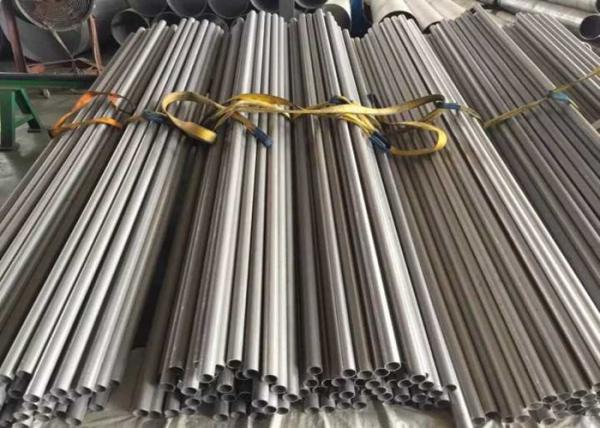

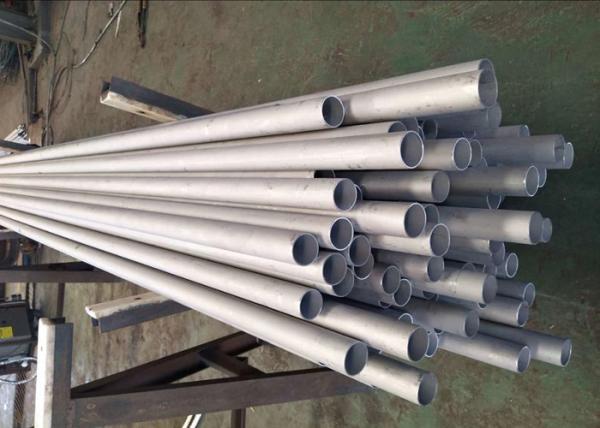

1/2 - 48 SCH5S - SCHXXS Alloy 20 EFW Welded Pipe Tube UNS N08020
1/2 - 48 SCH5S - SCHXXS Alloy 20 EFW Welded Pipe Tube UNS N08020
1/2 - 48 SCH5S - SCHXXS Alloy 20 EFW Welded Pipe Tube UNS N08020
1/2 - 48 SCH5S - SCHXXS Alloy 20 EFW Welded Pipe Tube UNS N08020
Specifications
Brand Name :
HT
Model Number :
1/2"-48" SCH5S-SCHXXS UNS N08020 Alloy 20 EFW welded pipe tube
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
wooden case, wooden pallet
Product Type :
Flange, Disc, Foring, Shaft Sleeves
Name :
1/2"-48" SCH5S-SCHXXS UNS N08020 Alloy 20 EFW welded pipe tube
Size :
1/2"-60"
Class :
150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Surface :
oil rusted, yellow
Material :
Nickel alloy/stainless steel/duplex stainless
Description

1/2"-48" SCH5S-SCHXXS UNS N08020 Alloy 20 EFW welded pipe tube

1. ASTM b729 uns n08020 square steel pipe

Size OD 20x20-250x250mm
Wall Thickness 0.5mm-6mm
Length 5.8m, 6m, 11.8m
Steel material Duplex Stainless steel: S31803 S32750 S32760 S31254 N08904
Nickel Alloy Steel: Monel 400, Nickel 200/201; Incoloy 800/800H/800HT; Inconel 625, Incoloy 926, Alloy 20
Stainless Steel: 31Ti, 317L, 347, 347H, 304H
Standard ASME B36.10, ASME B36.19
Usage 1)low pressure liquid, water, gas, oil, line pipe
2)construction
3)fence, door pipe
Ends 1) Plain
2) Beveled
3) Thread with Coupling or cap
4) Chamfer
5) Groove
6) Screw
End Protector 1) Plastic pipe cap
2) Iron protector
Surface Treatment 1) Bared
2) Black Painted (varnish coating)
3) Galvanized
4) Oiled
5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
Technique Electronic Resistance Welded (ERW )
Electronic Fusion Welded (EFW)
Double Submerged Arc Welded (DSAW)
Welded Line Type Longitudinal
Section Shape Round,Round,Square,Rectangular
Inspection With Hydraulic Testing, Eddy Current , Infrared Test
Package 1) Bundle
2) Bags
Delivery 1) Container
2) Bulk carrier
Delivery Time 50-60 working days

2. The end of Alloy 20 steel pipe and length

PIPE LENGTH

The terms used to designate the length of steel pipes are:

  • “SRL” (“single random length”): means that the pipe has any random size between 5-7 meters; generally, pipes below 2 inches in diameter are manufactured with SRL, i.e. shorter (or half measures) of larger bore pipes
  • “DRL” (double random length): meaning that the pipe has any random size between 11-13 meters. Pipes above 2 inches in diameter are available in DRL size
  • Cut Lengths: pipes are cut according to project specification. Custom sizes are used to save welding costs at the installation site.

The term “random” refers to the fact that the pipe mill can control that the pipe length is between a min-max value, but cannot control the exact length of every single pipe (which will be variable, within the given range).

A double random length pipe has an expected length twice the length of an SRL pipe.

PIPE END TYPES

The term “pipe end” refers to how the pipe is finished at its extremities.

The common pipe end types are:

  • Plain ends (PE): plain ends are generally used for smaller diameters and require slip-on flanges and socket weld fittings. Plain ends are also common for stainless, duplex and nickel-alloy pipes
  • Beveled ends (BE): this is the most common pipe end type (beveled end pipes are joined by welding).
  • Threaded ends (TE): threaded ends (which are generally NPT as per ASME B1.20.1 for petrochemical pipes) require threaded fittings and flanges and are used for smaller size pipelines or gas lines
  • Threaded and coupled ends (T&C), generally used for gas distribution
  • Grooved ends (example Victaulic pipes): these are pipes that allow a quick connection, used for non-critical applications

3. Alloy 20 Pipe Size Chart

Nominal O.D. Schedule Number
Pipe Size inches 10 20 30 40 60 80 100 120 140 160 XXH
1/8" .405" Wall Thick. 0.049 0.057 0.068 0.095
WT./FT. 0.190 0.210 0.240 0.310
1/4" .540" Wall Thick. 0.065 0.073 0.088 0.119
WT./FT. 0.330 0.360 0.430 0.540
3/8" .675" Wall Thick. 0.065 0.073 0.091 0.126
WT./FT. 0.420 0.470 0.570 0.740
1/2" .840" Wall Thick. 0.083 0.095 0.109 0.147 0.188 0.294
WT./FT. 0.670 0.760 0.850 1.09 1.31 1.72
3/4" 1.050" Wall Thick. 0.083 0.095 0.113 0.154 0.219 0.308
WT./FT. 0.860 0.970 1.13 1.48 1.95 2.44
1" 1.315" Wall Thick. 0.109 0.114 0.133 0.179 0.250 0.358
WT./FT. 1.41 1.46 1.68 2.17 2.85 3.66
1 1/4" 1.660" Wall Thick. 0.109 0.117 0.140 0.191 0.250 0.382
WT./FT. 1.81 1.93 2.27 3.00 3.77 5.22
1 1/2" 1.900" Wall Thick. 0.109 0.125 0.145 0.200 0.281 0.400
WT./FT. 2.09 2.37 2.72 3.63 4.86 6.41
2" 2.375" Wall Thick. 0.109 0.125 0.154 0.218 0.344 0.436
WT./FT. 2.64 3.01 3.66 5.03 7.47 9.04
2 1/2" 2.875" Wall Thick. 0.120 0.188 0.203 0.276 0.375 0.552
WT./FT. 3.53 5.40 5.80 7.67 10.02 13.71
3" 3.5" Wall Thick. 0.120 0.188 0.216 0.300 0.438 0.600
WT./FT. 4.34 6.66 7.58 10.26 14.34 18.60
3 1/2" 4.0" Wall Thick. 0.120 0.188 0.226 0.318 0.636
WT./FT. 4.98 7.66 9.12 12.52 22.87
4" 4.50" Wall Thick. 0.120 0.188 0.237 0.337 0.438 0.531 0.674
WT./FT. 5.62 8.67 10.80 15.00 19.02 22.53 27.57
5" 5.563" Wall Thick. 0.134 0.258 0.375 0.500 0.625 0.750
WT./FT. 7.78 14.63 20.80 27.06 32.99 38.59
6" 6.625" Wall Thick. 0.134 0.280 0.432 0.562 0.719 0.864
WT./FT. 9.30 18.99 28.60 36.43 45.39 53.21
8" 8.625" Wall Thick. 0.148 0.250 0.277 0.322 0.406 0.500 0.594 0.719 0.812 0.906 0.875
WT./FT. 13.41 22.38 24.72 28.58 35.67 43.43 51.00 60.77 67.82 74.76 72.49
10" 10.75" Wall Thick. 0.165 0.250 0.307 0.365 0.500 0.594 0.719 0.844 1.000 1.125 1.000
WT./FT. 18.67 28.06 34.27 40.52 54.79 64.49 77.10 89.38 104.23 115.75 104.23
12" 12.75" Wall Thick. 0.180 0.250 0.330 0.406 0.562 0.688 0.844 1.000 1.125 1.312 1.000
WT./FT. 24.19 33.41 43.81 53.57 73.22 88.71 107.42 125.61 139.81 160.42 125.61
14" 14" Wall Thick. 0.250 0.312 0.375 0.438 0.594 0.750 0.938 1.094 1.250 1.406
WT./FT. 36.75 45.65 54.62 63.50 85.13 106.23 130.98 150.93 170.37 189.29
16" 16" Wall Thick. 0.250 0.312 0.375 0.500 0.656 0.844 1.031 1.219 1.438 1.594
WT./FT. 42.09 52.32 62.64 82.85 107.60 136.74 164.98 192.61 223.85 245.48
18" 18" Wall Thick. 0.250 0.312 0.438 0.562 0.750 0.938 1.156 1.375 1.562 1.781
WT./FT. 47.44 58.99 82.23 104.76 138.30 171.08 208.15 244.37 274.48 308.79
20" 20" Wall Thick. 0.250 0.375 0.500 0.594 0.812 1.031 1.281 1.500 1.750 1.969
WT./FT. 52.78 78.67 104.23 123.23 166.56 209.06 256.34 296.65 341.41 379.53
22" 22" Wall Thick. 0.250 0.375 0.500 0.875 1.125 1.375 1.625 1.875 2.125
WT./FT. 58.13 86.69 114.92 197.60 251.05 303.16 353.94 403.38 451.49

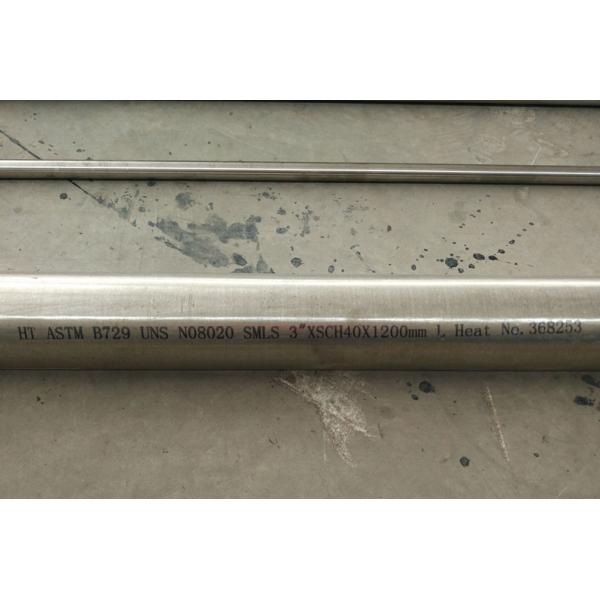

4. Alloy 20 steel pipe we export before for your reference

1/2
