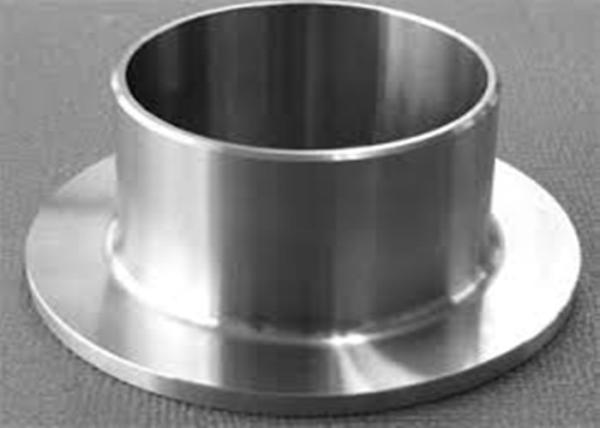

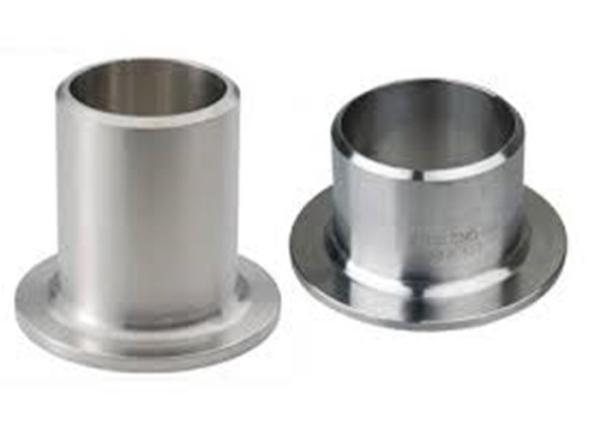

1/2 - 48 ASME B16.9 Inconel 625 Lap Joint Stub End SCH5S - SCHXXS Wall Thickness
1/2 - 48 ASME B16.9 Inconel 625 Lap Joint Stub End SCH5S - SCHXXS Wall Thickness
1/2 - 48 ASME B16.9 Inconel 625 Lap Joint Stub End SCH5S - SCHXXS Wall Thickness
1/2 - 48 ASME B16.9 Inconel 625 Lap Joint Stub End SCH5S - SCHXXS Wall Thickness
Specifications
Brand Name :
HT
Model Number :
1/2“-48” ASME B16.9 Lap Joint Stub End Inconel 625 Nickel Alloy Pipe Fittings
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 1000/piece
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
30-35 working days
Packaging Details :
wooden case, wooden pallet
Standard :
ASME B16.9 / ASME B16.28 / ASME B16.49
Name :
1/2“-48” ASME B16.9 Lap Joint Stub End Inconel 625 Nickel Alloy Pipe Fittings
Size :
1/2"-48"
Wall thickness :
SCH5S-SCHXXS
Type :
30° 45° 60° 90° Long Radius Short Radius
Material :
Nickel alloy/stainless steel/duplex stainless
Description

1/2“-48” ASME B16.9 Lap Joint Stub End Inconel 625 Nickel Alloy Pipe Fittings

1.Lap Joint Stub End Inch Dimensions as per ASME B16.9

1/2

NPS ODMax ODMin LPF SPF R G
1/2 0.896 0.809 3.00 2.00 0.12 1.38
3/4 1.106 1.019 3.00 2.00 0.12 1.69
1 1.376 1.284 4.00 2.00 0.12 2.00
1-1/4 1.716 1.629 4.00 2.00 0.19 2.50
11/2 1.965 1.869 4.00 2.00 0.25 2.88
2 2.456 2.344 6.00 2.50 0.31 3.62
2-1/2 2.966 2.844 6.00 2.50 0.31 4.12
3 3.596 3.469 6.00 2.50 0.38 5.00
3-1/2 4.096 3.969 6.00 3.00 0.38 5.50
4 4.593 4.469 6.00 3.00 0.44 6.19
5 5.683 5.532 8.00 3.00 0.44 7.31
6 6.743 6.594 8.00 3.50 0.50 8.50
8 8.743 8.594 8.00 4.00 0.50 10.62
10 10.913 10.719 10.00 5.00 0.50 12.75
12 12.913 12.719 10.00 6.00 0.50 15.00
NPS ODMax ODMin LPF SPF R G
14 14.170 13.969 12.00 6.00 0.50 16.25
16 16.180 15.969 12.00 6.00 0.50 18.50
18 18.190 17.969 12.00 6.00 0.50 21.00
20 20.240 19.969 12.00 6.00 0.50 23.00
22 22.240 21.969 12.00 6.00 0.50 25.25
24 24.240 23.969 12.00 6.00 0.50 27.25

GENERAL NOTES:

(a) All dimensions are in inches.
(b) See Table I-12 for tolerances.
(c) Service conditions and joint construction often dictate stub end length requirements. Therefore, the purchaser must specify long or
short pattern fitting when ordering.

NOTES:

(1) Gasket face finish shall be in accordance with ASME B16.5 for raised face flanges.
(2) The lap thickness T shall not be less than nominal pipe wall thickness. See Table I-12 for tolerance.
(3) When short pattern stub ends are used with larger flanges in Classes 300 and 600, with most sizes in Classes 900 and higher, and
when long pattern stub ends are used with larger flanges in Classes 1500 and 2500, it may be necessary to increase the length of the
stub ends in order to avoid covering the weld with the flange. Such increases in length shall be a matter of agreement between the
manufacturer and purchaser.
(4) When special facings such as tongue and groove, male and female, etc., are employed, additional lap thickness must be provided and
such additional thickness shall be in addition to (not included in) the basic length F.
(5) These dimensions conform to the radius established for lap joint flanges in ASME B16.5.
(6) This dimension conforms to standard machined facings shown in ASME B16.5. The back face of the lap shall be machined to conform
to the surface on which it seats. Where ring joint facings are to be applied, use dimension K as given in ASME B16.5.


2.Dimensions Lap Joint Stub Ends schedule STD & XS ASME B16.9

1/2

Schedule STD

NPS OD T G F R kg
1/2 21.3 2.77 34.9 76.2 3.18 0.16
3/4 26.7 2.87 42.9 76.2 3.18 0.23
1 33.4 3.38 50.8 101.6 3.18 0.29
1.1/4 42.2 3.56 63.5 101.6 4.76 0.45
1.1/2 48.3 3.68 73 101.6 6.35 0.54
2 60.3 3.91 92.1 152.4 7.94 1
2.1/2 73 5.16 104.8 152.4 7.94 1.5
3 88.9 5.49 127 152.4 9.53 2.1
3.1/2 101.6 5.74 139.7 152.4 9.53 2.5
1/2
NPS OD T G F R kg
4 114.3 6.02 157.2 152.4 11.11 3
5 141.3 6.55 185.7 203.2 11.11 5.4
6 168.3 7.11 215.9 203.2 12.70 7.3
8 219.1 8.18 269.9 203.2 12.70 11.6
10 273.1 9.27 323.9 254 12.70 18
12 323.9 9.53 381 254 12.70 21
14 355.6 9.53 412.8 304.8 12.70 28
16 406.4 9.53 469.9 304.8 12.70 34
18 457.2 9.53 533.4 304.8 12.70 39
20 508 9.53 584.2 304.8 12.70 44
24 609.6 9.53 692.2 304.8 12.70 57

Dimensions are in millimeters unless otherwise indicated. Weights are in kilograms and approximately given.

Schedule XS

NPS OD T G F R kg
1/2 21.3 3.73 34.9 76.2 3.18 0.2
3/4 26.7 3.91 42.9 76.2 3.18 0.3
1 33.4 4.55 50.8 101.6 3.18 0.4
1.1/4 42.2 4.85 63.5 101.6 4.76 0.6
1.1/2 48.3 5.08 73 101.6 6.35 0.7
2 60.3 5.54 92.1 152.4 7.94 1.4
2.1/2 73 7.01 104.8 152.4 7.94 2
3 88.9 7.62 127 152.4 9.53 2.9
3.1/2 101.6 8.08 139.7 152.4 9.53 3.4
1/2
NPS OD T G F R kg
4 114.3 8.56 157.2 152.4 11.11 4.1
5 141.3 9.53 185.7 203.2 11.11 7.5
6 168.3 10.97 215.9 203.2 12.70 10
8 219.1 12.70 269.9 203.2 12.70 16
10 273.1 12.70 323.9 254 12.70 24
12 323.9 12.70 381 254 12.70 29
14 355.6 12.70 412.8 304.8 12.70 38
16 406.4 12.70 469.9 304.8 12.70 43
18 457.2 12.70 533.4 304.8 12.70 49
20 508 12.70 584.2 304.8 12.70 63
24 609.6 12.70 692.2 304.8 12.70 76

Dimensions are in millimeters unless otherwise indicated. Weights are in kilograms and approximately given.

Dimensional Tolerances of Stub Ends ASME B16.9

Nominal Pipe Size 1/2 up to 2.1/2 3 to 3.1/2 4 5 to 8 10 to 18 20 to 24
Outside Diameter at Welding End (OD) + 1.6
- 0.8		 1.6 1.6 + 2.29
- 1.6		 + 4.06
- 3.05		 + 6.35
- 4.83
Overall Length (F) 1.6 1.6 1.6 1.6 2 2
Outside Diameter of Lap (G) + 0
- 0.76		 + 0
- 0.76		 + 0
- 0.76		 + 0
- 0.76		 + 0
- 1.6		 + 0
- 1.6
Thickness of Lap (T) + 1.52
- 0		 + 1.52
- 0		 + 1.52
- 0		 + 1.52
- 0		 + 1.52
- 0		 + 1.52
- 0
Fillet Radius of Lap (R) + 0
- 0.76		 + 0
- 0.76		 + 0
- 1.6		 + 0
- 1.6		 + 0
- 1.6		 + 0
- 1.6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated.
