DPJ-100 Single Layer Roll Feeding Cup Lid Forming Machine

DPJ-145 Single Layer Roll Feeding Bowl Lid Forming Machine

DPJ-200 Single Layer Roll Feeding Super Bowl Lid Forming Machine

1. The equipment types of cup lid forming machine include PE PVC cup lid forming machine, plastic cup lid forming machine, disposable plastic cup lid machine, automatic cup lid forming machine, coffee cup lid machine and so on. Blow molding or blister molding, punching, punching, and fully automatic process operation are used to complete the molding, punching, trimming, stacking, and counting at one time. It has the characteristics of low energy consumption, less labor, and high production efficiency. Widely used in the production of food, medicine, hardware, PVC, PET and other industries.

2. All parts of the cup lid forming machine in contact with the plastic sheet are made of stainless steel or non-toxic materials, in line with GMP requirements.

The main motor of the cup lid forming machine adopts frequency conversion speed regulation: the number of punching times can be adjusted from 10 to 20 times per minute, and the appropriate number of punching times can be set according to the length of the stroke and the difficulty of forming.

The pneumatic system of the cup lid forming machine adopts photoelectric control, programmable through PLC, so that each mechanism can run accurately and ensure the stability of desynchronization in multi-station and long-distance operation of packaged products.

Technical Parameters

Customs code: 8441309000

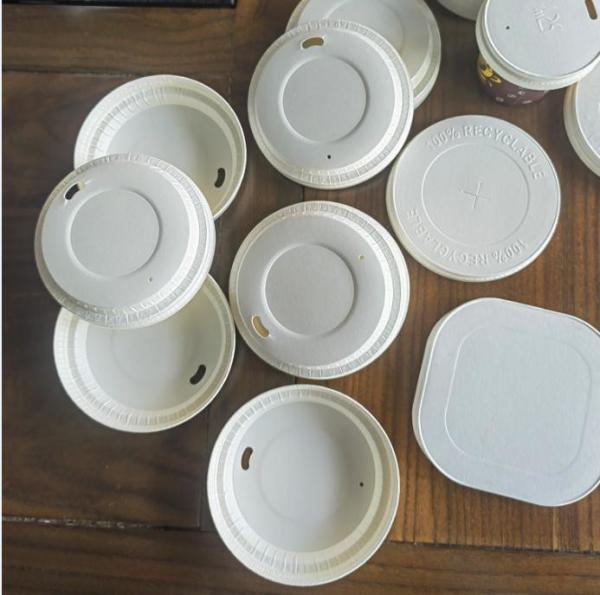

Paper cover specifications:

height (8-15) mm, DPJ-100/S100 diameter (60 -100) mm, speed: (70-100) pieces per minute.

Height (8-15) mm, DPJ-145/S145 straight strength (100-140) speed: (60-75) per minute.

Height (8-15) mm, DPJ-200/S200 diameter (140 -200) mm, speed: (45-60) pieces/min

Applicable paper: single and double PE/PLA coated paper, coated paper, glazing coated paper (250-480g/m2)

Power: 10kw

Power supply: AC380V 3-phase, 50Hz (can be customized according to customers)

Working air source: air consumption 0.02 cubic meters per minute, working air pressure 0.3MPa

The total weight of the equipment: Cup lid machine .2100KG.

Bowl cover machine.2500KG.

Giant bowl machine 3300KG.

Cup lid machine packaging size 1920*1640*2000

Bowl cover machine packaging size 2200*1880*2100

Giant bowl lid machine packaging size 2600*1850*2200
