Specifications
Brand Name :
Yaoqiang
Model Number :
YJ-60B/80B
Certification :
CE ISO
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
$11000
Supply Ability :
10pcs/month
Delivery Time :
20 days
Packaging Details :
Normal
Thickness :
80mm
Flange Width :
200-1000mm
Web Height :
More Than 160mm
Straightening Speed :
6m/Min
Power :
36kw
Weight :
7000-28000kg
Web Clamping System :
2 sets
Flange Clamping System :
3 sets
Need User to Prepare :
Foundation and Foundation Drawing
Description

Brief Description:

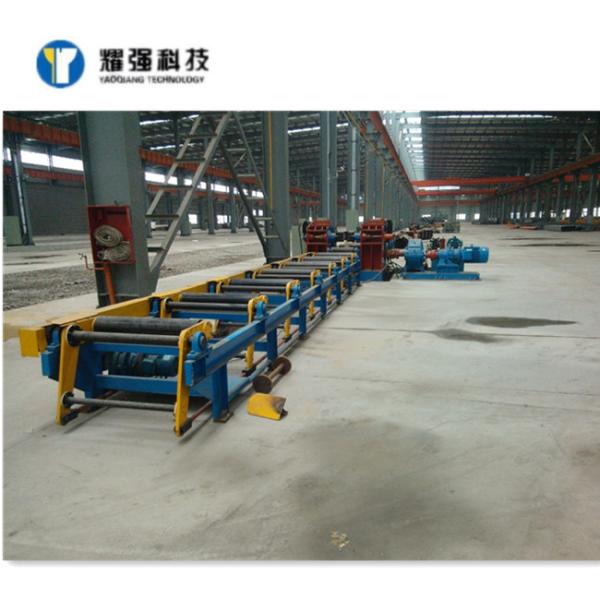

H-beam Flange Straightening machine is a kind of H-beam straightening equipment developed byour company.Its main transmission system is adopted with 22KW motor and driven by cycloidal gear speed reducer,with high transmission efficiency and rapid straightening speed.All the straightening rollers are all made of quality steel ,and have gone through advanced heat-treatment,insuring long-term stability and usage without defects as crack,etc.Besides,all the parts and components are reinforced.The machine is equipped with operating box so as to ensure easy operation.

Straightener Steel Structure Straightening Machine Q235 Q345 Beam Flange Hydraulic

Main Features:

1.Equipment structure types: stationary;

2.The correct form: mechanical or hydraulic;

3.Equipment usage: simple structure,convenient operation,capacity,correct speed,high degree of

automatic;

4.Correction: high quality alloy wheel material after heat treatment,surface hardness and endurable

Wear-resisting performance;

5.Electrical system: the cabinet control.

Straightener Steel Structure Straightening Machine Q235 Q345 Beam Flange Hydraulic

Hydraulic type Straightening Machine Main features:

1.YJ series hydraulic straightening Machine is used for straighteing the deformation of steel H beam/I beam web and flange;

2.Hydraulic straightening way has large capacity,wide working range,highly automatic;

3.The straightening wheel and active roller are made from good quality alloy steel,which has been heat treated well,thus ensure long working life;

4.This series includes YJ-60B,YJ-60C,YJ-80B;

5.Two sides' active rollers are elevated synchronously by hydraulic device.Easy to operation;

6.The hydraulic bump station has its own system,which can work for a long time.

Model HYJ-600 HYJ-800 YTJ-60B YTJ-80B
Flange edge width 150-600mm 200-800mm 180-800mm 600-1000mm
Flange edge thickness ≤20mm ≤40mm ≤60mm ≤80mm
Min web height 160mm 350mm 350mm 500mm
Material Q235A Q235A Q345A Q235Mn
Speed 5.7m/min 18m/min 6.37m/min 6m/min
Engine power 9kw 24.2kw 37kw 44kw
Outside dimension(mm) 3355*890*1573 3500*1500*1700 3120*4100*2100 4700*25001*2400
Weight 7000kg 9000kg 25000kg 28000kg

Straightener Steel Structure Straightening Machine Q235 Q345 Beam Flange Hydraulic
