Specifications
Brand Name :
Yaoqiang
Model Number :
HGZ-30
Certification :
CE ISO
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
200-5000
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100pcs/month
Delivery Time :
10days
Packaging Details :
standard packing
Max loading weight :
40000kg
Motor :
3kw
Drive mode :
double driver
Cylinder diameter :
500-4000mm
Roller linear speed :
6-60m/h
Wheel quantity :
4 wheels
Wheel material :
Rubber and steel
Lead time :
7 days
Warranty :
1 year
Description

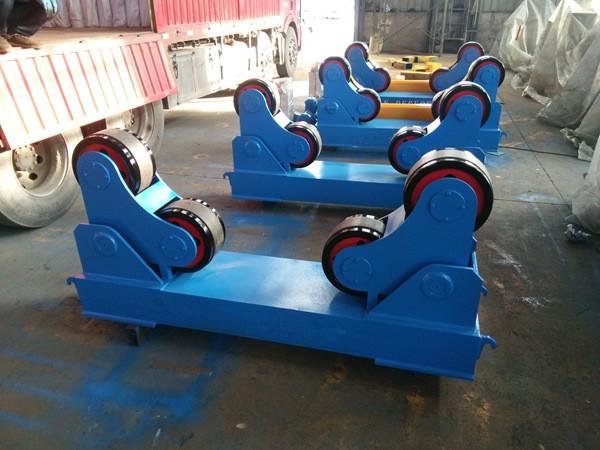

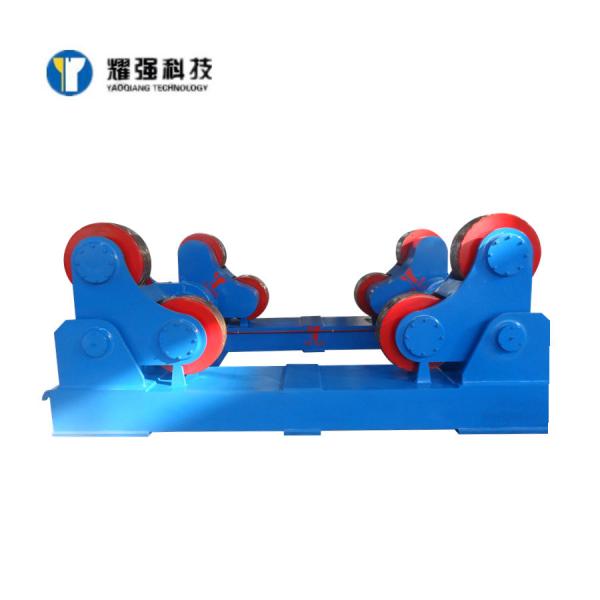

Self -tuned welding roller rack

Self -adjusted welding roller rack is to use the friction between active rollers and welded parts to drive the transformer equipment rotating.

The corner of the wheel set can be automatically adjusted according to the diameter of the workpiece and can automatically adjust the heart. It is mainly used for the assembly or welding of cylindrical workpieces such as pipelines, containers, boilers, oil tanks.

When supporting the welding operator and welding power supply, the inner and outer seams and inner and outer ring seams of the workpiece can be achieved.

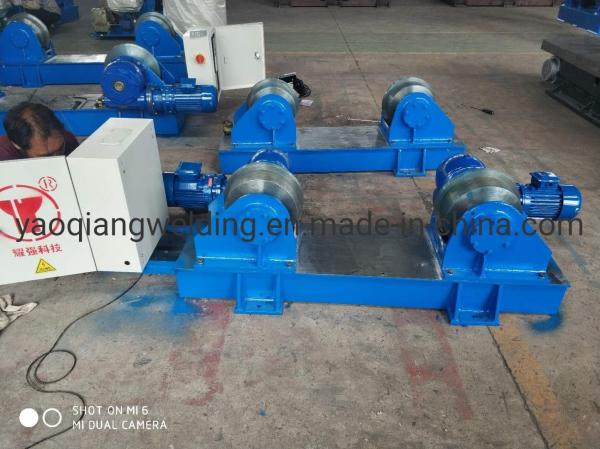

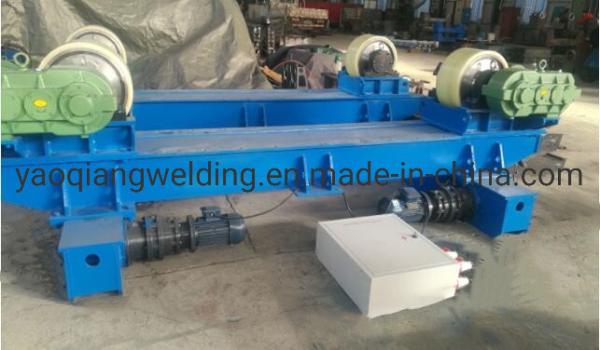

Adjustable welding roller rack

The adjustable welded roller rack consists of a active wheel and a trap. The active rolling wheels are driven by two motors to drive.

The speed regulating controller is used to regulate the speed adjustment or electromagnetic speed regulation through the frequency frequency frequency speed.

The line speed of the workpiece turn is 6-60 meters/hour, which can meet the needs of various welding such as hand-welding, automatic stacking welding, and automatic arc welding, as well as the use of various rivets for workpieces. The spacing of the master and the rolling wheel can be adjusted through the screw or nail to meet the welding requirements of different specifications of workpieces.

Self Adjustable Welding Rotators Self Tuned Roller Rack For Pipe 4000 Mm 60m/H

type max load weight(kg) metallic wheel rubber wheel cylinder D roller linear speed(m/h) motor power way of setting

HGZ-05 5000 244 20 250 100 250 2300 6-60 0.75 / AC frequency conversion
stepless speed regulation
HGZ-10 10000 294 25 300 120 320 2800 1.1 /
HGZ-20 20000 344 30 350 120 500 3500 1.5 /
HGZ-30 30000 344 30 350 120 500 4000 2.2 /
HGZ-40 40000 394 40 400 120 600 4200 3 2*1.5
HGZ-50 50000 394 40 400 120 600 4500 3 2*1.5
HGZ-60 60000 444 50 450 120 750 4800 4 2*2.2
HGZ-80 80000 494 60 500 120 850 5000 4 2*3
HGZ-100 100000 494 80 500 120 1000 5500 5.5 2*3
HGZ-150 150000 / / 600 280 1100 6000 7.5 2*4
HGZ-250 250000 / / 700 300 1200 7000 11 2*5.5

Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is for producing.
