1200mm Rotary Positioner Table
1200mm Rotary Positioner Table
1200mm Rotary Positioner Table
1200mm Rotary Positioner Table
Specifications
Brand Name :
yaoqiang
Model Number :
HB serirs
Place of Origin :
Jiangsu China
MOQ :
1 set
Price :
US $1,500-30,000/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
20 days
Packaging Details :
standard packing
Size of Table :
1200mm
Speed of Table :
0.67
Turning Power :
1.1kw
Max Gravity Distance :
150mm
Max Turning Distance :
2050mm
Description

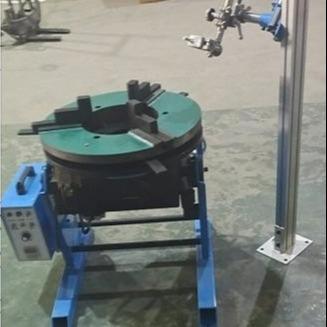

Pipe Welding Positioner with 1200mm Faceplate for Rotation and Tilting Welding and Positioning Equipment

Quickly Details:
Type: Fixed Welding Positioner / Welding Turning Table
Brand:MISA
Condition:100% brand new
Model number:HBJ-20
Capacity:100kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

Welding Positioner Application:
1. Pipe to pipe (or Elbow or Flange);
2. Welded Barrels
3. Storage tanks
4. Industrial drums
5. Tank and drum fabrication
6. Cylindrical structure cutting of cylindrical job pipe elbow
7. Framework of car , digger arm, loading machine , digger machine;

Welding Positioner Product Description:

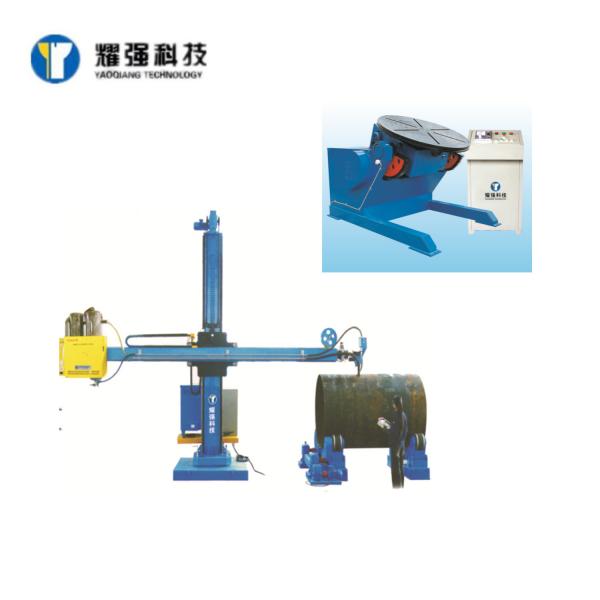

Positioners provide steel fabrication shops with the most up-to-date equipment for placing bulky fabrications in the 'downhand' position in the shortest possible time without the use of cranes and manpower. The positioners tables rotate at accurate and constant variable speeds and tilt through 135° with a high C.G. load rating covering almost all anglers for welding any angular job placed on it. Positioners can be supplied for interfacing with Column and Boom Manipulator.

This kind welding positioner mainly consists of mainframe, worktable, overturing unit, rotation unit, and electric control part, etc.
Mainframe, rotary table and cabinet combination of such components are welded, all welds of equal strength according to the requirements of welding seam, and remove the stress and prevent welding deformation processing.

Model HB HB HB HB HB HB HB HB HB HB
1 3 6 10 20 30 50 80 100 200
Max. load kg 100 300 600 1000 2000 3000 5000 8000 10000 20000
rotate speed rpm/min 0.3-3 0.2-2 0.09-0.9 0.09-0.9 0.05-0.5 0.05-0.5 0.05-0.5 0.02-0.2 0.02-0.2 0.02-0.2
turning speed rpm/min by manual by manual 0.42 0.4 0.35 0.23 0.2 0.2 0.2 0.15
turret turning angle ° 0-90 0-90 0-90 0-90 0-120 0-135 0-135 0-135 0-135 -45-90
turret diameter mm φ400 φ600 φ1000 φ1200 φ1250 φ1400 φ1500 φ1600 φ2000 φ2500
rotate motor power kW 0.18 0.18 0.75 1.1 1.1 1.1 1.5 3 3 5.5
turning motor power kW / / 0.75 1.1 1.5 2.2 3 3 4 11
speed adjustment AC frequency converter stepless speed adjustment
max eccentricity mm 100 150 150 150 200 200 200 200 200 200
max distance of gravity centre mm 200 200 200 200 250 300 300 400 500 600
