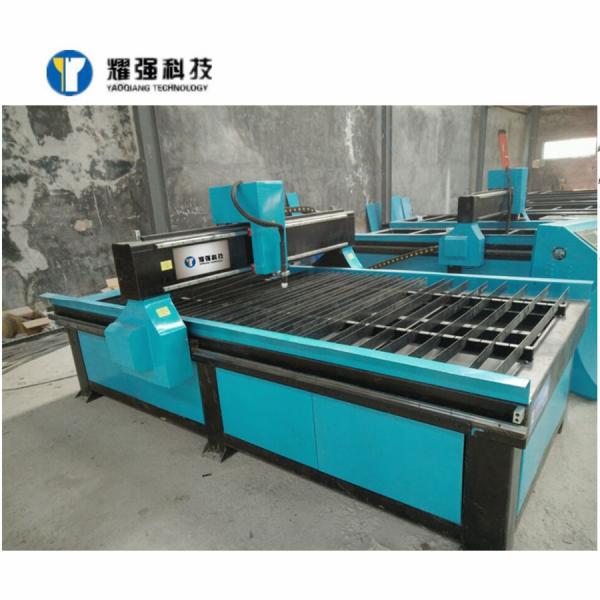

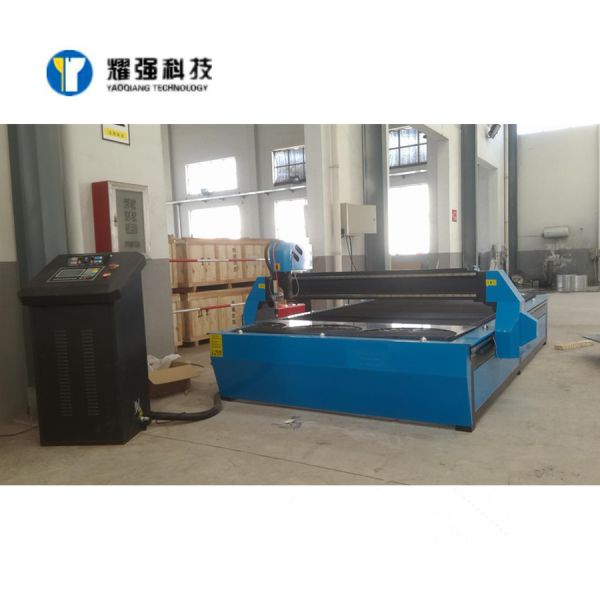

SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft
SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft
SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft
SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft
Specifications
Brand Name :
YAOQIANG
Model Number :
CNC-3030
Certification :
CE ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
US $1,000-50,000/ Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10pcs/month
Delivery Time :
30 days
Packaging Details :
standard package
Rail space :
3560mm
Effective cutting width :
3000mm
Rail length :
3500mm
Effective cutting length :
3000mm
Max cutting thickness :
150mm
CNC Max cutting thickness :
Customized
Description

Start SF-2200H CNC Cutting System YQ-3030 Plasma Flame Cutting Machine With Arc Voltage Torch Height Controller

This CNC Cutting System 3030 Plasma Flame Cutting Machine is very high efficient.

Beams with larger box type welding structure,the overall good rigidity,high strength,the rail surface must pass through precision machining,ensure the correct positioning of the moving body.

On both ends of the this Table type CNC Plasma Flame cutting machine frame body uses open type double four-wheel contact displacement method,center of gravity eccentric and stable and reliable,and ensure the good dynamic balance.All welding parts heat treatment with can reduce stress,effectively prevent the structure deformation

Models for gantry frame structure,must be whole annealing of eliminating of eliminating of beam with lateral orbital and precision rack.

Main technical specification:

1, Rail space(mm) 3560
2, Effective cutting width(mm) 3000
3, Rail length(mm) 3500
4, Effective cutting length(mm) 3000
5 Max cutting thickness(mm) 150
6 Cutting torch 120 1pcs CNC Max thickness 12mm
7 Max positioning speed(mm/min) 15000
8 Cutting torch lifting height 180mm
9 CNC system(Beijing Start SF-2200H) 2pcs
10 Longitudinal linear rail 9pcs
11 Longitudinal level 7 precision rack 18pcs
12 Drag chain 1pair
13 Arc pressure type automatic tuning device(domestic cutting torch height controller) 1set
14 Stop block 1set
15 Electrical control cabinets 1set
16 Auto-programming and nesting software(doestic) 1set
17 Environment temperature 0-50℃
18 Relative humidity 95% Non-condensing
19 Surroundings Ventilation,no big impact
20 Supply voltage 220V/380V±10%
21 Supply frequency 50Hz / 60Hz
22 Input power CNC system & Driver＜3KW

SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft

Longitudinal of CNC Table type cuttng machine adopts bilateral meshing gear and rack drive, slow down and ac servo system with high precision, has the speed and position feedback function, can set a transmission and high precision.

Drive on both ends of the frame is equipped with horizontal guide wheel, adjustable driving eccentric at the bottom of the rack on the degree of compaction guide rail, to keep the machine in motion stability.

End frame with filter respectively, and the second end face scraping and accumulation in the guide at any time on the surface of the clutter.

SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft

SF-2200H CNC Flame Plasma Cutting Machine 150mm 10ft
