Pipe Tank And Cylinder Manual And Auto Screw Adjustable Welding Rotator Welding Tables Max Loading 10tons

Our company is specialized in the design of irregular parts and special products, widely used in shipbuilding, chemical, petrochemical, construction, boiler and nuclear power and other industries

The electrical control system of this Adjustable Welding Rotator is a control method that integrates all equipment, mainly composed of two parts:

an electric control cabinet and a remote control box.

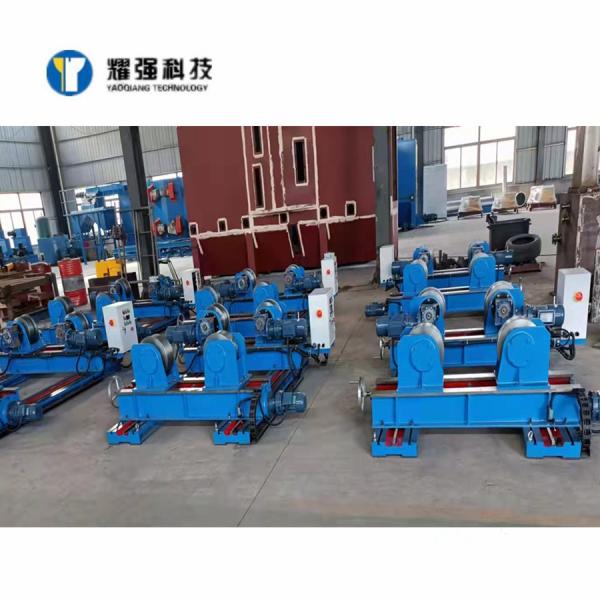

HGK-10 Adjustable welding rotator:

Main scope of supply:

Features of this screw manual adjustable welding rotators are:

1. There are two control boards in the electric control cabinet. One is the contactor control board, which is composed of fuses, control transformers, contactors and terminals; this part mainly controls the on and off of each motor, realizes the actions of each part and performs necessary protection for the motor. The other board, mainly composed of frequency converters, is mainly used to control, adjust speed and protect the horizontal arm telescopic motor. There are components on the panel of the electric control cabinet: cross arm speed digital display, cross arm speed preset, power indicator, power switch button, cross arm lifting button, inverter alarm indication and alarm clear button.

2. The operation panel of the remote control box is equipped with power indicator light, cross arm telescopic switch, cross adjustment mechanism fine-tuning button, welding start, welding stop button and other components, which can complete the main actions of each part of the equipment at a long distance and control the start and start of welding. stop.

3. Through the electric control box and remote control box, each mechanism of the device can be operated individually, and various parameters can be manually adjusted according to the situation.

4. It can realize the linkage control with the welding system.

Delivery time:20 days

Size for each piece:

Drive rotator 2300*450*550mm,Driven rotator 1920*450*550mm
