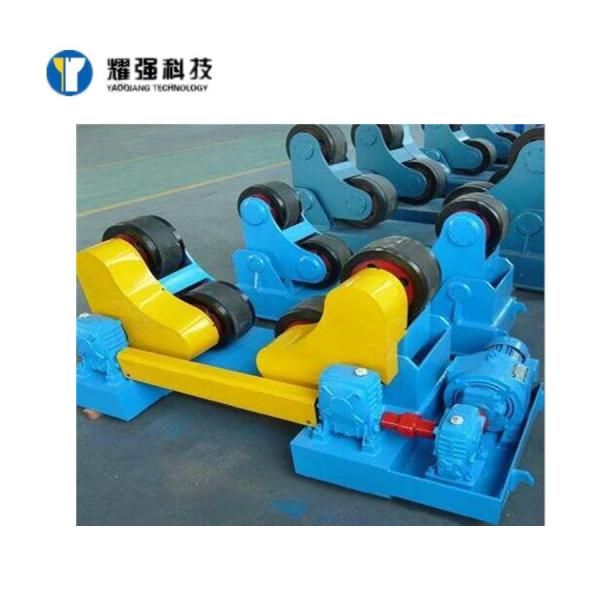

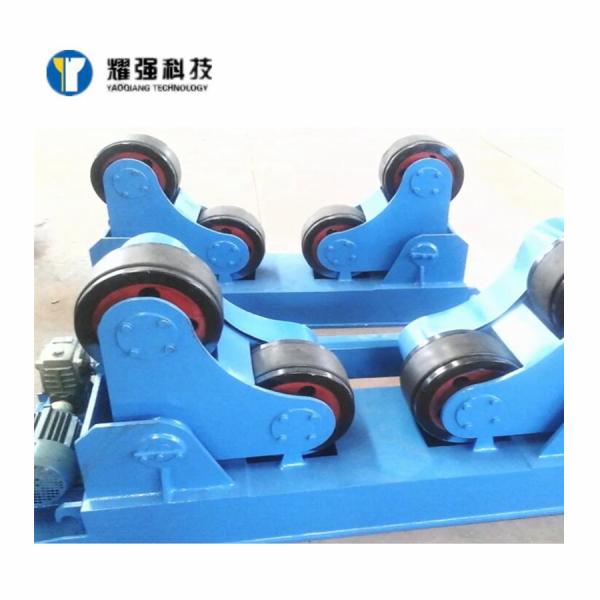

HGZ 5T Self Adjustable Welding Rotator Rubber Wheel
HGZ 5T Self Adjustable Welding Rotator Rubber Wheel
HGZ 5T Self Adjustable Welding Rotator Rubber Wheel
HGZ 5T Self Adjustable Welding Rotator Rubber Wheel
Specifications
Brand Name :
YAOQIANG
Model Number :
HGZ
Certification :
CE ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
1 set
Price :
2400USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs/month
Delivery Time :
10 days
Packaging Details :
standard package
Power :
380V
Function :
Pipe and tank welding positioner rotator
Wheel Velocity :
6-60m/h
Specification :
Load 5000kg
Pipe diameter :
Φ250-2300
Wheel diameter :
Φ250×100
Motor power :
0.75 KW
Speed adjustment method :
AC frequency converter stepless speed adjust.
Description

HGK 5T Rubber Wheel Self Adjustable Welding Rotator Welding Turning Rolls Welding Roller

Welding rotor is an advanced welding equipment developed by absorbing domestic and international advanced equipment.

Mainly used for assembling, polishing and welding of pipelines, boilers, pressure vessels, fuel tanks and other cylinders.

Self-Adjust Welding Rotator Roller
1.Equipment structure types:Fixed or Mobile(Optional);
2.Driving mode:single,double speed reducer drive motor
3.Roller quantity:8/set
4.Rolled steel:steel&rubber rollercombined.
5.Mode:AC frequency conversion stepless speed
6.Support workpiece:clamp ampere frame automatically open&automatic reset
7.Electrical system:the remote control cabinet+box(line 10-15m)or pedal switches.

model max. load kg allowed work piece wheel diameter and width wheel linear speed motor power speed adjustment method
(mm) (mm) (m/h) (kw)
rubber metal single drive(kw) dual-drive(kw)
HGZ5 5000 Φ250-2300 Φ250×100 2×Φ244×20 6-60 0.75 / AC frequency converter stepless speed adjust.
HGZ10 10000 Φ320-2800 Φ300×120 2×Φ294×25 6-60 1.1 /
HGZ20 20000 Φ500-3500 Φ350×120 2×Φ344×30 6-60 1.5 /
HGZ30 30000 Φ500-4000 Φ350×120 2×Φ344×30 6-60 2.2 /
HGZ40 40000 Φ600-4200 Φ400×120 2×Φ394×40 6-60 3 2*1.5
HGZ50 5000 Φ600-4500 Φ400×120 2×Φ394×40 6-60 3 2*1.5
HGZ60 60000 Φ750-4800 Φ450×120 2×Φ444×50 6-60 4 2*2.2
HGZ80 80000 Φ850-5000 Φ500×120 2×Φ494×60 6-60 4 2*3
HGZ100 100000 Φ1000-5500 Φ500×120 2×Φ494×80 6-60 5.5 2*3
HGZ150 150000 Φ1100-6000 Φ600×280 / 6-60 7.5 2*4
HGZ250 250000 Φ1200-7000 Φ700×300 / 6-60 11 2*5.5

HGZ 5T Self Adjustable Welding Rotator Rubber Wheel

HGZ 5T Self Adjustable Welding Rotator Rubber Wheel

FAQ:
1.Q:Are you a factory or trading company?
A: We are a factory.

2. Q:What are your payment terms?
A: We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!

3. Q:How about the warranty?
A: There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence

4.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu Wuxi(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

HGZ 5T Self Adjustable Welding Rotator Rubber Wheel
