Automatic Gantry Box Beam Production Line MZ-1000
Automatic Gantry Box Beam Production Line MZ-1000
Automatic Gantry Box Beam Production Line MZ-1000
Automatic Gantry Box Beam Production Line MZ-1000
Automatic Gantry Box Beam Production Line MZ-1000
Automatic Gantry Box Beam Production Line MZ-1000
Specifications
Brand Name :
YAOQIANG
Model Number :
SXBH-20
Certification :
CE ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
1 set
Price :
US $13,000-25,000/ Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30pcs/mont4
Delivery Time :
20 days
Packaging Details :
standard package
Web height :
200-2000mm
Flange width :
200-800mm
Welder model :
MZ-1000
Welding type :
boat-type welding
Welding speed :
0.15-1.5m/min
Welding torch return speed :
3m/min
Rails' distance :
2000mm
Gantry frame motor total power :
3.7KW
Welder recovery machine model :
ZH-100* 2 sets
Warranty :
1 year
Description

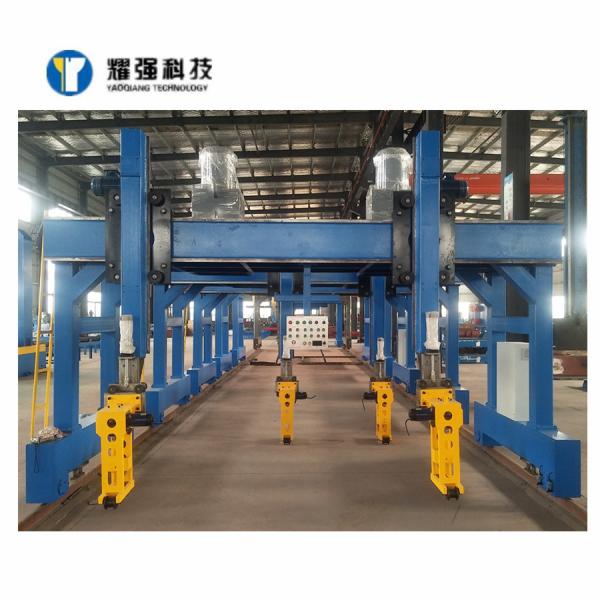

Gantry type SXBH-20 H beam Box Beam Automatic Welding Machine

This type of gantry gate welding machine is designed according to the special requirements of steel H-shaped steel boat welding and our rich experience in this field.


The gantry welding machine can weld two workpieces at a time.

Specification:

Model guide distance control mode allowed web height allowed flange width allowed length welding speed load power
SXBH-20 4000mm middle 200-1200mm 200-800mm 4000-15000mm 0.24-2.4m/min 9kW
side 200-1500mm 9.74kW
5000mm middle 200-1800mm 10.44kW
side 200-2200mm
5500mm middle 200-2200mm
side 200-2500mm

Automatic Gantry Box Beam Production Line MZ-1000

Supply scope:
1, Gantry gate unit: Gantry gate, travel device, lateral sliding device, feeding wire wheel and pipe accessories.
2, Welding arm and carriage: Welding arm, motor transmission device, move device and accessories (2 sets each).
3, Arc guide device: Welding gun, mechanical adjusting unit and feeding wire machine (2 sets each).
4, Flux recovery system: 100kg flux recovery machine, separate material barrel, flux hopper, flux recovery and transmission pipe.
5, Electric control system: Electric control cabinet, AC frequency converter, operation box, lighting, and warning light.
6, Pipe and wire system: Welding machine power wire, control wire, welding cable, gantry gate control cable, air source pipe, and suspending sliding frame.
7, Welding system: MZ-1000 sub merge arc welding machine*2sets.

Automatic Gantry Box Beam Production Line MZ-1000

FAQ:

1.Q:Are you a factory or trading company?
A: We are a factory.

2. Q:What are your payment terms?

A: We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement. Any other questions contact us directly!

3. Q:How about the warranty?
A: There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence

4.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu Wuxi(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

Automatic Gantry Box Beam Production Line MZ-1000
