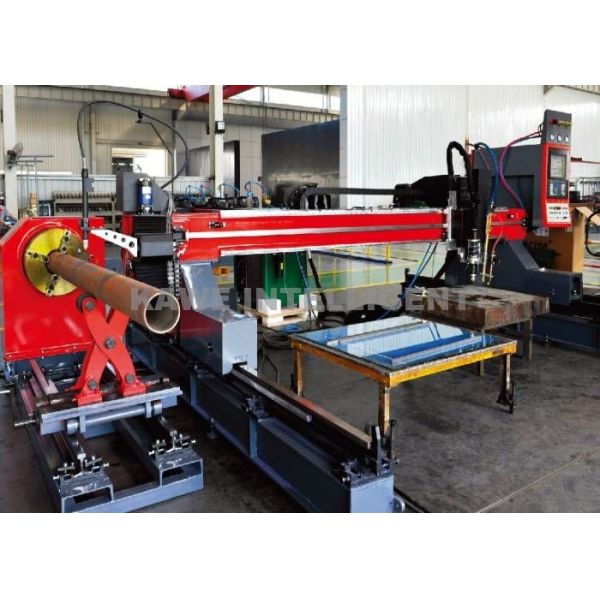

Multi Function CNC Plasma Cutting Machine 6 Axis Tube Profile Cutting Machine Pipe Plate
Multi Function CNC Plasma Cutting Machine 6 Axis Tube Profile Cutting Machine Pipe Plate
Specifications
Brand Name :
KAWE
Model Number :
KSGP-4000
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 15,000-30,000
Supply Ability :
10sets/day
Packaging Details :
export standard package
Cutting speed :
100-3000mm/min
Product name :
cnc pipe cutting machine
control system :
Hypertherm
Dimension(l*w*h) :
customized
Plasma Power :
Hypertherm
Motors :
Panasonic
Gears :
Germany Neugart
Software :
PA
Axis No. :
5/6
Material :
Steel/Aluminum/stanless steel
Description

multi function CNC PLASMA CUTTING MACHINE for steel pipe and steel plate

Summarize

Kgsp-4000 CNC tubeplate cutting machine, is a product that our company absorbed advanced technology abroad to improve, research and develop, the equipment has a small occupation of the site, high cutting accuracy, easy to operate and other characteristics, very suitable for customers who require steel plate cutting, and pipe cutting as auxiliary.

Main technical parameters

Cutting Mode Dry cutting(plasma/flame)
Frame form classic design, flat plate welding, gantry wide box
Gantry rail span

4000mm
Length of gantry beam

4800mm
Gantry track length

16000mm
Gantry guide rail model 24Kg guide rail
Length of bracket track

14000mm
Bracket guide rail model

24Kg
Operating electrical cabinet

KW2
Operating position right console
control system F2500x
Auxiliary control Huichuan PLC
Electric control part Siemens/CHNT
Plasma cutting torch lifting body DC motor lifting module 1 group
Gantry longitudinal drive system Panasonic 2 sets
Gantry lateral drive system Panasonic 1 set
Pipe spindle drive system Panasonic 1 set
Gantry transverse mechanical transmission precision rack and pinion 1 set
Gantry longitudinal mechanical transmission precision rack and pinion 1 set
Round pipe fixing system 4 jaw self - centering chuck 1 set
Round pipe support mechanism bracket 2 sests
Round pipe feeding device material receiving trolley 1 set
Main frame standard color (fluorocarbon paint spraying process) Kawe color or color code indicated by customer

​

Multi Function CNC Plasma Cutting Machine 6 Axis Tube Profile Cutting Machine Pipe Plate

FAQ

1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
