CNC Table Plasma Cutting Machine 1500X3000mm 6000mm/min
CNC Table Plasma Cutting Machine 1500X3000mm 6000mm/min
Specifications
Brand Name :
KAWE
Model Number :
KST-1500
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 15,000-30,000
Supply Ability :
10sets/day
Delivery Time :
5-30days
Packaging Details :
export standard package
Dimension(l*w*h) :
1500*3000mm
Working area :
1500*3000mm
Software :
Fastcam
Product name :
cnc table cutting machine
control system :
Hypertherm
Description

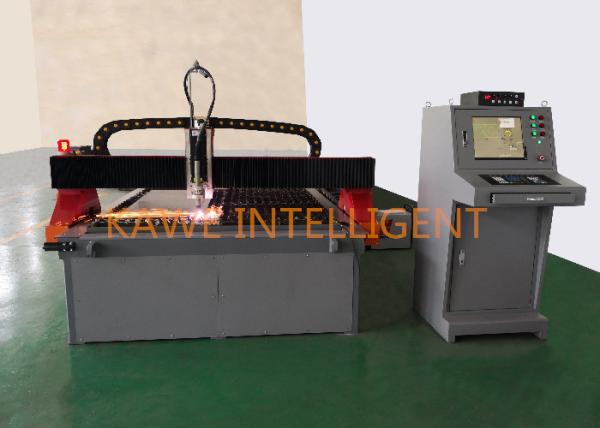

CNC TABLE PLASMA CUTTING MACHINE

Table plasma cutting machine, is suitable for the small plate with high efficiency, high precision cutting. The equipment occupies a small area, no machine installation. It adopts digital control and servo drive and high precision transmission system to realize the cutting of parts with any shape. Different types of plasma can be equipped to meet different cutting process requirement. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.

　　　　　　Category

Parameter

 Cnc plasma
Effective cutting width (mm) 1500;2000;2500;3000;4000(can be customized according to user’s requirement)
Effective cutting length (mm) can be customized according to user’s requirement
Plate Thickness (mm) 2--80(can be customized according to user’s requirement)
Cutting speed(mm/min) 0-5000
Maximum walking speed(mm/min) 6000
Numerical control system KAWE/START/Hypertherm/Fangling
Servo system Panasonic /Mitsubishi
Plasma system hypertherm/KAWE(common/high precision/true hole)
Nesting software (optional) Australian Fastcam

FAQ

1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
