Gantry Type Multi Head CNC Gas Cutting Machine 6000mm/Min Oxygen Accetylene
Gantry Type Multi Head CNC Gas Cutting Machine 6000mm/Min Oxygen Accetylene
Gantry Type Multi Head CNC Gas Cutting Machine 6000mm/Min Oxygen Accetylene
Gantry Type Multi Head CNC Gas Cutting Machine 6000mm/Min Oxygen Accetylene
Specifications
Brand Name :
KAWE
Model Number :
KZS-4000/5000/6000
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 15,000-30,000
Supply Ability :
1set/10days
Delivery Time :
5-30days
Packaging Details :
export standard package
Application :
Industrial Metal Cutting,Sheet Metal Industry
Software :
Fastnest
Product name :
cnc gas cutting machine
Process :
CNC gas cutting
Cutting Depth :
<200mm
Motor :
Panasonic
Torch No. :
9+2
Cutting gas :
Oxygen/Accetylene/Propane
Cutting Speed :
100-750mm/min
Max.Speed :
6000mm/min
Description

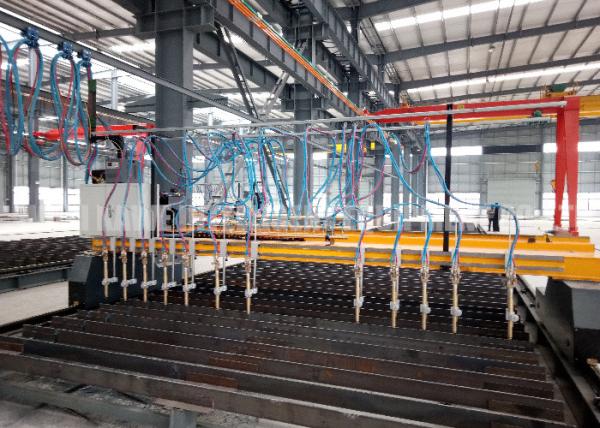

Multi head Gantry Type CNC GAS CUTTING MACHINE

It adopts oxygen + fuel gas (acetylene or propane) as energy, suitable for the economical cutting of plate .The machine adopts digital control + servo drive and high precision transmission system to realize the cutting of parts of any shape. Equipped with single cutting torch or straight tri-torch, it can cut different plate groove. Gantry structure and bilateral drive, achieve higher cutting precision. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.

　　　　　　Category

Parameter

 Strip cutting machine CNC strip cutting machine
Rail span W(mm) 3000--20000
Effective cutting width (mm) W-700

strip:W-700

CNC:W-800
Effective cutting length (mm) Rail length L-2500
Minimum cutting width(mm) Strip cutting torch:80；CNC torch:200
Plate Thickness (mm) 6-100(single torch can reach 200mm)
Cutting speed(mm/min) 100-1000
Maximum walking speed(mm/min) 2500 12000
Numerical control system / KAWE/START/Hypertherm
Servo system DC drive Panasonic /Mitsubishi
Straight tri-torch optional
Nesting software (optional) Australian Fastcam
