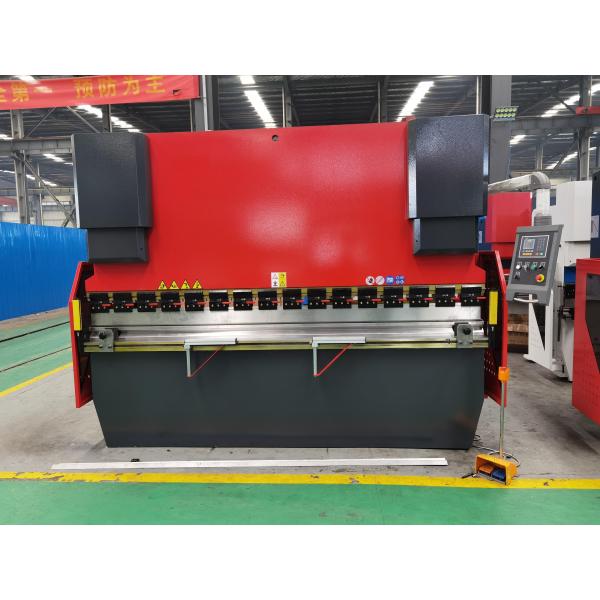

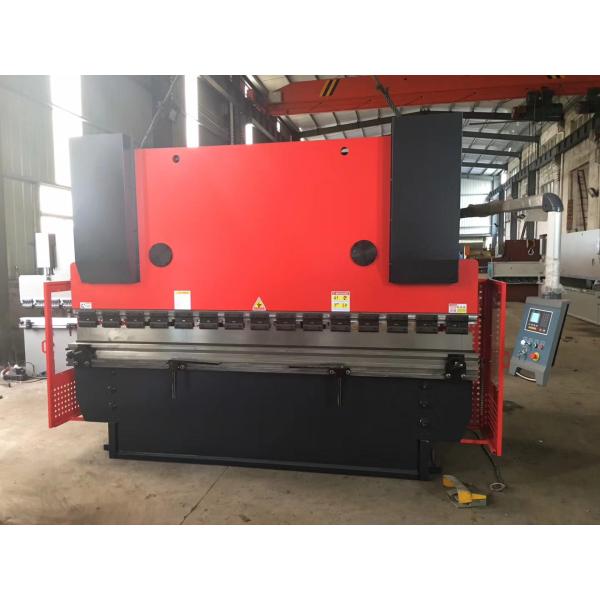

WC67Y 2000MM Sheet Metal Press Brake Hydraulic Press Brake Machine
WC67Y 2000MM Sheet Metal Press Brake Hydraulic Press Brake Machine
WC67Y 2000MM Sheet Metal Press Brake Hydraulic Press Brake Machine
WC67Y 2000MM Sheet Metal Press Brake Hydraulic Press Brake Machine
Specifications
Model Number :
WC67Y
Pressure :
400kN - 3000kN
Worktable length :
2000MM - 6000MM
Distance between uprights :
1700 - 4800MM
Throat depth :
245MM - 400MM
Place of Origin :
China
Brand Name :
Friendship Machinery
Certification :
CE, ISO
MOQ :
1 SET
Price :
Customized
Packaging Details :
Wooden box, Standard Sea Packing
Delivery Time :
20 To 30 Working Days
Payment Terms :
T/T, L/C
Supply Ability :
5-30 Sets Per Month
Description

WC67Y series hydraulic press brake machine


1. Introduction

● The device adopts all steel-welded construction, and vibratory stress relief. Thus the device with good rigidity and high strength, to permit high accuracy.

● The whole frame with good rigidity, work is stable, safety and reliable, easy to operate.

● To adopt stress theory to control the deformation of structural parts effectively, so can to get satisfied work-piece.

● Controller: E21 from ESTUN is a NC controller specialized in torsion axis synchronous press brake

2. Technical parameters

Model Pressure Worktable length Distance between uprights Throat depth Ram stroke Motor
WC67Y-40/ 2000 400kN 2000mm 1700mm 245mm 100mm 4kw
WC67Y-40/ 2200 400kN 2200mm 1800mm 245mm 100mm 4kw
WC67Y-40/ 2500 400kN 2500mm 2005mm 245mm 100mm 4kw
WC67Y-63/ 2500 630kN 2500mm 2005mm 250mm 120mm 5.5kw
WC67Y-63/ 3200 630kN 3200mm 2520mm 250mm 120mm 5.5kw
WC67Y-80/ 3200 800kN 3200mm 2520mm 320mm 120mm 7.5kw
WC67Y-80/ 4000 800kN 4000mm 3005mm 320mm 120mm 7.5kw
WC67Y-100/ 2500 1000kN 2500mm 2005mm 400mm 120mm 7.5kw
WC67Y-100/ 3200 1000kN 3200mm 2520mm 400mm 120mm 7.5kw
WC67Y-100/ 4000 1000kN 4000mm 3005mm 400mm 120mm 7.5kw
WC67Y-100/ 5000 1000kN 5000mm 4010mm 400mm 120mm 7.5kw
WC67Y-125/ 2500 1250kN 2500mm 2005mm 400mm 120mm 7.5kw
WC67Y-125/ 3200 1250kN 3200mm 2520mm 400mm 120mm 7.5kw
WC67Y-125/ 4000 1250kN 4000mm 3005mm 400mm 120mm 7.5kw
WC67Y-125/ 5000 1250kN 5000mm 4010mm 400mm 120mm 7.5kw
WC67Y-160/ 3200 1600kN 3200mm 2520mm 400mm 200mm 11kw
WC67Y-160/ 4000 1600kN 4000mm 3005mm 400mm 200mm 11kw
WC67Y-160/ 5000 1600kN 5000mm 4010mm 400mm 200mm 15kw
WC67Y-160/ 6000 1600kN 6000mm 4800mm 400mm 200mm 15kw
WC67Y-200/ 3200 2000kN 3200mm 2520mm 400mm 200mm 15kw
WC67Y-200/ 4000 2000kN 4000mm 3005mm 400mm 200mm 15kw
WC67Y-200/ 5000 2000kN 5000mm 4010mm 400mm 200mm 15kw
WC67Y-200/ 6000 2000kN 6000mm 4800mm 400mm 200mm 18.5kw
WC67Y-250/ 3200 2500kN 3200mm 2520mm 400mm 250mm 18.5kw
WC67Y-250/ 4000 2500kN 4000mm 3005mm 400mm 250mm 18.5kw
WC67Y-250/ 5000 2500kN 5000mm 4010mm 400mm 250mm 18.5kw
WC67Y-300/ 4000 3000kN 4000mm 3005mm 400mm 250mm 22kw
WC67Y-300/ 5000 3000kN 5000mm 4010mm 400mm 250mm 22kw
WC67Y-300/ 6000 3000kN 6000mm 4800mm 400mm 250mm 22kw
