Specifications
Brand Name :
Dongfeng
Model Number :
CL5180GXW6HQ
Certification :
ccc
Place of Origin :
Hubei
MOQ :
1
Price :
29700$
Payment Terms :
T/T, D/P, L/C
Supply Ability :
50 units per month
Delivery Time :
30-35 working days
Packaging Details :
nude with waxing
Name :
Dongfeng sewage suction truck
Sewage tank :
10000 liters
Total Amount :
18000 kg
Driving type :
4x2
Wheelbase :
4700 mm
Gearbox :
9JSD180T
Tyre model :
10.00R20
Engine model :
B190-33
Rated Power :
140Kw, 190Hp
Displacement/Capacity :
5900 ml
Vacuum suction pump :
SK15
Description

10 cbm Chinese Dongfeng Sewage Suction Truck

The cleaning and suction truck has the functions of flushing, dredging, suction, and reverse discharge.
The function of a sewage suction truck:
The cleaning and suction truck is a new type of environmental sanitation vehicle used for collecting, transferring, and cleaning the transportation of sludge and sewage. It has the function of self suction and self discharge, and its advantages are fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, crude oil, etc.
The working principle of cleaning the suction truck:
The working principle of cleaning and suction trucks is mainly based on the siphon principle. When the fecal suction hose is submerged under the liquid surface and air is sucked in, the pressure inside the tank will gradually decrease due to the inability to be replenished, causing the fecal liquid to enter the tank through the fecal suction hose under atmospheric pressure. In addition, when the siphon tube approaches the bottom of the tank, air is continuously discharged into the tank. As the air cannot be discharged, the pressure inside the tank will increase, and the feces will be discharged outside the tank through the siphon tube and suction hose under the action of compressed air.

Main Technical specification

Overview
Name 10 cbm Dongfeng Suction Truck
Dimension(LxWxH)

8200×2500×3550 mm
Total Mass 18000 kg
Rated Payload 8900 kg
Kerb Weight 9100 kg
Passenger 3
Approach/Departure Angle 17°/10 °
The Parameters of Chassis
Manufacture/Model Dongfeng
Driving Type 4X2
Wheel Base 4700 mm
Gearbox

9JSD180T
Front/Rear Track 2060/1855 mm
Tyre model

10.00R20
The Number of Tyre 6+1 (spare tyre)
Front/Rear Suspension 1370/2710 mm
The Paremeters of Engine
Manufacturer/Model

B190-33
Rated Power

140Kw, 190Hp
Fuel Type Diesel oil
Displacement/Capacity 5900 ml
Emission Standard Eu 3
Cylinder 6
Max. Torque/ speed

650 N.m/ 1500 rpm
Velocity 2500 rpm
The Parameters of Equipment
Color/Logo Customizable
Volume of Clean Waste Water Tank
10,000 liters
Standard configuration

1. The tank has a volume of 10 cubic meters and is made of high quality steel plate. The wall thickness is 6mm. The middle of the tank is reasonably designed with a wave plate

2. Install SK-15 water circulating pump

3. Install the overflow valve, and install stainless steel filter screen on the vacuum pipe (to prevent impurities from entering the pump)

4. A shock resistant pressure gauge with a diameter of 100 is installed at the four-way dirt suction valve, which can resist the vibration of the working environment and reduce the pulsation effect of the medium pressure

5. A 100 suction port, a 600 hydraulic drain port at the tail, and a 100 drain port

6. The tank body is equipped with lifting and self unloading function, and the drain outlet at the tail can be opened hydraulically with locking device

7. The tank top is designed as a platform with protective railings and 2 tank openings installed to facilitate feeding from the top and cleaning the tank

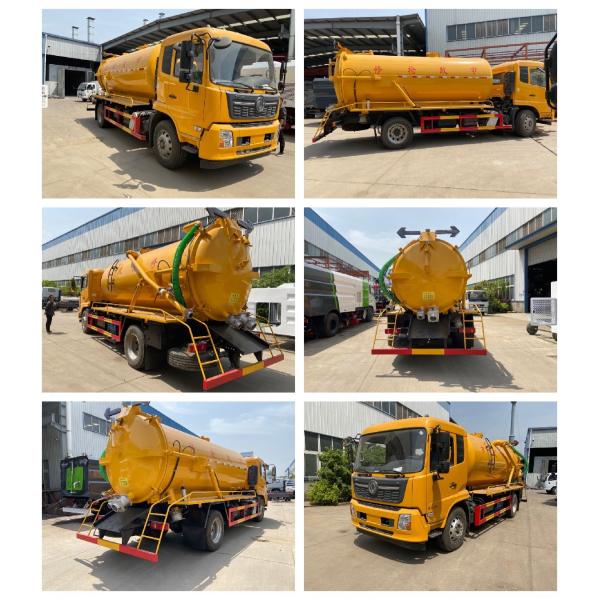

Dongfeng Sewage Suction Picture

4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck

Combine Sewage Clean and Suction Truck Stock

4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck

Export

4x2 Chinese Dongfeng 6000 Liters Sewage Suction Truck
