4x2 ISUZU GIGA 45M BUCKET TRUCK MAN LIFT HIGH WORKING TRUCK

Telescopic boom aerial working truck.

1. The aerial work vehicle adopts a telescopic straight arm structure. The operating arm is a four-section telescopic type. The turntable can be operated, and can also be operated by a remote control. It can rotate 360 degrees. Four hydraulic outriggers are available. The maximum weight of the platform is 200 kg. The stainless steel coaming and patterned anti-skid walking platform are available.

2. The worktable is designed with mechanical self-balance, which is used to keep the worktable in balance during operation. The maximum extension angle of the jib reaches 80 °, so as to adjust to the best operation position.

3. Night work light, the operation light can be installed on the operation platform according to the customer's working environment to make night work safer.

4. Computer control, automatic limit, dangerous work alarm, excellent safety performance. The vehicle is equipped with a display to display the working conditions of the whole vehicle in real time.

5. Hexagonal working arm increases strength, synchronous telescopic, compact structure, high working efficiency and wide working range. The telescopic oil cylinder is external and the chain telescopic mechanism makes it easier to observe the fault point and facilitate maintenance.

6. The outrigger adopts the front V and rear H structure, with larger stress surface and higher stability; It can prevent the girder from deformation or fracture. The outriggers can be adjusted independently. Each outrigger can be adjusted independently according to the working ground environment. Even if the ground is uneven, the whole vehicle can be adjusted to a stable state.

7. The four vertical outrigger cylinders and the upper arm, lower arm and lower arm cylinders are equipped with two-way hydraulic locks, whose function is to lock the cylinder after reaching the required position to prevent accidents. The working arm is equipped with a two-way balance valve to make the operation of the working arm more stable. The main components of the vehicle, such as two-way hydraulic lock, two-way lock balance valve, hydraulic flow valve, hydraulic cylinder, emergency pump for engine start and stop, operating system and its control computer, are all domestic well-known brands, and the core components are imported parts. Stable reversing, flexible and convenient operation; The outrigger and working arm are interlocked, safe and reliable to prevent miss operation.

Main Technical specification

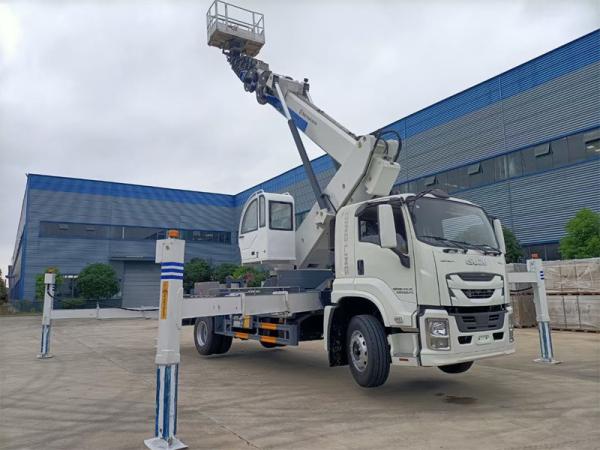

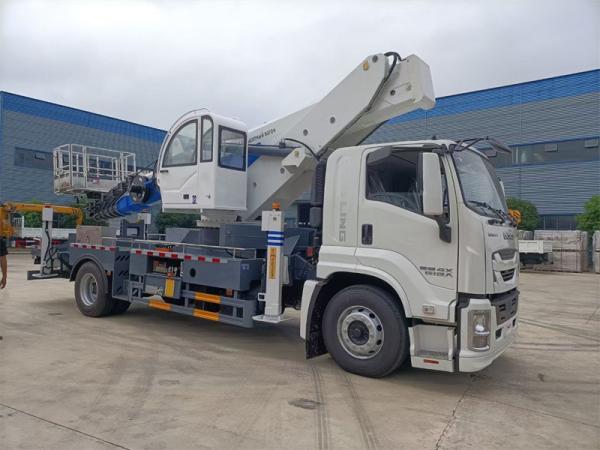

ISUZU High Altitude Aerial Cage Truck Picture
