Specifications
Brand Name :
ISUZU
Model Number :
QL1180JQFRY
Certification :
ccc
Place of Origin :
Hubei
MOQ :
1
Price :
62500
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
30-35 working days
Packaging Details :
nude with waxing
Item name :
crane truck
Chassis :
ISUZU
crane loading :
8-10 tons
Crane Type :
straight arm
Support leg :
4
Wheelbase :
4500 mm
Lifting height :
15.5m
Working radius :
13.5m
Crane model :
SQS200
Crane brand :
XCMG
Description

ISUZU FTR 205hp Engine 8 tons XCMG Straight arm truck mounted crane

The official name of the truck mounted crane is the truck mounted crane transport vehicle, which is a device that uses hydraulic lifting and telescopic systems to lift, rotate, and hoist goods. It is usually assembled on cargo trucks.
It is widely used for the hoisting and transportation of infrastructure materials and other equipment in municipal construction, coal mining engineering, landscaping, and other fields.
Truck mounted crane is a type of transportation vehicle that combines a truck mounted crane and a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.
Applicable working conditions: In traditional areas of Dongfeng, high-density goods such as iron powder and iron ore are loaded and transported, suitable for poor road conditions such as mountainous roads and construction site roads.

Main Technical specification

Overview
Name8 tons Isuzu FTR Crane Truck
Dimension(LxWxH)9000x2500x3750 mm
Total Mass18000 kg
Rated Payload11280 kg
Kerb Weight6500 kg
Passenger3
Approach/Departure Angle16°/12 °
The Parameters of Chassis
Manufacture/ModelQL1180JQFRY
Driving Type4x2
Wheel Base5550 mm
GearboxMLD6
Front/Rear Track2011/1860 mm
Tyre model10.00R20
The Number of Tyre6+1 (spare tyre)
Front/Rear Suspension1350/2200 mm
Axles LoadingFront Man 6.3 T Rear Man 13 T
Oil Tank300L Iron
The Parameters of Engine
Manufacturer/ModelISUZU/ 4HK1-TC60
Rated Power151kw/105hp
Fuel TypeDiesel oil
Displacement/Capacity5193 ml
Emission StandardEu 6
Cylinder4
Max. Torque/ speed647N.m/ 1600rpm
Velocity2600 rpm
The Parameters of Equipment
Color/LogoCustomized
Rear bucket6000x2200x500 mm
Dump functionNO
CraneXcmg 8 tons straight arm, MSQS200-4




XCMG 8 tons straight arm crane specifications

ModelMSQS200-4 (8 tons, 4 arms)
Max loading weight8,000 kg
Max torque200 kN.m
Max outreach13.5 m
Max lifting height15.5 m
Oil tank capacity200 L
Max pressure of hydraulic system26 mpa
Recommended pump capacity63/50+50 L/min
Installation space1200 mm
Slewing angle360 °
Crane weight3450 kg
Stabilizer spread2300-5700 mm
Support legyes


ISUZU FTR 205hp Engine 8 Ton Truck Mounted Crane 4x2 Driving TypeISUZU FTR 205hp Engine 8 Ton Truck Mounted Crane 4x2 Driving Type

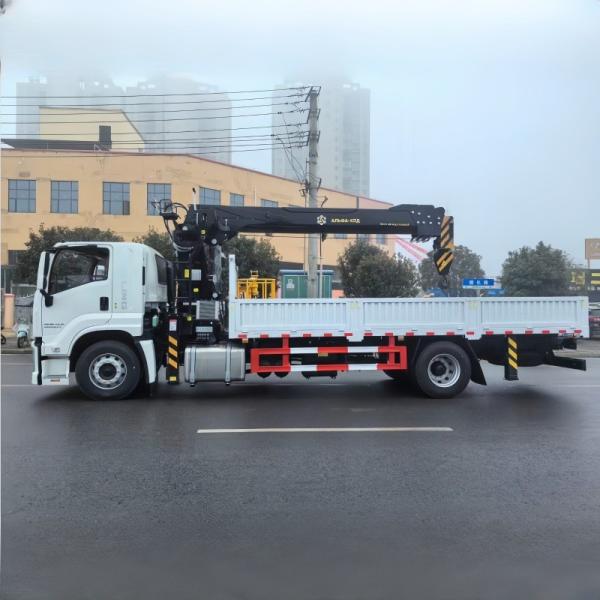

ISUZU FTR Crane Truck Picture

ISUZU FTR 205hp Engine 8 Ton Truck Mounted Crane 4x2 Driving Type

Crane Truck Working Stock

ISUZU FTR 205hp Engine 8 Ton Truck Mounted Crane 4x2 Driving Type

Crane Truck Working Working

ISUZU FTR 205hp Engine 8 Ton Truck Mounted Crane 4x2 Driving Type
