10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
Specifications
Brand Name :
DONGFENG
Model Number :
D9
Certification :
ISO
Place of Origin :
Hubei
MOQ :
1
Price :
$23800-24800 per unit
Payment Terms :
T/T, L/C
Supply Ability :
50 units per month
Delivery Time :
15-35 days
Packaging Details :
nude with waxing
Product Name :
water tank truck
Volume :
10000 liters
Chassis model :
DONGFENG, optional HOWO,ISUZU,SHACMAN
Engine :
CUMMINS, B170 33
Wheelbase :
3950 mm
Function :
spraying water and delivery drinking water
Drive model :
4x2
Tire :
9.00R20
Transmission :
8-speed, manual
Emission standard :
Euro 3
water tank material :
carbon steel or stainless steel
Description

The water tank truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. The watering truck can also be used as a water trasnpotation truck. The most common models are sanitation watering truck, multi-function watering truck and green watering truck.
Our company's products come standard with front spray (duck bill), back flush, rear spray, side spray, and rear-mounted working platform. The platform is equipped with a green water cannon (which can be rotated 360°, and can be adjusted to either a column or a mist shape). , it can be adjusted to flush, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump (self-priming and self-draining, can pump water from river or pond to tank), power take-off, miscellaneous material filter screen, fire interface, self-flowing ball valve system, ball valve and filter screen are all national standard products, the main pipeline is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve is used. The overall performance is excellent, safe and reliable, high efficiency, large flow, convenient maintenance and so on.

10000 liter DONGFENG water bowser truck water spraying truck with fog cannon.

Main specification :

Complete Vehicle Parameter
Vehicle DONGFENG water sprinkler truck
Overall dimensions (mm) 8210x 2500 x 3200
Water tank volume (L) 10000
Gross Vehicle Weight (kg) Appro × 16480
Net weight (kg) Appro × 6480
Loading (kg) Appro × 10000
Wheel base (mm) 3950
Max speed (Km/h) 89
Truck Chassis Parameter
Condition New, year 2025
Cabin D9 cabin, a sleeper, power steering, electric window, central lock, air conditioner, 3 passengers, left hand drive.
Drive form 4×2
Engine

Brand : CUMMINS

Model : B170 33

Engine power : 170hp

Type : diesel,turbocharger inter-cooler,6 cylinder.

Displacement : 5.9L

Emission standard : Euro 3
Transmission 8 forward,1 reverse, manual operated
Tire model 9.00R20
No.of tires 6+1pcs
Water Tank Body Parameter
Standard configuration

1) Carbon steel material water tank, thickness 5mm, electrophoretic paint.

2) With water pump.

3) With rear working platform.

4) With suction pipe.

5) With fire connector.

6) With gravity valve.

7) Equipped with electric water cannon in front of cabin.

8) Equipped with 30m fog cannon at rear .
Special performance

1) Left and right side spraying water.

2) Platform has a sprinkler, spraying water.

3) Water column can be adjusted into mist

4) Width of spraying water : ≥14m.

5) Distance of spraying water : ≥28m.

6) Vertical suction 6-8 m.

Pictures:

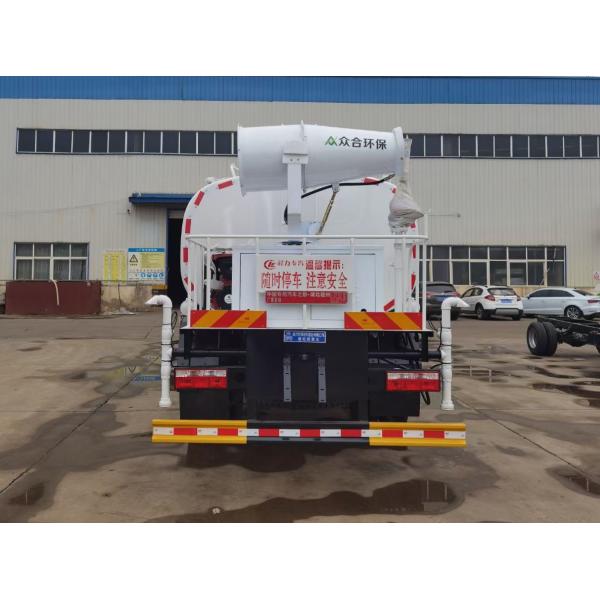

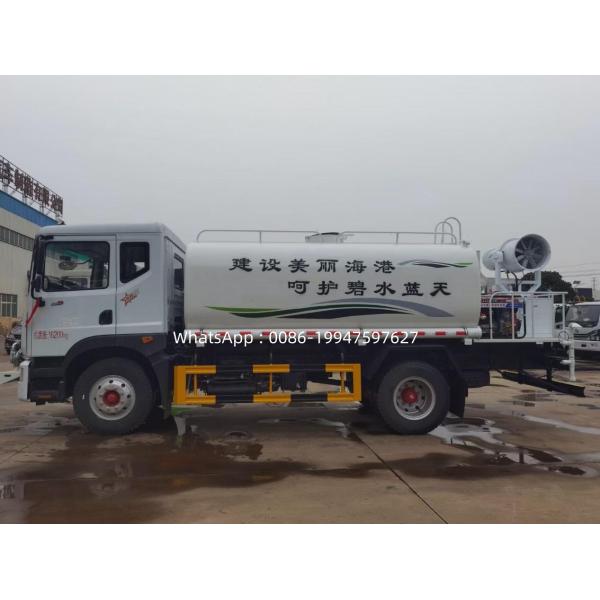

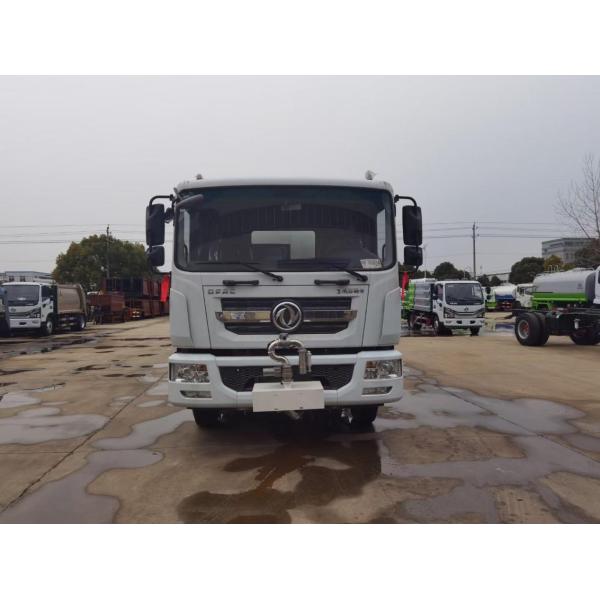

10000 liter DONGFENG water bowser truck water spraying truck with fog cannon

10000 liter DONGFENG water bowser truck water spraying truck with fog cannon

10000 liter DONGFENG water bowser truck water spraying truck with fog cannon
