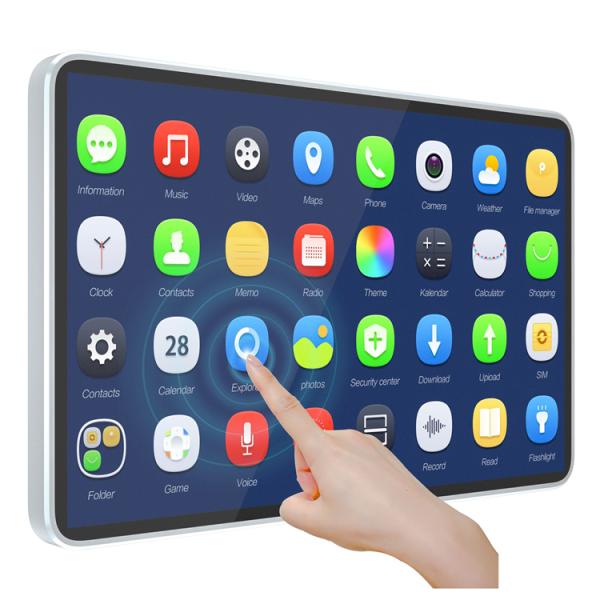

Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Specifications
Brand Name :
HUIGUAN
Model Number :
HG-2052
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
30DAYS
Packaging Details :
Carton box,Wooden
Product name :
lcd display monitor menu board advertising TV
Size :
support 10.4 inch ~98 inch
Input Voltage :
5.0V
Brightness :
350 (Typ.)
Pixel Pitch :
0.294mm (H) x 0.294mm (W)
Type :
TFT
Viewing Angle :
89/89/89/89 (Min.) (CR = 10)
Contrast Ratio :
1000 : 1
Response Time :
8 ms
Touch :
IR touch screen ( optional )
Operating system :
Android 4.4 above
CPU :
android /window
Description
Digital Advertising Media 86 Inch IR Touch LCD TV Screen
Product Overviews
Infrared touch

Material: tempered glass

Glass thickness: 3mm, 4mm, 6mm
Surface abrasion strength: strong, determined by the glass surface
Transparency: ≥95%, up to 100% (no glass)
Homogeneity: good

Resolution: 1280 (RGBW) * 1024[UHD]
Display size: 376.32 * 301.056 mm (H * V)
Visual size: 380.32 * 305.06 mm (H * V)
Brightness (cd/m2):350 (Typ.)
Best angle: full view
Visual angle: 89/89/89/89 (Min.) (CR = 10)
Pitch: 0.294mm (H) x 0.294mm (W)
Color quantity: 16.7M, 72% (CIE1931)
Screen weight: 1.67Kgs (Typ.)
Refresh frequency: 60Hz
Signal system: 30 pins LVDS (2 CH, 8-bit), terminal
Supply voltage: 5.0V (Typ.)
Maximum rating: storage temperature: -20 ~ 60 degrees C operating temperature: 0 ~ 50 degrees C
Screen type: LCD module, a-Si TFT-LCD
Pixel configuration: RGBW vertical strip
Appearance size: 396 * 324 * 18.3 mm (H * V * D)
Surface treatment: Fog (Haze 1%), Hard, coating (3H)
Contrast: 1000: 1 (Typ.) [transmission]
Optical mode: TN, normally white display, transmissive type
Response speed: 8 (Typ.) (G, to, G) MS
Backlight type: WLED, 50K hours, including LED drive

CPU: RK3188, quad-core, frequency 1.6GHz
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB socket
Serial port: 3 serial socket
TVIn: CVBS input 2, support N, P standard
GPS: built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M / 100M adaptive Ethernet
Timing switch machine: support

Digital Advertising Media 86 Inch IR Touch LCD TV Screen

Digital Advertising Media 86 Inch IR Touch LCD TV Screen
