Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage
Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage
Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage
Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage
Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage
Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage
Specifications
Brand Name :
HUIGUAN
Model Number :
HG-2041
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
30days
Packaging Details :
Carton box,Wooden frame/case
Product name :
LCD video wall
Screen Size :
43/46/49/55/65 inch (Option)
Input Voltage :
AC100~240V 50/60Hz
Brightness :
500cd/m2 ~ 700cd/m2 (OPTION)
Pixel Pitch :
0.248(H)x0.745(V)mm
Type :
TFT
Viewing Angle :
89/89/89/89
Contrast Ratio :
4000:1
Response Time :
8ms
Operating system :
Stand-alone / android / win (option)
Keyword :
video wall controller
System :
Andriod. Windows
Description

Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage

Products Description

the videowall 55" DID indoor 2x2 2x3 3x3 4x4 screen digital signage lcd Display splicing samsung 4k controller cheap video wall

Specification

1. Support 4K HD Play
2. Mobile/computer control
3. Screen Size: 43/46/49/55/65 inch (Option)
4. Ultra-narrow border: 0.88/1.8/3.5/5.5mm (Option)
5. Four installation methods : Cabinet / Floor standing / Front maintenance / Wall mount
6. Three external connections: splitter/matrix/processor

Panel parameters

Screen size 55" 65" 70" 75" 86"
Display area 1208.6(H)x679.4(V) 1427(H)x803(V) 1538(H)x865(V) 1650(H)x928(V) 1872(H)x1053(V)
Aspect Ratio 16:09 16:09 16:09 16:09 16:09
Resolution 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080
Pixel spacing 0.630x0.630 mm 0.744x0.744 mm 0.744x0.744 mm 0.744x0.744 mm 0.744x0.744 mm
Number of Color 16.7M 16.7M 16.7M 16.7M 16.7M
Brightness 300cd/m2 300cd/m2 300cd/m2 300cd/m2 300cd/m2
Contrast 4000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
View angle 178°/178° 178°/178° 178°/178° 178°/178° 178°/178°
Response time 6ms 6ms 6ms 6ms 6ms
Life Time ≥50000h ≥50000h ≥50000h ≥50000h ≥50000h
CPU Clock Speed 1.6GHz
Working humidity 20%~80%
(Non frosted)
Power parameter
Power AC 110~240V,50/60Hz
Rated power ≤105W ≤135W ≤140W ≤175W ≤220W
Standby power ≤1W ≤1W ≤1W ≤1W ≤1W

Ultra Narrow Bezel 3.5 Mm HD 4K Indoor Smart Digital Signage

Features

1. Full hardware architecture, professional splicing chip design without CPU and operating system
2. Multi-line parallel processing with powerful processing functions;
3. Integrated multiple video signal sources

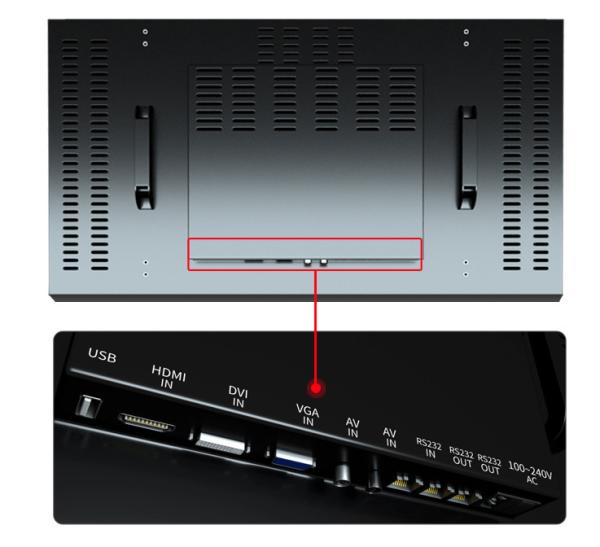

4. RS232 serial port remote control; support two RS232 loop-outs
5. Can open the underlying communication protocol, which is convenient for users to flexibly adopt third-party central control,
system or self-programmed software to construct a large screen engineering system
6. Embedded firmware intelligent upgrade system.
7. Narrow border full metal frame design
8. Fully silent industrial fan with automatic temperature switch
9. With 3D noise reduction, 3D filtering, 3D deinterlacing
10. Comes with a large screen splicing piece, a healthy splicing, easy to use
11. With energy saving, environmental protection, no radiation, support 7 * 24 hours of uninterrupted work, adapt to a variety of
working environments that need to be turned on for a long time
12. Uniform brightness, stable image, no flicker, no distortion
13. Applicable to: commercial institutions, large shopping malls, specialty stores, franchise stores, hypermarkets, star hotels,restaurants, travel agencies, drug stores, etc.
