Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
Specifications
Brand Name :
HUIGUAN
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
negotiation
Delivery Time :
negotiation
Packaging Details :
negotiation
Certification :
CE, FCC, ROHS, CCC, ISO9001, ISO4001
Contrast Ratio :
1200:1 (typ.)
Brightness :
300 cd/m²
CPU :
CORTEX-A7
Language :
Chinese/English
Voltage :
AC90-240V50HZ/60HZ
Working Temperature :
0°C ~ 40°C/20%-80%
Description

Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display

Functions

1. Multiple video and picture formats are supportive. UHD or FUD makes you enjoy your watching.

2. It can set timing switch in sections. Never won't be forget to switch off. It's more energy-saving and enviornmental-friendly.

3. It can be controlled by managers through terminal software. Easy operation,high confidentiality and can be connected to a network,transmission and playback the media files through the network. Flexible advertising management software makes the users access and control the content from anywhere when internet avaliable.

4. Smart split screen playback and various special effects are available. Our wall mount digital signage support split screen freely, in different area display different content, like pictures and videos. Also users can add weather, local clock and text doc like your company's name on the screen.

Appearance

1. Straight edge design makes it simple and elegant.

2. Hardware frame is industrial quality.

Optional plans

1. Normal type is economical and easy to control. Featured mobile subtitles are also available.

2. Android type is remote controlled and pictures and videos are fast to run under network.

Parameters

Panel Panel size 19.1" 28" 37"
Resolution 1920*360 1920*360 1920*540
Active Area 476.64*89.37 mm 699.84*131.22 mm 904.32*245.34mm
View Angle 89°(H) / 89°(V) 89°(H) / 89°(V) 89°(H) / 89°(V)
Response Time 30ms (typ.) 8ms 6.5ms
Contrast Ratio 1200:1 (typ.) 1200:1 (typ.) 4000:1 (typ.)
Brightness 300 cd/m² 700 cd/m² 1000 cd/m²
System Solution A20 A20 A20
CPU CORTEX-A7 CORTEX-A7 CORTEX-A7
GPU MAIL-400MP2 MAIL-400MP2 MAIL-400MP2
RAM/ROM 1G/8G 1G/8G 1G/8G
WIFI 2.4G 2.4G 2.4G
Speaker 8Ω/5W 8Ω/5W 8Ω/5W
Language Chinese/English Chinese/English Chinese/English
System Android4.2 Android4.2 Android4.2
Connect type USB 2 2 2
TF 1 1 1
RJ45 1 1 1
HDMI 1 1 1
Earphone 1 1 1
Power Voltage AC90-240V50HZ/60HZ AC90-240V50HZ/60HZ AC90-240V50HZ/60HZ
OPS Power ≦26W ≦41W ≦80W
Standby (Watt) ≦0.5W ≦0.5W ≦0.5W
Environment Working Temperature 0°C ~ 40°C/20%-80% 0°C ~ 40°C/20%-80% 0°C ~ 40°C/20%-80%
Storage Temperature 10°C ~ 60°C/10%-60% 10°C ~ 60°C/10%-60% 10°C ~ 60°C/10%-60%
MAX Working Time 20h/day
Structure Frame Material Metal
Installment Wall Mount

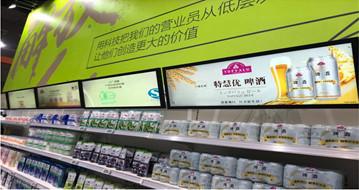

Application Scenes

Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display

Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display

Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display

Shopping Mall 19.1 Inch Wall Mounted Digital Signage Display
