IP / SDI / AHD / Analog Full HD PTZ Cameras 720p And 1080p 20X Optical Zoom Dual Control
IP / SDI / AHD / Analog Full HD PTZ Cameras 720p And 1080p 20X Optical Zoom Dual Control
Specifications
Brand Name :
Okaf
Model Number :
OK-CT500LED
Certification :
CE/FCC/RoHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability :
2500pcs per month
Packaging Details :
Standard carton
Frame rate :
25FPS & 30FPS
Usage :
Smart city
IP grade :
IP66
Double stream :
H.265/H.264
night vision :
300m
Zoom :
20X Optical Zoom
Signal :
IP/SDI/AHD/Analog
Warranty :
1year
Description

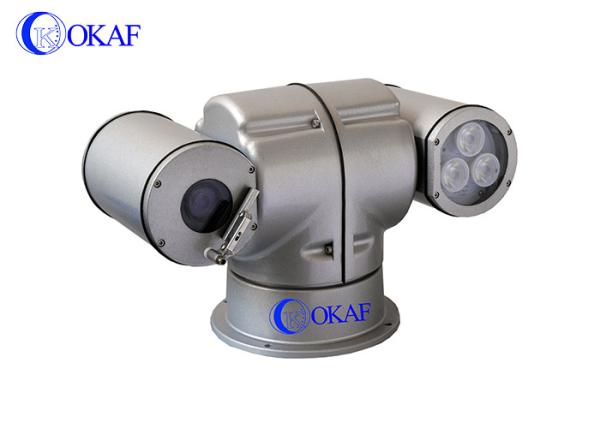

LED Strong Light Full HD PTZ Camera 2MP IP/SDI/AHD/Analog 20X Optical Zoom Camera

Product description:

1, Acceptable to a variety signals of PTZ ,IP/SDI/AHD/TVI/CVI/Analog.
2, IP PTZ supports IP and analog dual-outputs, dual control via RS485 and RJ45 network port to control PTZ camera
3, Solve the lighting conditions-frees fast target in the dark and search by strong light.
4, It is composed by strong light + infrared lighting, Lighting distance is greater than 80 meters, infrared distance of 50 meters


5, Adopt high-power LED from USA, quality and stability.
6, Accept two method drive of belt drive and worm gears
7, Support coordinates and angles to accept instructions

8, PTZ has a built-in Voltage Regulator Module ,protection device for stability and durability.

Parameters:

PTZ Camera Parameters
Pan preset speed 60°/S(manual control 0°～60°/S)
Tilt preset speed 30°/S(manual control 0°～30°/S)
Pan range 360°
Tilt range ＋90°～－90°
Electric machinery stepping motor (worm and gear)
Preset positions 256 Preset positions
Control Way RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol)
Baud rate 2400Bps~19200Bps
Control protocol Pelco-D/Pelco-P
Chroma 850nm
Searchlighting Distance 100m
light power 10W*3 LED
Audio input/output Support
Alarm Input/ Output Support
Operating temperature －35°C~＋65°C
IP Grade IP66
Power Supply DC10.5V~DC16V(6A)
Weight 7.5KG(net weight)
IP Movement
　 Model 20IP 30IP
Imaging sensor 1/2.8inch “Exmor”CMOS 1/2.8inch“Exmor”CMOS
Effective pixels 2.1 mega pixels 3 mega pixels
Lens 20X optical zoom f=4.7 -94.0mm (18.20.30X optional)
Min.illumination 0.095 lUx (F1.6,ICR open)
Frame rate 25FPS & 30FPS
Double stream H.265/H.264
SDK Docking standard ONVIF protocol, support SDK secondary development
SDI/AHD Movement
Model SDI AHD
Imaging sensor 1/2.5inch CMOS 1/4inch CMOS
Effective pixels 30X 3 mega pixels (decided by movement) 36X 2 mega pixels (decided by movement)
Frame rate 60FPS & 30FPS 30FPS
