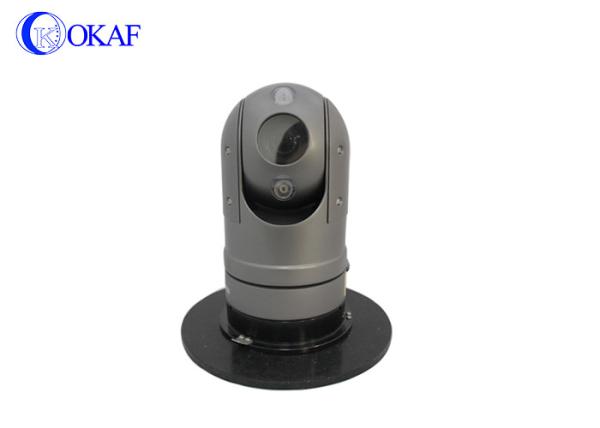

720P Full HD PTZ Camera , AHD MINI CCTV PTZ Dome Camera With Strong Magnet Sucker
720P Full HD PTZ Camera , AHD MINI CCTV PTZ Dome Camera With Strong Magnet Sucker
Specifications
Brand Name :
Okaf
Model Number :
OK-CQ50DM-20AHD
Certification :
CE/FCC/RoHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, L/C, MoneyGram etc
Supply Ability :
2500pcs per month
Packaging Details :
Standard carton
Control Way :
RS485
Model :
AHD
IP grade :
IP66
feature :
360 degree rotation
night vision :
50m
Zoom :
20X Optical Zoom
Signal :
AHD
Warranty :
1year
Description

CCTV Surveillance Full HD Infrared Dome AHD MINI PTZ Camera With Strong

Magnet Sucker

Product description:

1, Acceptable to a variety signals of PTZ ,IP/SDI/AHD/TVI/CVI/Analog.
2, IR distance is 50 meters. It could catch image promptly at night.
3, The built-in Defrosting and Defogging devices, which ensures the normal use in temperature difference environment.
4, Support coordinates and angles to accept instructions
5, PTZ has a built-in Voltage Regulator Module, protection device for stability and durability.

Parameters:

PTZ Camera Parameters
Pan preset speed 120°/S(manual control 0°～80°/S)
Tilt preset speed 60°/S(manual control 0°～40°/S)
Pan range 360°
Tilt range ＋90°～－90°
Electric machinery stepping motor (belt gearing)
Preset positions 256 Preset positions
Control Way RS485
Baud rate 2400Bps~19200Bps
Control protocol Pelco-D/Pelco-P
Chroma 850nm
Distance 50m
Infrared light 3W*2
Audio input/output Support
Alarm Input/ Output Support
Operating temperature －35°C~＋65°C
IP Grade IP66
Power Supply DC10.5V~DC16V(3A)
Weight 2KG(net weight)
Lens 20X optical zoom f=4.7 -94.0mm (18.20.30X optional)
Min.illumination 0.095 lUx (F1.6,ICR open)
Frame rate 25FPS & 30FPS
Double stream H.265/H.264
SDK Docking standard ONVIF protocols,Support SDK secondary development
AHD Movement
Model AHD
Imaging sensor 1/4inch CMOS
Effective pixels 36X 2 mega pixels (decided by movement)
Frame rate 30FPS
