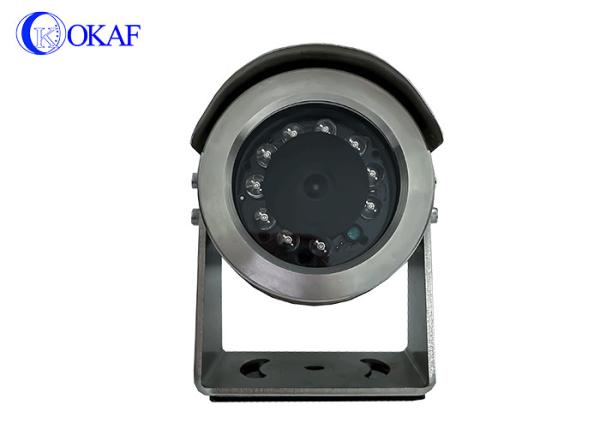

ONVIF 3.6mm Lens Explosion Proof Car Camera Outdoor 15m IR
ONVIF 3.6mm Lens Explosion Proof Car Camera Outdoor 15m IR
ONVIF 3.6mm Lens Explosion Proof Car Camera Outdoor 15m IR
ONVIF 3.6mm Lens Explosion Proof Car Camera Outdoor 15m IR
Specifications
Brand Name :
OKAF
Model Number :
OK-808
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram,paypal,, D/P, D/A, L/C
Supply Ability :
3000
Delivery Time :
5~15 working days
Packaging Details :
standard export carton
Product name :
Explosion Proof Car Camera Outdoor High temperature Proof Vehicle IP Camera
Camera housing :
Stainless steel
Feature :
Vandal-proof, NIGHT VISION
Lens :
Default 3.6mm
Network :
ONVIF, Ip, SDK
IR Range :
up to 15m
Description

Explosion Proof Car Camera Outdoor High temperature Proof Vehicle IP Camera

Specification

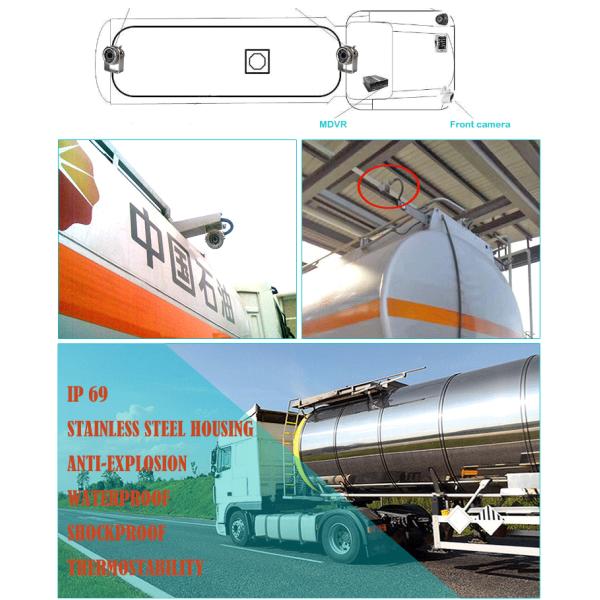

OKAF Vandal-proof car cameras have high anti-explosion, waterproof and vandalproof quality, widely applied on oil tanker, fuel truck, gas truck and gas station, etc...

Technical data

Model OK-808
General
Marking: Ex II2G db ⅡC T6;
Ex II2D tb IIIC (85°C) Db
Ingress Protection: IP66
Operating Conditions: -30 °C ~ 70 °C (-22 °F ~ 158 °F)
Humidity 95% or less (non-condensing)
Material: 304L stainless steel
Power Supply: DC12V
IR Range: Up to 20m
Dimensions: Camera: 106 × 85 × 119 mm
Unit weight: 2.8 kg
Electrical Connectivity: Composite Cable
Interface spec: G-1/2''
Method of installation: Ceiling type & wall mounting
Camera
Image Sensor: 1/2.8" CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on
Shutter time: 1/50(1/60)s to 1/10,000s
Lens: 4mm/6mm/8mm optional
Day& Night: ICR (Auto/Schedule/Alarm Trigger)
Compression Standard
Video Compression: H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
H.264 code profile: Baseline profile/main profile/high profile
Video bit rate: 32Kbps~16Mbps
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Day/Night Switch: Auto/Schedule/Triggered by Alarm In
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface

Application

ONVIF 3.6mm Lens Explosion Proof Car Camera Outdoor 15m IR

ONVIF 3.6mm Lens Explosion Proof Car Camera Outdoor 15m IR
