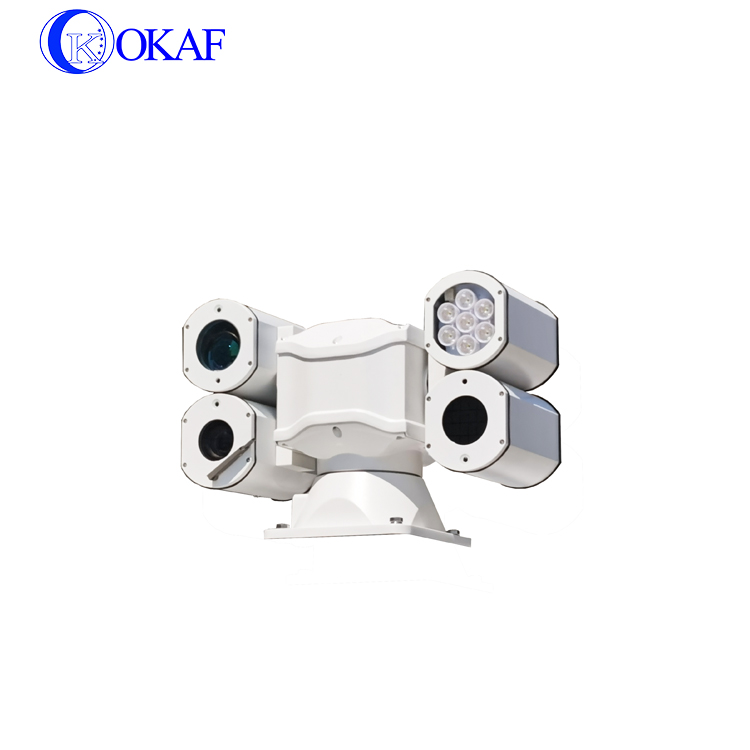

Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Methane Detection 15mm Lens 1080P 2MP IP PTZ Camera
Specifications
Brand Name :
OKAF
Model Number :
OK-CT803RI-20IP-MDT
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
Negociate
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
2000 units/ month
Delivery Time :
5-10 working days
Packaging Details :
Standard export carton
Product name :
Methane detection Long Range Thermal Image Vehicle Car Mounted 1080P 2MP IP PTZ Camera
Thermal lens :
15mm
Thermal camera resolution :
384*288
Day camera resolution :
1920*1080P
Function :
Methane detection, Mobile Remote Viewing
Image :
Thermal imaging + visible light camera
Waterproof :
IP66 waterproof
Power supply :
DC12V
Camera weight :
7.5kg
Description

Methane detection Long Range Thermal Image Vehicle Car Mounted 1080P 2MP IP PTZ Camera

Product Description

Specifications

♦ High strength alloy aluminum crust, shock resistance, corrosion protection in all-weather environment.

♦ PTZ has super seismic characteristics, This system is especially good for Vehicle monitoring or prison monitoring

♦ PTZ has a built-in decoder, integrate multiple protocols.

♦ 360°Continuously rotation ,upward angle +90°~ -25°,no blind spot.

♦ Vehicle power voltage—input range: DC10.5V~DC18V.

♦ Supporing coordinates and angles to accept instructions.

♦ Integrated infrared thermal camera, visible light camera,PTZ control system, day and night omnidirectional video surveillance.

♦ Using thermometer, no light source limitation, clear imaging.

♦ Day and night 2 megapixel star level low illuminance color camera for detail observation.

♦ Support standard ONVIF protocol, back-end compatible with market standard onvif recorder recording and control.

♦ Excellent thermal image effect 388*284 resolution.

♦ AGC automatic gain adjustment, 3D noise reduction, DDE image detail enhancement.

♦ Black hot / white hot / iron red / rainbow and other fake colors (14 kinds of pseudo color adjustable).

♦ Accurate temperature measurement, the highest temperature cross positioning.

♦ Support 1 line temperature measurement 10 box temperature measurement and 10 point temperature measurement

♦ Temperature range: -40 ℃ -550℃ temperature measurement accuracy: ± 2 degrees (or ± 2% of the range);

♦ abnormal temperature alarm, support 2 hardware alarm input, 2 alarm output.

Complete system

Vehicle thermal ptz camera

• Methane detection

•Thermal image +visible light image

• Thermal lens 15mm, human detection distance 300m

• Visible light lens 4.7~94.0mm 20x optical zoom

• PTZ 360 degree rotation.

Vehicle 4 channel NVR

• Video Input: aviation connector,digital component signal access.NVR and PTZ camera connect by special aviation cable, support 1 channel 1080P IP PTZ camera input and 4 channel AHD input or analog input.

• Video Output:1 channel CVBS output, 1 channel VGA output,(1 channel aviation plug).

• Hard disk drive: support 1 2.5" HDD/SSD with SATA interface. The max. storage is 2T. Support 1 SD card at the same time, the max. storage is 128G.

• Network port: RJ45 port / 3G/4G port
• GPS Port: Built in GPS for vechile position.

• Power Supply: DC 8~36V.

Vehicle Screen with Joystick

♦ Integration of 8" monitor and 4-dimensional keyboard makes it small volume, light weight and superior appearance.

♦ Used for controlling PTZ camera.

♦ 8" LCD resolution:1280*760.

♦ RS485 control output signals, convenient for controlling device near and in distance.

♦ Input signal is 1 channel VGA HD signal and 1 channel BNC analog signal.

♦ Baud rate:1200 bps~9600 bps; Protocol:Pelco_P,Pelco_D.

♦ Supply voltage:AC/DC 9V~12V; Power:25W

Application

The roof mounted PTZ Camera has been designed for all kinds of police car, communication commanding vehicle, fire truck and other vehicles that require for surveillance. It is mounted on the car roof for dynamic forensics, urgent rescue, site monitoring, accident handling etc. Our Methane detection thermal image PTZ camera has been designed for Coal mine construction surveillance.

Solutions

We usually provide complete system to customers which including 4G NVR(DVR), as well as screen with joystick. We have our own software mobile video surveillance platform. Our software is free using. Our server could be free using for a year.

Our software PC client

Cellphone client

Technical data

Model OK-CT803RI-20IP-MDT
sensor performance

Detector type

 VOx uncooled thermal FPA
Resolution 384*288
Pixel Pitch 25μm

Noise equivalent

temperature difference

 ≤100mK@f/1,300K
Field Frequency 50HZ
Wavelength coverage 8-14um
Lens Focal length 15mm
Field angle 11°*8.2°
Avoid focusing range 3m~∞
Lens type

Fixed focus without heating up
Thermal operation luminance/gain adjustment

Manual Brightness /Gain;Auto Brightness/Manual Gain; Auto Brightness/Gain
Polarity switching Black thermal/ white thermal
Digital Zoom 2x
Calibration to Tag Auto / Manual
Noise reduction features yes
Image enhancement yes
Auto Brightness/Gain setting 2 fixed model,8 User-defined Settings mode
Gray alarm instrument built-in ,6 grade of recovery
Human(detect) distance 300m
Vehicle(detect) distance 390m
Human(recognize) distance 100m
Vehicle(recognize) distance 130m
Power supply Voltage DC12V
Power Consumption ≤2W(normal working temperature 25°C)
PTZ function Preset pan speed 100°/S
Preset tilt speed 80°/S
Manual pan speed 0°~60°/S
Manual tilt speed 0°~40°/S
Pan range 360° rotating
Tilt range -90°~+90°
Preset positions 256 positions,6 tracking
Control Method RS485,built-in 16 protocols,baud rate:2400 Bps~19200 Bps optional
Power supply DC12V
wiper function Support
Network parameter Standard TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP, FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181
Video compression H.264/H.265
Audio compression G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726
Compress the output bit rate 32Kbps—16Mbps
Interface protocol ONVIF/PSIA/CGI/ISAPI
communication protocol PelcoD-P
Intelligent alarm Motion detection, occlusion alarm, memory full, memory error
Preview video at the same time More than 10 channel
User right Up to 32 users, 3 levels:Administrators, operators and ordinary users can only browse
Video output PAL
Alarm Switching signal(used to Gray alarm)
Working temperature -20℃-+50℃
Storage temperature -40℃-+65℃
Extend function Methane detection
