Manual Telescoping Camera Mast , Surveillance Telescopic Antenna Tower Aluminum
Manual Telescoping Camera Mast , Surveillance Telescopic Antenna Tower Aluminum
Manual Telescoping Camera Mast , Surveillance Telescopic Antenna Tower Aluminum
Manual Telescoping Camera Mast , Surveillance Telescopic Antenna Tower Aluminum
Specifications
Brand Name :
okaf
Model Number :
OK-SD3-20SJ-LED
Certification :
CE,FCC,ROHS
Place of Origin :
SHENZHEN
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal, L/C, D/P
Supply Ability :
200
Delivery Time :
5-15 working days
Packaging Details :
Standard export carton
Load :
5-30kg
Anti-wind capability :
level 12 wind: can not be destroyed
Linear way :
outset
Keyword: :
High mast lighting tower
Material :
Aluminum alloy
OEM/ODM :
Welcome
Mounted :
On the ground or vehicle
Description

10m Aluminum Manual Telescopic Antenna Mast Surveillance Camera Mast Tower

Manual Telescoping Camera Mast , Surveillance Telescopic Antenna Tower Aluminum

Manual telescopic mast operation instruction:

1. Insert the hand crank, turn it in clockwise to rise, and stop rising when a red mark show.

2. Turn it in counterclockwise, the mast descends under loading. (If the load capacity is less than 5KG, you could pull down the guy wire of the upper section while turn it in counterclockwise to descend the mast.)

Precautions:

1.It is not allowed to use without guy wires.

2.In the process of descending, if any steel wire rope is found loose, it should stop descending. Please rise the mast in clockwise to tighten the rope, and then descend the mast.

Environmental adaptability:

Items

Test condition

Telescopic mast

Anti-wind capability

Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull angle: 30-40 degrees, the guy wire is tight).GJB74A-1998 3.13.13

Height

Can customize 3-18m

Operation mode

Hand cranking

LED light

100 each

Linear way

outset

Bearing weight

According to the height of lifting rod and installation items to determine

Interface

150 flange interface

Humidity

less than 90%(temperature 25°)

Maintainability

Wearing parts easy to disassemble; components can be repaired and maintained by tools; general maintenance and repair time≤30min

Security

Self-locking at any height; would not fall at any time

Tripod

Material

ferrous material

effect

Fixed telescopic mast

Size

According to the height of the telescopic mast to determine.

The higher the level, the bigger the tripod.

Related Products:

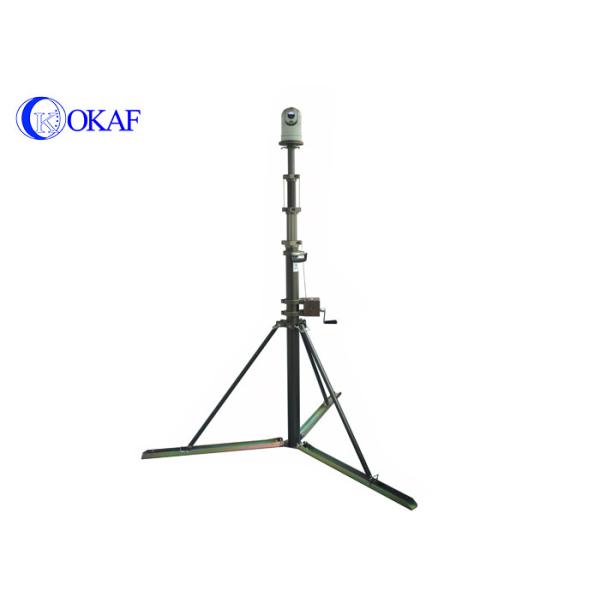

Optional holder camera mounted on the mast.
