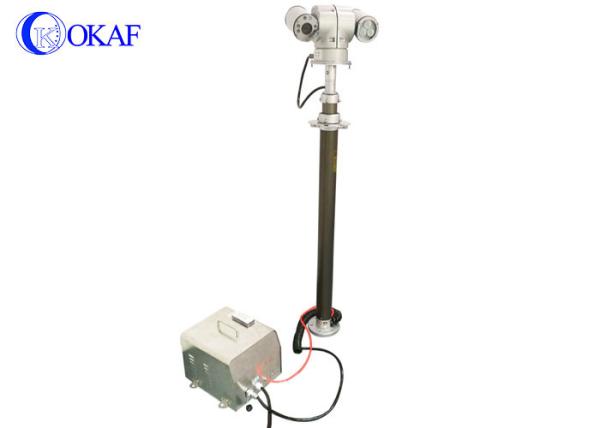

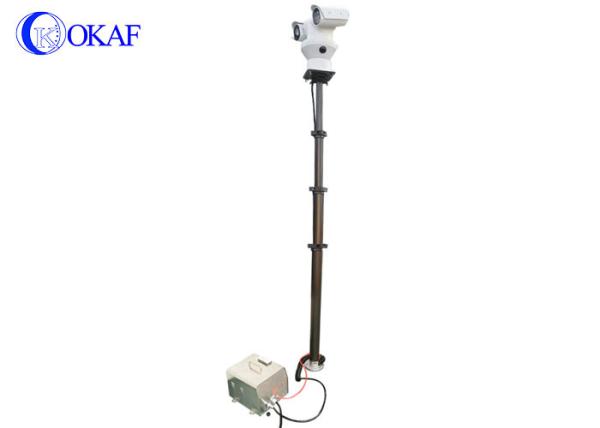

5.5 Meter 18ft Pneumatic Telescoping Antenna Mast RS485 Remote Controller
5.5 Meter 18ft Pneumatic Telescoping Antenna Mast RS485 Remote Controller
5.5 Meter 18ft Pneumatic Telescoping Antenna Mast RS485 Remote Controller
5.5 Meter 18ft Pneumatic Telescoping Antenna Mast RS485 Remote Controller
Specifications
Brand Name :
Okaf
Model Number :
OK-QD-55G-02
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Pcs/month
Delivery Time :
5-10 working days after confirm order
Packaging Details :
Standard export wood box
Material :
Aluminum alloy
Surface treatment :
hard anodized treatment
Extended height :
5.5m (18ft)
Retracted height :
2.2m (7.2ft)
Lifting way :
Pneumatic
Max load capacity :
100kg (220Ibs)
Max wind speed :
18m/s
Type of Control :
Wireless remote controller and RS485 wired control
Power supply :
DC12V/ 24V
Warranty :
1 year
Description

5.5 Meter 18ft Pneumatic Telescopic Mast RS485/ Remote Controller Dual control Telescopic Tower

Specification of pneumatic telescopic mast

1.Pneumatic mast is a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion of air.

2.Available Extended height:2m to 30m can be customized. Head load capacity: 5kg to 120kg.

3.Lifting is by air compressor. The telescopic pole raised or down can be controlled by the remote controller or by RS485 system.

4.The material is high strength aluminum alloy. It is lightweight but intensity.

5.The Tube surface treatment is Hard anodizing which is Which again corrosion, rust and acid rain. It can last longer time even the bad environment.

Technical data of pneumatic telescopic pole

Model OK-QD-55G-02
Material High intensity aluminum alloy
Surface Hard Anodized Treatment
Initial Height 2.2 Meter ( 7.2 ft)
Extended Height 5.5 Meter (18ft)
Max load capacity 100 kg (220 lbs)
Maximum Diameter 133 mm (0.44 ft)
Cable Internal cable or external cable
Dual control Wireless remote controller and RS485 wired control
Power supply DC12V/ 24V

Okaf pneumatic telescopic mast advantages

1. Convenient to operate. The pneumatic telescopic mast is dual control by remote control and RS485 system control.

2. Lightweight but high intensity. We use high intensity aluminum alloy, the tubes is lightweight and very stable. The wind resistance 8 degree could also work well.

3. The function and working height can be customized according to your requirements. Our professional technician team will help to provide best solution for you.

4. Widely application. The pneumatic telescopic poles are widely applied to surveillance ptz camera elevation,tracking or detection,communications emergency,base ans facility security, intelligence gathering, sensor elevation and elevated antenna etc.
