Specifications
Brand Name :
OKAF/ OEM
Model Number :
OK-QD-PP06S
Certification :
CE/ RoHS, FCC
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
30 DAYS
Packaging Details :
wood carton box
Material :
6063 Aluminium Alloy
Surface :
hard anodized treatment
Type :
Pneuamtic Mast
Operate by :
Air compressor
Color :
silver white or bronze
Max height :
6.5M
Max payload :
80kg
Wind load capacity :
66km/hour
Packing :
Wood carton box
Description

FOB Price 80KG Head Load 6M Pneumatic Camera Telescopic Mast Aluminium Alloy From OKAF Manufacturer

What is a Pneumatic Mast?

Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:3m to 30m
Head load capacity:

5kg to 300kg.

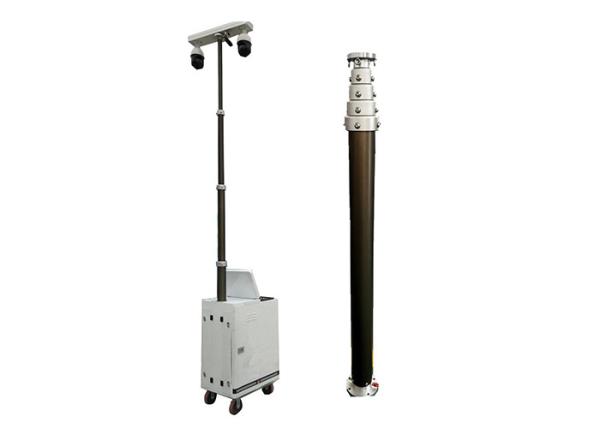

Model OK-QD-PP06S
Mast Lifting Self-locking Pneumatic
Work height 6500mm
Retracted height 1800mm
Payload 80kg
Wind resistance 66km/h
Stability Tripod, car clamps, self-lock optional
Power supply DC12V/24V , AC220V

Kindly refer to the following questions,when you send an inquiry:

1: How is max height and how is probably payload do you need?

2: Do you need Pneumatic or manual mast ?

3: Where do you use?

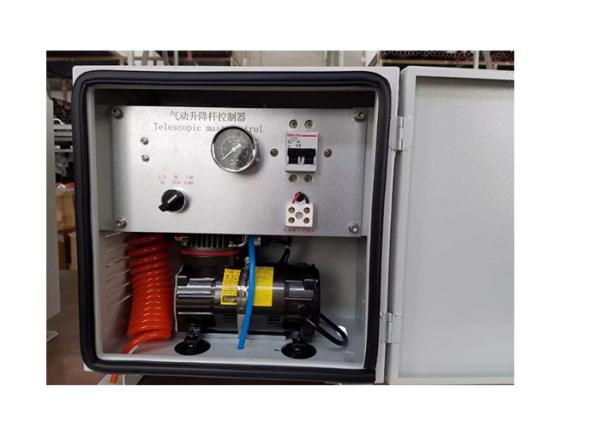

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..
