Specifications
Brand Name :
OKAF
Model Number :
OK-CQ50DM-2-4GW-SP
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200 pcs
Delivery Time :
7-15 working days
Packaging Details :
Export carton and wooden packing
Resolution :
1920*1080,2MP 1080P
Special features :
Waterproof / Weatherproof,Pan/Tilt/digital zoom
Ir distance :
100-150M
Sensor :
CMOS,1/2.8" Progressive Scan CMOS
Technology :
Pan / Tilt / Zoom,Infrared,ONVIF Supported Camera,Pan/Tilt/Zoom
Feature :
360 degree rotation,waterproof weatherproof
Description

Optical Zoom 4G IR PTZ Security IP 2MP Waterproof Camera Portable Wireless HD Outdoor For SurveillanceOptical Zoom 4G IR PTZ Security Camera IP 2MP Waterproof Wireless Outdoor For Surveillance

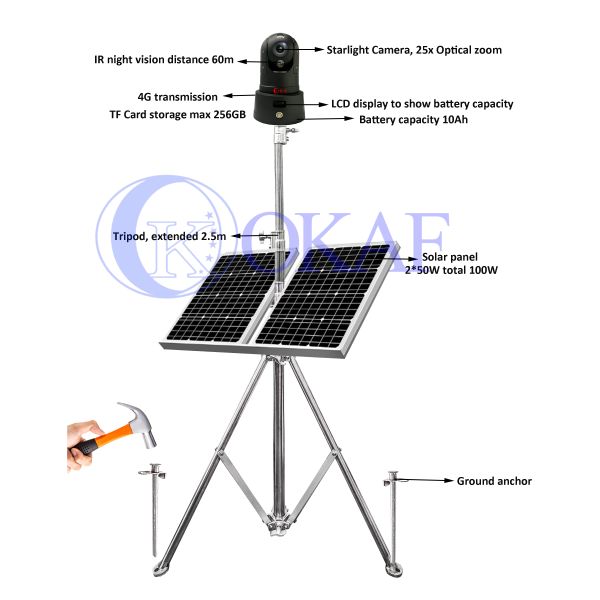

OK-CQ50DM-2-4GW-SP is an integrated wireless video emergency command product with comprehensive functions and easy to carry. It is equipped with ultra-high equipment integration, 4G high-definition hoisting ball machine, high-performance lithium battery pack, and high-definition audio speaker alarm. It has the characteristics of waterproof and shockproof, and could meet the special requirements of temporary layout control and rapid installation. When performing a task or work, the equipment can be quickly placed in a temporary position that needs to be monitored. The strong endurance ability enables the equipment to work for a long time. At the end of the task, the equipment can be easily removed. Solar and battery power supply, working 24 hours a day, solve the outdoor power problem.

Product description :

● Solar + battery power supply, reliable working for more than 24 hours, and continuous working of direct charging or external battery ;

● Aluminum alloy body with lighter weight and protection level of IP66 ;

● High-definition image quality, 1080P, 30 or 20 times 2 million pixels Hikvision or Dahua camera ;

● Support 4G all-network communication and WIFI ;

● High-performance H. 264 / H. 265 video coding, which saves more space ;

● Support the mobile phone and remote viewing of EZVIZ platform or Imoulife cloud open platform ;

● Support cloud storage ;

● Maximum support 256G, larger storage capacity, more stable network ;

● Support two-way speech intercom ( non-standard ) ;

● Support remote warning prompts ;

● Infrared distance of 50 m ;

● Support the national standard GB28181 platform and OKAF Police Dynamic Forensics System Platform ;

● Support the state of electricity display ;

● Quick installation and disassembly of the platform magnet sucker ;

● Use military aircraft box to prevent fall, waterproof and extrusion ;

● The client supports up to 10 clients to watch at the same time for free ;

● Customers freely and arbitrarily share equipment settings, independent, safe and reliable ;

● Three levels of prevention : waterproofing, dust prevention and fall prevention, which are suitable for all-weather field operations ;

● A 2.5 meters tripod is configured to achieve 360 - degree dead-angle monitoring.

Optical Zoom 4G IR PTZ Security Camera IP 2MP Waterproof Wireless Outdoor For SurveillanceOptical Zoom 4G IR PTZ Security Camera IP 2MP Waterproof Wireless Outdoor For Surveillance

Extended functions:

● Support person statistics, motor vehicle and non-motor vehicle statistics ;

● Support face capture, license plate capture, wearing helmet and other information uploaded through FTP server.

Product parameters :

Items Description
Video Video compression format H.265;H.264
Double stream Support
Resolution 1080P/720P/D1
Preview function Real-time video preview
Audio Intercom Optional accessory
Storage Local storage 1 SD card,MAX suooprt 256G
Wireless network 4G/3G Built-in 4G full network communication module, down compatible
WIFI Built-in WIFI module supports 802.11b / g / n
Extended Interface RJ45 Network Interface, Charging Interface, Audio Input and Output Interface
4G camera Sensor type 1/2.8" Progressive Scan CMOS
Networking protocol IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP
Signal system PAL/NTSC
Minimal illumination

Color pattern:0.05Lux @ (F1.6,AGC ON)

Black and white pattern:0.01Lux @(F1.6,AGC ON)

Day and night conversion mode ICR Infrared filter type
Resolution 1920*1080 1280*720 D1
AI Intelligence (extended capabilities)

Support people statistics, motor vehicle and non-motor vehicle statistics;

Support face capture,License plate capture, wearing a helmet and other feature value information is uploaded through the FTP server

White balance Automatic 1 / Automatic 2 / Indoor / Outdoor / Manual/ Sodium lamp / Fluorescent lamp
3D noise reduction Support
Optical zoom 20x /30x
Infrared distance 50-80m
PTZ PTZ protocol PELCO-D/P
Horizontal rotation Angle 360°
Vertical rotation Angle -15°~90°
Preset point 256
Power supply Battery (optional) 10000 mAH
Solar energy (optional) 2 * 50W Fixed solar panels, working for 24 hours continuously
Charging time <2h
working hours >10h High definition two-way voice intercom column, audio output of 1000M chic
Two-way voice speaker (not standard standard) Audio output/ input Support
Frequency response range 140hz-15kHz
Decibels 87dB
Sound pressure level 97dB
Audio output 1000M
Maximum decibel 120db
Monitoring range 100m²
Sensitivity 200mA/ubar
Size 270*110*98mm
Tone/Volume Could be adjustable
Working voltage DC 9-14V
Tripod Extended height 2.5m (could be customized)
Working environment Temperature -20℃~ +80℃
Humidity <90%
Size Camera 160*210mm
Weight Net weight: 4kg
Gross weight:7.5kg

Accessories :

Note : Distribution and quantity are based on actual orders.

Items Quantity
4G HD camera 1
Airline 1
12.6V 5A charger 1
10000mAh lithium battery (could be customized) 1
Solar panel(50W) 2
2.5m tripod(Optional accessories: ground nail) 1
Warranty Card, certificate, specification 1
Standard with a 128G TF card 1
