Specifications
Brand Name :
OKAF
Model Number :
OK-CQ30DM-4G-LED
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200 pcs
Delivery Time :
7--15 working days
Packaging Details :
Carton packing
Technology :
Network
Type :
IP Camera
Sensor type :
1 / 2.7 inch CMOS
Extended height :
2.5m (Other height can be customized)
Built-in battery :
12V15AH, Working time: 12 hours
Temperature :
-20℃~ +60℃
Description

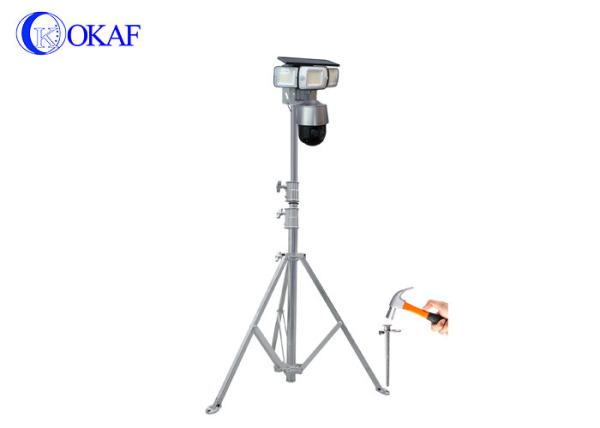

Mobile 4G HD Illuminated Ball type Camera With Built-in Battery tripod Stainless LED Emergency Lighting

Mobile 4G HD lighting ball-type camera is a comprehensive function, convenient to carry wireless video emergency command integrated products, ultra-high equipment integration, built-in high-performance lithium battery pack, equipped with high-definition sound quality intercom speaker alarm, waterproof and shock and other characteristics, can meet the special requirements of temporary control and rapid installation. When performing the task, the equipment can be quickly placed in the position to be monitored, and the task can be convenient at the end of the equipment, which is suitable for field law enforcement, investigation and control, security and security, emergency command, emergency repair, line patrol management and other industrial applications. Such as public security, traffic police, fire protection, road administration, urban management, traffic, court, prison, forestry, electric power, water conservancy, environmental protection and other units.Solar power and battery power supply, work for 12 hours, to solve the problem of no outdoor power supply.

Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod

Features:

●Configured with 2.5 meters high built-in 12V20A battery stainless steel tripod, to achieve long endurance;

●Reliable work for more than 12 hours, can be external battery sustainable work;

●Aluminum alloy shell, lighter weight, and the protection level of IP66;

●High definition image quality, 1080P, 4 times 2 megapixel Hikvision or Dahua network movement;

●5V / 760mA 22% high efficiency crystalline silicon solar panels to achieve long charging life

●Engineering grade high-light efficiency core * 108

●Dual induction head, 180°induction range

●Three-gear lighting mode is adjustable

●Support for 4G full netcom and WIFI;

●High performance H.264 / H.265 video coding, more space saving;

●Support fluorite cloud or Le Orange client mobile phone and remote viewing;

●Support cloud storage;

●Maximum support of 256G, larger storage capacity, more stable network;

●Support for two-way voice intercom;

●Support the remote alert prompt;

●Infrared distance of 50 meters;

●Support the National Standard GB28181 Platform and OKAF Police Dynamic Forensics System Platform;

●Camera rotary screw hole position quickly installation, can be removed at any time

●The client supports up to 10 customers to watch for free at the same time;

●Customers are free to share any equipment Settings, independent, safe and reliable;

●Three prevention grade: waterproof, dust-proof, anti-fall, suitable for all-weather field work;

Parameters:

Item Description
Video Video compression format H.265;H.264;H.265B;H.264B;MJPEG
Double code flow Support
Resolution 1080P/720P/D1
Preview function Real-time, video, video preview
Audio Intercom Standard
Storage Local storage 1 SD card with maximum support of 256G
Wireless network 4G/3G Built-in 4G full netcom module, can be downward compatibility
WIFI Built-in WIFI module, support for 802.11b/g/n
Extended interface RJ45 network interface, charging interface, audio input and output interface
4G Camera Sensor type 1 / 2.7 inch CMOS
Networking protocol IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP
Signal system PAL/NTSC
Minimal illumination 0.01Lux(Colour mode );0.001Lux(Black and white mode);0Lux(Infrared light turned on)
Day and night conversion mode

ICR infrared filter type

Resolution 1920*1080 1280*720 D1
Power

Basic power consumption: 2W

Maximum power consumption: 3.9W

White balance Automatic 1 / automatic 2 / indoor / outdoor / manual / sodium / light / fluorescent light
3D noise reduction Support
Optical zoom 4X
Infrared 50m
Protocol PELCO-D/P
Horizontal rotation angle 360°
Vertical rotation Angle -90°~15°
Preset point 128
LED light source Brightness Maximum of 900 lumens
Solar panel 5V / 760 m A, 22% high-efficiency crystal silicon plate
LED illuminant Engineering grade high-light efficiency core * 108
Induction Angle Dual induction head, 180° induction range
Irradiation Angle The light angle is about 270°
Light body material ABS engineering plastic
Light mode Three-gear lighting mode is adjustable
Battery 15AH
Charging time <2h
Working hours >12h
Tripod Extended height 2.5m (Other height can be customized)
Built-in battery 12V15AH, Working time: 12 hours
Accessories 3*Ground nails,Bracket bag
Working environment Temperature -20℃~ +60℃
Humidity <95%
Weight Net weight: 4kg
Rough weight: 7.5kg

Accessories:

Item Picture Quantity
4G HD Camera Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod 1
Bracket bag Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod 1
12V 5A charger Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod 1

2.5m tripod

(Built-in 15AH battery)

Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod 1
Stainless steel ground nails Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod 3
U-Type bracket Mobile 4G Illuminated Ball Type Full HD PTZ Camera With Built In Battery Stainless Tripod 1
Warranty card certificate specification 1

Note: rationing and quantity are subject to the actual order.
