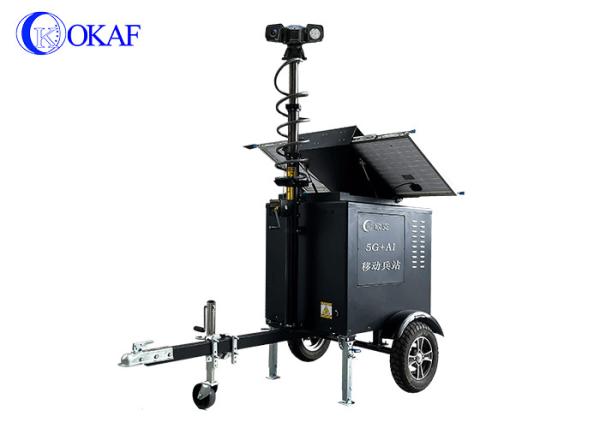

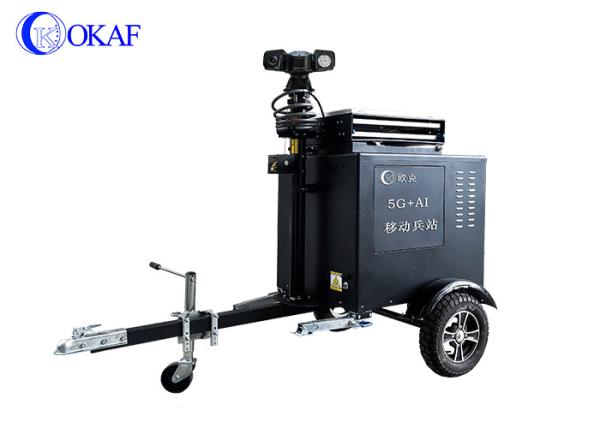

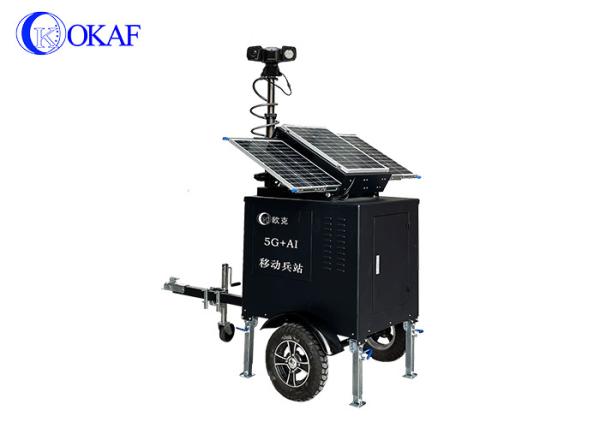

Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
Specifications
Brand Name :
OKAF
Model Number :
OK-PR07
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
1000/month
Delivery Time :
10~15 working days
Packaging Details :
Standard export wood box
product name :
Mobile CCTV Camera Tower Solar Battery Power Video Surveillance Trailer for Construction Sites
Material of trailer body :
Thicker Metal
Material of telescopic mast :
Aluminum alloy
Camera type :
Anti shock vehicle PTZ camera
Resolution :
1920*1080, 2MP
Zoom :
20x Optical zoom
Camera Pole :
3 to 6m telescopic mast available
Power supply :
Solar + battery power
Battery charge :
AC220~240V
Support :
Remote real time HD Video viewing
Description

Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites

Features of OKAF Mobile Sentry Solar CCTV Tower

● No need to disassemble,easy to use and operate.

● No need to set points and wiring, reduce the cost of deployment.

● Rapid deployment.One can complete the system within 5 minutes to meet emergency need.

● Automatic lifting mast, full coverage at high and low levels, eliminating monitoring blind spots.

● Thickened metal body, galvanized rust-proof bracket, more durable equipment.

● 4G, LTN multiple signal transmission modes, data transmission is safe and smooth.

● Automatically downloads data functions, can send images back to the command center via WIFI or 4G, can view videos, play back videos, etc. through mobile phone or computer.

● High Definition Intelligent Tracking Camera (20x optical zoom, 2.0 megapixel, resolution 1920*1080P).

● Use hard disk storage, maximum support 2TB, larger storage capacity, more

stable network.

● Solar and battery power, long running time. Can work 2~3 days for a full charge.

Application of Mobile Sentry Solar Trailer

OKAF solar CCTV Trailer aims to solve today’s challenges facing security personnel, such as:

♦ Urgent surveillance for emergency rescue.

♦ Unpredictable threats.

♦ Change of incident locations.

♦ Surveillance for construction site.

♦ Surveillance for all kinds of events.

♦ Harsh environments that threaten personal safety

♦ Surveillance for unavailability of electricity, communication and lighting.

Technical data

Camera parameters
Model HD PTZ cameras
Resolution 1920×1080P
Frame rate 25/30 fps
Audio video compression H.264/H.265
Optical zoom 20X
Rotation Speed Pan preset speed
Pan/Tilt range Pan: 360°,Tilt: ＋0°～－90°
IR distance 60 meter
Network port RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Audio mode External active microphone or linear input, linear output
Network protocol IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
Dual stream Support
Video output BNC & RJ45 output
Video parameters
Video input 4 channels network 1080P, Aviation connector
Video output 1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω
Preview function 1 way ,4 screen splicing preview,support manual/ Event trigger full screen display function
Video resolution Support 1080P,720P,D1,HD1, CIF optional , support up to 4 way 1080P.
Audio input 4 way,Aviation connector
Audio output 1 way
Compression format G.711, rate 8KB/s
Alarm Output 2 way switch output linkage sound and light alarm, cut off oil, etc.

Communication interface

Communication interface

 2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc.
2 way 485 interface,Expandable PTZ
2way CAN bus interface
Wireless transmission Support built in 3G wireless transmission function. WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE；
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Positioning Support built-in GPS / BD module, can report to the standard platform
Hard disk Supports large-capacity 2.5-inch hard disk (up to 2T)
Input voltage DC:+8V ~ +38V
Power supply 200AH rechargeable lithium battery
Solar power 3*120W total 360W
Project Test conditions
Height 6 meter(can be customized according customer requirements)
Wind resistance Class 8 winds work normally Class 12 winds are not destroyed
Low temperature storage -55°
Low temperature work -40°
High temperature storage 70°
High temperature work 55°
Humidity Less than 90%(temperature 25°)
Rain 6mm/min continuous 1h
Rated load Lifting ≤120N
Lifting speed Average speed 4m/min
Safety Self-locking at any height

Mobile Sentry Video Surveillance Trailer CCTV Camera For Construction Sites
