400Ah CCTV PTZ Camera Security Surveillance Trailer 1920*1080P Mobile Sentry
400Ah CCTV PTZ Camera Security Surveillance Trailer 1920*1080P Mobile Sentry
400Ah CCTV PTZ Camera Security Surveillance Trailer 1920*1080P Mobile Sentry
400Ah CCTV PTZ Camera Security Surveillance Trailer 1920*1080P Mobile Sentry
Specifications
Brand Name :
OKAF
Model Number :
OK-PR04
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram,paypal, D/P, D/A, L/C
Supply Ability :
1000/month
Delivery Time :
10~15 working days
Packaging Details :
Standard export wood box
Product name :
Mobile Video Surveillance CCTV Camera Tower Security Surveillance Trailer 1920*1080P
Camera :
1920*1080P HD PTZ Camera
Zoom of camera :
20x 30x Optical zoom
Night vision :
60m
Power supply :
Solar + lithium battery power
Solar power :
100W solar panel
Battery capacity :
100Ah /200Ah /400Ah optional
Camera pole :
3.5m 4.2m 5.7m, extended height telescopic mast
Description

Mobile Video Surveillance CCTV Camera Tower Security Surveillance Trailer 1920*1080P Mobile Sentry

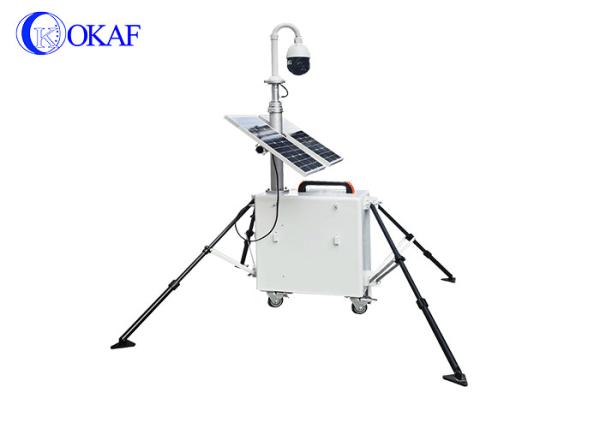

Mobile Sentry Solar Trailer System Components:

OKAF mobile sentry security camera trailer compose of ptz camera, Mast lifting system, transmission system , Solar Power and trailer body. It is convenient to install, integrated design makes the operation so easy. The Mobile cctv trailer is functional, it comes with the wheels which is ideal for rapid deployment and movement. Integrated telescopic mast with bracket, convenient to fix, the surveillance mast can be up and down. The HD 360 degree rotation cameras mounted on the telescopic mast. The system support wifi/3G/4G wireless network transmission. Built in battery, could work 5 to 7 days( according to the battery capacity). Customized function: support pedestrian flow control,Temperature and humidity monitoring,dust monitoring etc.

Advantages of OKAF Mobile sentry solar camera tower

HD local video reviewing, 4G transmission, wifi GPS function, local storage, built in high capacity battery,with solar power, rapid deployment, PTZ control. Automatic lifting masts, eliminating monitoring blind spots. Easy to use without disassembly. Thickened metal body equipment is more durable.

Technical data

Camera Camera type High definition IP PTZ camera
Pixel 2.0MP
Resolution 1920*1080 @ 30fp
Optical zoom 20x /30x optical zoom optional
Camera rotation angle 360° horizontal continuously rotation
-15°~ +90°Vertical rotation
Network port RJ45 10Base-T/100Base-TX PoE(IEEE802.3af
Video Transmission & storage Video input 4 channel network 1080P, aviation interface
Video output 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω
Preview function Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function
Video resolution Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P
Audio input 4channel, Aviation interface
Audio output 1channel
Alarm Output 2-way switch output, linked audible and visual alarm, oil and power off, etc.
communication interface 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc.
2 way 485 interface, can extend PTZ
2-way CAN bus interface
Wireless transmission Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Position Support built-in GPS / BD module, can report to the platform
Hard disk Support large capacity 2.5-inch hard disk (maximum 2T)
Power supply Battery 12V·200Ah
Solar 2*50W /2*100W/ 4*100W Optional
AC Power AC220V
Trailer body & Mast Material Metal
Extended Height 3.5m ( 3 to 6m available)
Wind power 19m/sec
Lifting Manual or pneumatic
Local viewing With monitor for local viewing

Application of Mobile sentry CCTV Trailer

OKAF mobile solar Trailer aims to solve today’s challenges facing security personnel, such as:

♦ Urgent surveillance for emergency rescue.

♦ Change of incident locations.

♦ Surveillance for all kinds of events.

♦ Harsh environments that threaten personal safety

♦ Surveillance for unavailability of electricity, communication and lighting.

♦ Intelligent city, Safety construction.

♦ Unpredictable threats.

♦ Mobile Surveillance for construction site.
