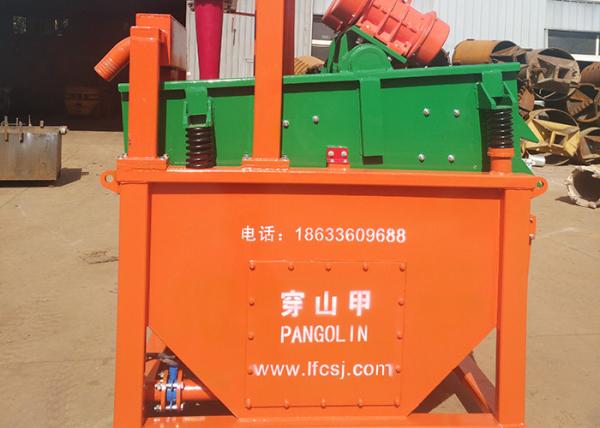

30㎥ Horizontal Directional Drilling Mud Recycler System

Corrosion Resistant And Rainproof HDD Mud Recycler / Mud Treatment System

Advantages

1. Modular design, small footprint, flexible configuration and installation according to customer requirements.

2. The side plate of the mud box is designed as corrugated bearing heavy duty, safe and reliable, and can bear large load.

3. The system adopts centralized electrical control, easy to operate.

4. All the equipment are designed with corrosion resistance and wear resistance, with long service life.
5. Suitable for harsh drilling conditions, cold resistance, heat resistance, explosion-proof, leak-proof, corrosion-resistant, and rain-proof.
6. Simple installation and disassembly, convenient for frequent movement of drilling personnel.

Introduction

The HDD drilling fluid recovery system is designed for horizontal directional drilling rigs (HDD).

According to the needs of drilling mud, HDD mud recovery system can include vibrating screen, desilting cyclone, desilting cyclone, decanter centrifuge, mud tank, mud agitator, mud gun, transfer pump, etc. The mesh size of the vibrating screen will be based on the performance of the vibrating screen for mud flow and drilling mud separation, and in different mud requirements.

Product parameters

HDD mud recovery system working procedures

1. There is a drilling machine on each side of the drilling machine and a set of vertical mud pumps are installed on the top of the drilling machine to feed the vibrating screen. The shale shaker separates the drill cuttings and the fluid portion falls into the sand pool through the sieve hole.
2. After 1 or 2 or 3 sets of desander cyclones sit on the vibrating screen, a set of centrifugal pumps will separate the desander cyclong in the second stage, and the solid desander will discharge the vibrating screen or directly cut the box and the liquid flow desander Will flow into the desander chamber.
3. After the de-sander, a certain number of de-sand cyclones will be placed to separate fine particles. The solids except the de-sand will be discharged into the vibrating screen or cuttings box, and the fluid in the de-sand will enter the de-sand chamber .

4. The mixing pump is installed on the anti-skid chute to transport drilling mud and inject mud into the mud bucket to remix the new mud with the new chemicals. The mixing hopper can be installed on top of the tank or on the slider upon customer's request.

Main structural features

1. Good capacity and performance: The system capacity can reach 240m3/h (1000GPM), which can meet the slurry treatment of large-scale trenchless projects.
2. All parts of the equipment are connected quickly, easy to disassemble and save time.
3. The high wear-resistant polyurethane cyclone separator is the same as the international brand, can be used for more than 3800 hours, has a long service life and good interchangeability.
4. Explosion-proof lamps meet the requirements of night construction, easy to operate, safe and reliable.

Pic Show

FAQ:

1. How to order products?

Please send an inquiry with a detailed item description or model number.

2. How about ordinary packaging?

A: If there is no special packaging requirement, we will handle it as normal packaging. Put them in a small carton first, and then put them in a big carton together to ensure that the goods are complete.

3. Can I expect high-quality products?

Yes. Mature production technology ensures that product quality meets international requirements.

4. How to confirm whether the product is what you want?

Answer: If possible, please attach a reference picture to avoid misunderstanding, or attach any link to our website for better understanding.

5. How to control quality?

A: We have our own experienced QC team, each order will be strictly inspected and tested before shipment.

6. Fast delivery time:

A: Usually production takes 25 days. If we have the stock size you requested, it only takes 3-5 days.

7. Competitive price:

A: Our factory can provide you with the lowest price and sell directly to customers, no distributors are needed!
