HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
HD 10mm Led Display Outdoor Digital Signage Displays 960mm×960mm×130mm
Specifications
Brand Name :
Vgeoo
Model Number :
VG-RD P10
Certification :
Ce/ROHS/FCC/
Place of Origin :
China
MOQ :
1 Sq.m
Delivery Time :
7 days
Packaging Details :
Plywood case / Flight case / Carton box
product name :
P10 Outdoor Full color LED Display
Pixel Pitch :
10mm
Pixel Configuration :
1R1G1B/SMD3535
Density :
10,000 pixel/m2
Moduel Size(L×W)mm :
320mm×160mm
Driving IC :
MBI5124 or ICN 2038S
Brightness :
7500CD /㎡
Contrast :
1000:1
Description

P10 Outdoor Full color LED Display 960mm×960mm×130mm

Description:

  • Easy for assembling and connection with the connector added;
  • Easy for installation;
  • LED cabinet now design is iron material it would save much of your cost from make to Aluminum cabinet material;
  • adopt efficient optical fiber transmission system, effectively reduce the signal delay phenomenon, to assure the consistence of part of the game screen showing;
  • Internally installed power supplier; using the high light SMD 3in1 LED, with a better color combination, made the image more colorful;

P10 Outdoor Full color LED Display Specification

NO: Product Name Specification
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B/SMD3535
3 Density 10,000 pixel/m2

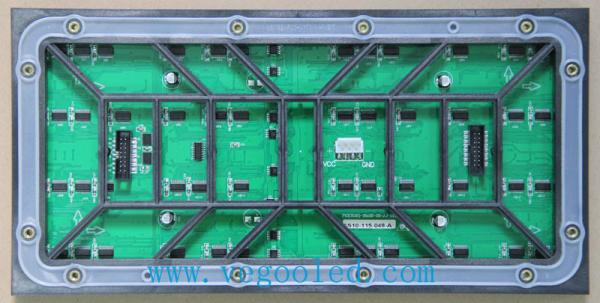

4 Moduel Size(L×W)mm 320mm×160mm
5 Cabinet Size(L×W×H)mm 960mm×960mm×130mm
6 Module Resolution 32×16
7 Cabinet Resolution 96×96
8 Driving Method 1/ 2 Scan
9 Driving IC MBI5124 or ICN 2038S
10 Brightness 7500CD /㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power: ＜700W
14 Average power: ＜300W
15 Module Weight 0.28kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 85-264V
36 Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

Customer Service

1) Guarantee Time: Within one year after delivery form factory

2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )

3) Maintenance Mode :

By returned maintenance , through express or by other way

4) Response time for maintenance :

1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;

2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;

3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
