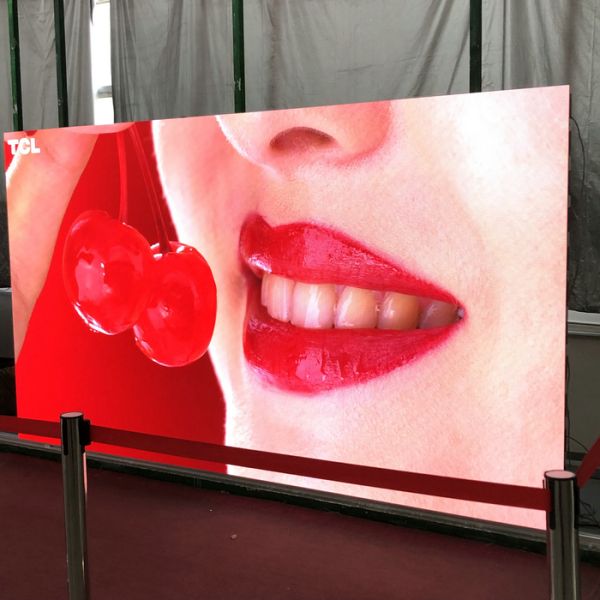

Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame
Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame
Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame
Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame
Specifications
Brand Name :
Vegoo
Model Number :
VG-FD 3
Certification :
CE/ROHS/FCC/
Place of Origin :
China
MOQ :
negotiation
Supply Ability :
3000 Sq.m / month
Delivery Time :
15 working days
Packaging Details :
Plywood case / Flight case / Carton box
Price :
negotiation
Payment Terms :
L/C, T/T
product name :
Indoor Full Color LED Display
Bezel :
Narrow Bezel
Pixel Pitch :
6mm
Frame :
ALuminum Alloy Frame
Moduel Size(L×W)mm :
192mm×192mm
Brightness :
1100cd/㎡
Description

Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame

Indoor Full Color LED Display Screen Quick Detail:


• Easy configuration and maintenance
• Lightweight for easy installation
• High refreshment and large viewing angle
• Great for large indoor advertising

The Opposite Calibration Curve

With Eight Optional Gamma Calibration Curve

Users can choose the recommended curve or adjust it based on actual situation

Indoor Full Color LED Display Screen Specification:

Product Name Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame
Pixel Pitch 6mm
Pixel Configuration 1R1G1B/SMD3528 White lamp
Density 27,777 pixel/m2
Moduel Size(L×W)mm 192mm×192mm
Cabinet Size(L×W×H)mm 576mm×576mm×90mm
Module Resolution 32×32
Cabinet Resolution 96×96
Driving Method 1/16 Scan
Driving IC MBI5124
Brightness 1100cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:＜540W
Average power: ＜200W
Module Weight 0.244kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7

Service and Guarantees

Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible

Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .

Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .

Indoor Full Color LED Display Screen Details

Narrow Bezel Indoor Full Color LED Display Screen With ALuminum Alloy Frame
